Specifications
8CH 3G GPS Mobile DVR1.3G/GPS/WIFI Optional 8CH Mobile DVR
2.IOS/Android APP Support
3.OEM/ODM Welcome
4.12 Months warra
8 CH Mobile DVR Quick Details
|
Produce Name:Richmor H.264 D1 3G GPS G-sensor 8CH Mobile Digital Video Recorder DVR |
Brand Name:Richmor/OEM | Storage:HDD/SSD/SD Card optional |
| Place of Origin:Guangdong China (Mainland) | Features:Industrial design 3G GPS 8CH Mobile DVR | Model Number:RCM-MDR9808SDG |
| Language:English/Chinese/Customized | Audio Input:Support 8CH Audio Input |
Mobile Phone APP:Support IOS/Android Remote real time monitor |
|
Usage:8CH Mobile DVR for School Bus, Oil Tanker etc Mobile Car Security |
Alarm Sensor:Support 8CH Alarm input for kinds of Alarm Recording | Video Input:Support 8CH Video Input |
| Warranty:18 Months Warranty time, factory source |
Made in China High Resolution 8ch school bus mobile dvr Picture Details
8CH Mobile DVR Features:
Items |
Parameters |
Specifications |
||
|
System |
Language |
English |
||
Operation Menu |
Graphical User interface(OSD menu) |
|||
Password |
Users Password/ Administrator Password |
|||
|
Video |
Video input |
8-CH video input 1.0Vp-p,75Ω |
||
Video output |
1-CH composite video output 1.0Vp-p,75Ω 1 VGA output |
|||
Video Display |
1 channel or synchronous 8channels |
|||
Video Singal |
PAL/NTSC |
|||
Video Compression |
H.264 Main profile |
|||
Audio |
Audio input & Output |
4-ch Audio input; 1-ch Audio Output |
||
Recording mode |
Audio & Video sync Recording |
|||
|
Image Processing & Storage
|
Image Resolution |
4 D1 , 4 HD1, 4 CIF options |
||
Audio Compression |
ADPCM, G.726, G.711 Options |
|||
Audio Bit rate |
8KB/s |
|||
Storage |
Support One HDD Max 1TB Support One SD Card Backup when HDD is error. Support Mirror Recording with a expand HDD |
|||
Alarm |
Alarm input |
8 digital level inputs,below 4V is low level alarm,above 4V are high level alarm |
||
Alarm output |
2 digital level outputs,output voltage level:12V |
|||
Communication Interface |
RS485 Interface |
Support 3-RS485 interface |
||
RS232 Interface |
Support 1-RS232 interface |
|||
WIFI Interface |
Support 802.11b/g/n |
|||
Extended interface |
Support connecting LCD control panel via extended interface |
|||
3G |
HSUPA/HSDPA/WCDMA/EVDO Optional |
|||
GPS |
Built-in GPS module, Geographic coordinates , speed can be recorded in hard disk and also can be transmitted to CMS. |
|||
Software |
Playback |
Playback Software is used to playback video file, GPS track, G-sensor, and alarm information. |
||
CMS |
Center vehicle management software platform, it can manage 20000 devices at same time, if need to manager more units, add more servers to realize it. |
|||
Software Upgrade |
Support Flash disk to upgrade the firmware |
|||
Richmor H.264 D1 3G GPS G-sensor 8CH Mobile Digital Video Recorder DVR
Functions of 8ch mobile dvr
8ch mobile dvr Product Application
8CH Mobile DVR support Real time Monitoring WITH Android / IOS

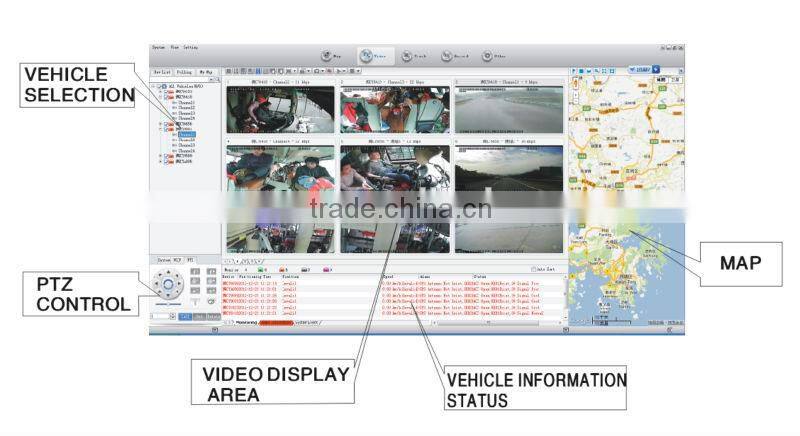

8CH Mobile DVR support FREE Client Software with play back & Analysis
8CH Mobile DVR packing with Standalone Carton
Customers Visit Our Factory Around the World
Our company specializes in various Multi-Function Mobile DVR CAR DVR ,CCTV DVR ,CAR RECORDER ,
all our products support 3GWIFI GPSGPRSG-SENSOR .
Welcome yor enquires.Manufacturer source will give you competitive price . warmly contact me !!!
Richmor H.264 D1 3g Gps G-sensor 8ch Mobile Digital Video Recorder Dvr,
