auto high efficiency cheap gypsum powder production line
- 0 per Month
- according to the client
- T/T
Product Details
Condition: | New | Application: | make gypsum powder | Automatic Grade: | Automatic |
Production Capacity: | 12000tons~300000tons/year | Place of Origin: | Shandong, China | Dimension(L*W*H): | accoding to the capacity |
Weight: | accoding to the capacity | Features: | New,Advacend technology | Certification: | CE;BV;ISO9001:2008 |
Warranty: | 3 years after putting into production | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Quick Details
Processing: | Condition: | Place of Origin: | |||
Brand Name: | Voltage: | Weight: | |||
Certification: | Warranty: | After-sales Service Provided: | |||
fuel: |
Packaging & Delivery
Packaging Details: | standard package for long distance transport |
Delivery Detail: | 2-3 month |
Specifications
Automatic Gypsum Board Production Line/Making Machine
1.ISO9001,CE
2.SGS,CIQ check
2.8 years experience
3.Latest technology

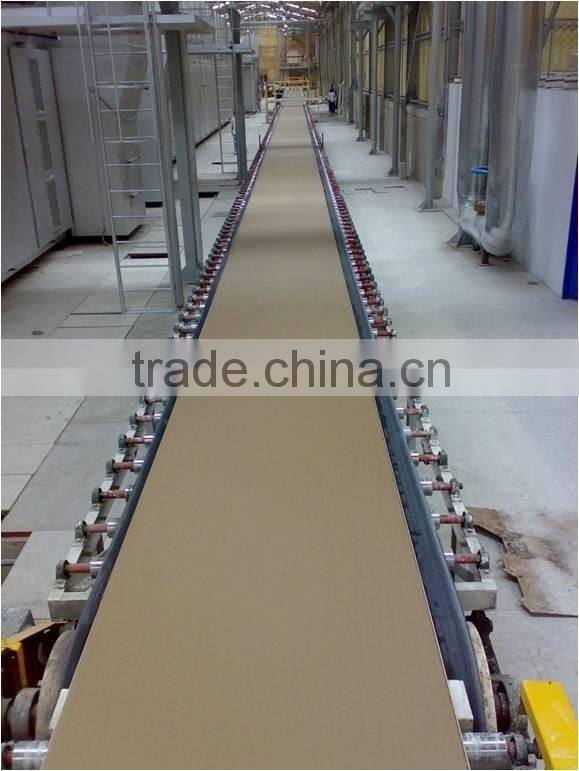

Gypsum Board Production Line/Making Machine
The gypsum board production line take gypsum plaster for building purpose as the main raw material, mix it with chemical additives and water, continue pours into the space between two shielding tissue, through edge sealing, pressure, coagulation, cut, dry and so on, which make the light building materials. The characteristic of our gypsum board production line include low energy consumption, no pollution and quick construction.
Annual Capacity | 4 million to 30 million Square meters |
Automation | Full automation or Semi automation |
Certificate | ISO9001,CE |
Drying System | Hot air or Thermal oil |
Fuel Variety | coal, natural gas, diesel oil, heavy oil, etc. |
Production process:
Dosing Section---Forming Section---Cutting Section---drying Section---Edge Trimming Section---Stacking Section
Main raw materials of gypsum board:
Construction gypsum powder, modified starch, protective paper, foaming agent, water, white latex. Fiberglass and paper pulp
Main systems of gypsum board production line:
1. Paper Supply System; 2. Gypsum Powder Supply System; 3. Water Supply System;
4. Foaming System; 5. Forming System; 6. Conveying System;
7. Drying System; 8. Heating System; 9. Size Fixing System;
10. Dust Removal System; 11. Sealing System; 12. Control System
Paper supply system It adopts special pneumatic shaft and magnetic powder brake. The high accuracy paper connecting way and high precision electro-hydraulic alignment device, along with the automatic marking device played very big roles for shaping, and ensured the good appearance quality. |
Gypsum powder supply system It takes the exclusive impeller feeder and high precision weighing belt as the core of powder feeding. Thus it ensured normal supply of the gypsum powder. Moreover, it contains series of powder additive storages, discharging and metering feeding systems; glass fiber cutting and its metering feeding systems.etc. |
Forming system The vertical mixer and the pneumatic forming device are made of special wearable stainless steels which enhance the system’s wearable ability and prolonged its life span. The vertical mixer got pin type, none-pin type and other types to choose. |
Drying system The drying system is the core of the whole production line and it affects the quality and the energy consumption of the products. It has interior muti-layer coiler heat releasing type, external finned heat exchanging type, and hot air direct drying type |
Dust removal system |
Control system All of the three control stations adopt PLC control system. AC contactor and drive device chose reliable brand, and it also uses the contact-less equipments such as frequency converter, photoelectric sensor etc. Insured the reliable operation and realized the long-term and continuous fully automatic running of the gypsum board production line. |
Finished gypsum board Specification
Dimension of gypsum board:
Thickness: 7mm-22mm
width: 1200mm or 1220mm
length: 1800mm~3600mm
Types of Gypsum Board
a) Common paper surface gypsum board
b) Fireproof paper surface gypsum board (H)
c) Waterproof paper surface gypsum board (S)
Advantages of Gypsum Board
1) Product quality: product quality is priority to the international standard GB/T9775-1999 (equal to European Standard).
2) The gypsum board which produced by the gypsum board production line is heat-resistant, fire-resistant, insulated, light, nonpoisonous, little pollution, adjusting the humidity of the room.
Our Service
1. Our company has professional installation & debug teams. We will install and debug the production line at the customers’ place until the equipment produces the qualified products.
2. We supply the accessories all the year round. The guarantee time of the equipment is one year.
3. We are responsible for the technical consultation and service all the year around and solve all kinds of technical problems at any time.
4. We can help the customer to do the consignment and the relevant procedure for import and export.
5. Our company will supply the information of the seller for all kinds of raw material and relevant information.
