Specifications
Water slot milling machine for upvc windows and door1.Smoothly running
2.Professional manufacturer
3.ISO9001/CC

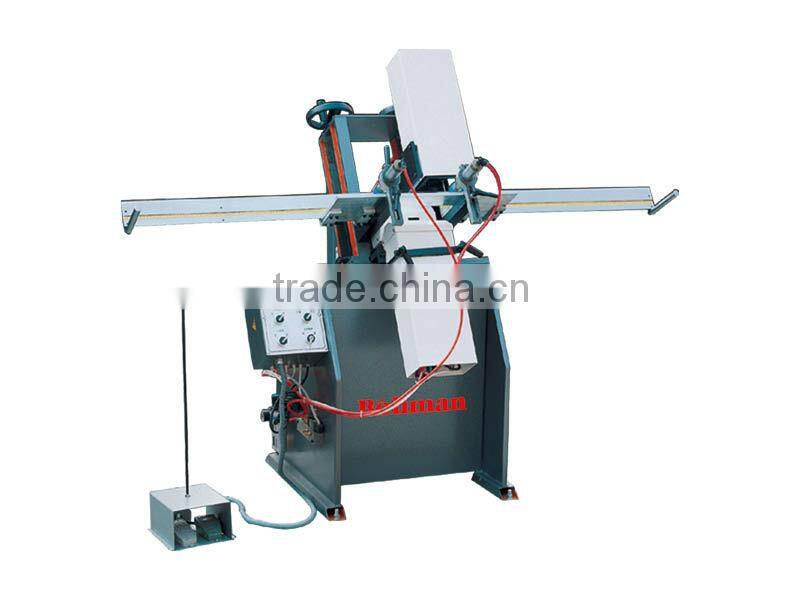

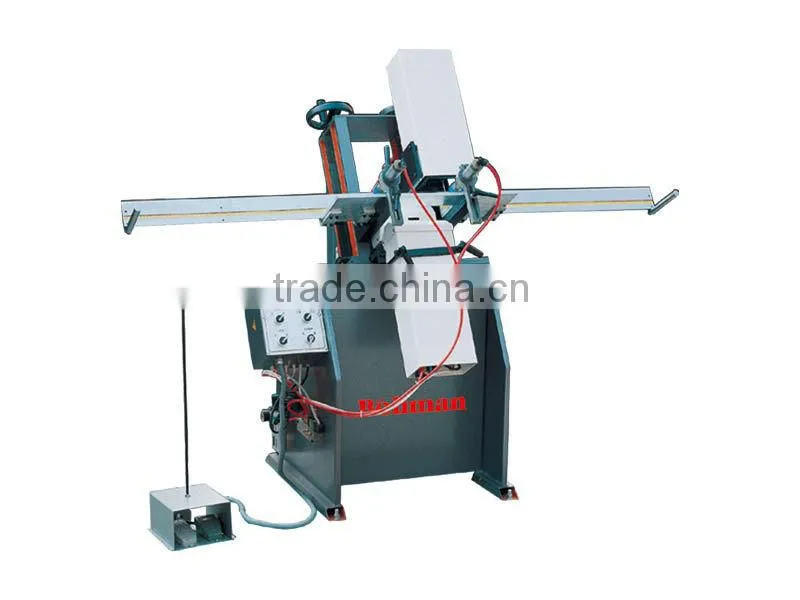

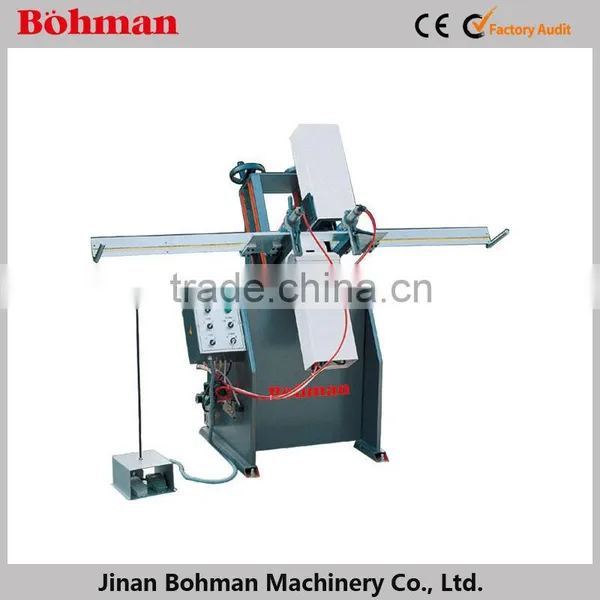

Water slot milling machine for upvc windows and door
Production Description
Production Name:Water-slot milling machine
♦Professional use in milling the water slot and the balanced holes
of air pressure of win-door in PVC profile.
♦ Adopt the modularization structure design, there are four milling
Features: heads which can be freely selected working in individually or
combinative, is easy to operate
♦ The lower head or horizontal head can be comminated with the
upper and down head to process in high efficiency for the
balancing grooves which in the both end of profile.
♦ Adopt gas-liquid device feeding, smoothly running
Technical Parameters:
Power Supply | 220V 50Hz |
Total Power | 1.14Kw |
Operation Air | 0.5~0.8Mpa |
Air Consumption | 120L/min |
Machine head electromotor revs. | 25000r/min |
Diameter of Milling Cutter | Φ4mm Φ5mm |
Max Milling Depth | 30mm |
Max. Milling Width | 4-5mm |
Milling length | 0-60mm |
Contour Dimension | 2100X860X1450mm |
Weight | 250kg |
Details Show
Packing Details
♦ Plastic Film Package & Wooden Package:
Each product will be carefully packed with plastic film package,to make sure it will be arrived safety.
If choose wooden package,After inspection the goods are packed in plastic film package and then carefully packed in wooden cartons.
About Us

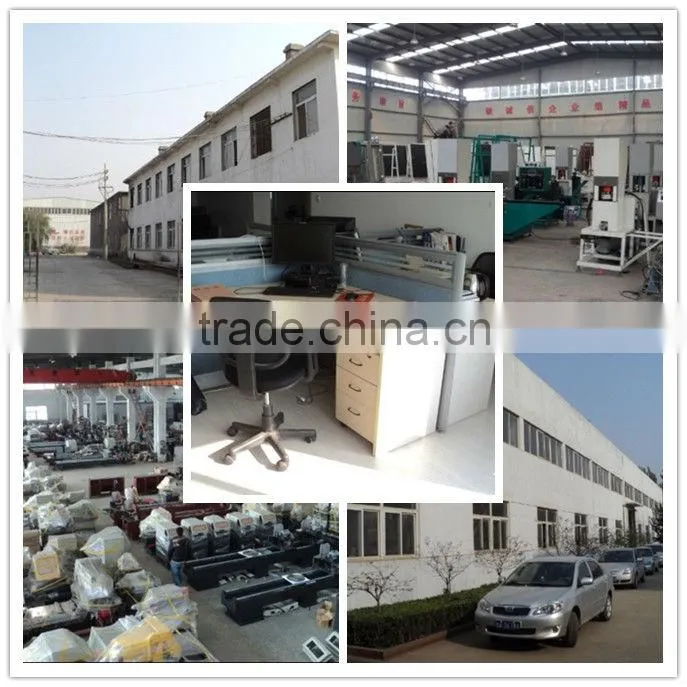

Factory&Office
BOHMAN--China's top manufacturer and supplier of Insulating Glass Processing Machines,Aluminum&UPVC Window and Door Processing Machines , CNC Router, Laser Engraving Cutting Machine, with an annual sales of USD2,000, 000.
BOHMAN--Always trying to develop new types of Insulating Glass Processing Equipments, Aluminum &UPVC Window and Door Processing Equipments,CNC Router, Laser Engraving Cutting Machine.
♦ Well-educated and experienced international sales.
♦ Professional engineers in our R&D deparment.
♦ CE Certification and BV Certification.
Some Spare Parts
Payment Terms
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union
Warranty Terms
All equipments is 12 months guarantee,lifetime maintance.
After Sale Service
Generally speaking,our Insulating Glass Processing Equipments need to install by our professional technician,Aluminum&UPVC Windows and Doors Processing Equipments is no need.
If buyers need to install by our technician,the installation clause as follows:
INSTALLATION CHARGE: USD40/day for one worker for installation and training.Buyer supply hotel,food,ticket.Our technical worker need about 3-10 days for installation till all machines is good.When our worker finished all installation,buyer have to pay for installation charger to our worker according to $40 per day.Then our worker will teach your worker how to operate all machines correctly.
