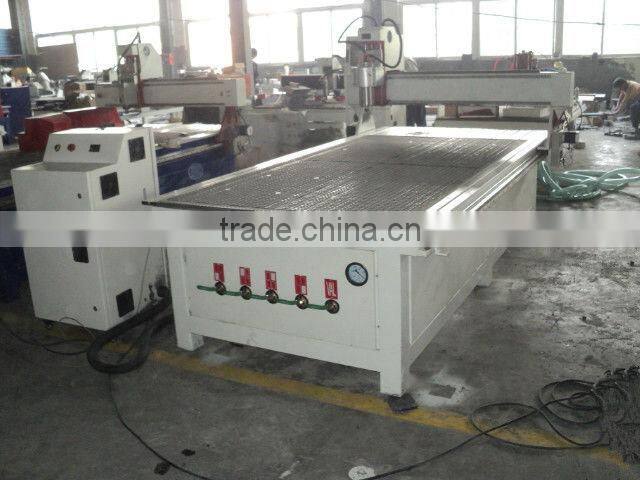

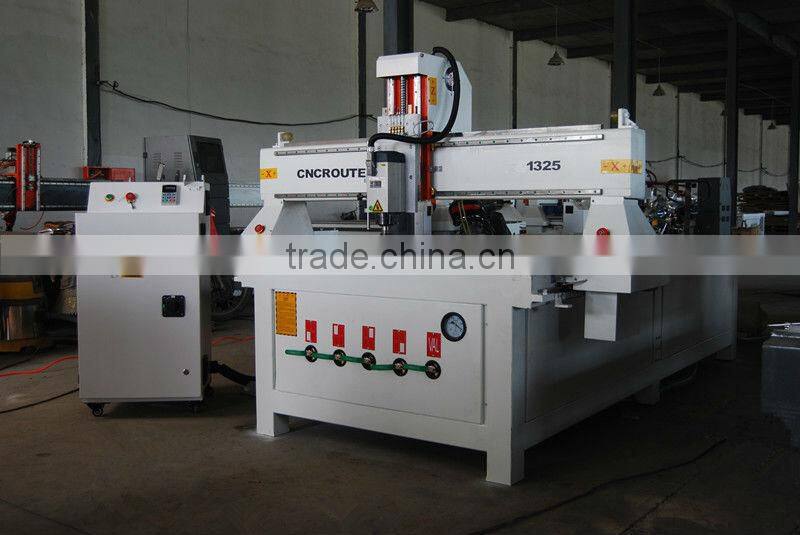

PCB Board CNC Router

Specifications

PCB Board CNC Router
1. Used for wood
2. Stepper or Servo motor

      PCB Board CNC Router



1. Contact Information

Alice Meng

+86-13953166178

bohman_alice-----yahoo-----cn





2. Technical Parameters



No.	Function	Parameters
1	Working Size	1300*2500*200 mm
2	Table Size	1480*3050 mm
3	Table Structure	Vacuum Table
4	Transmission	X,Y  Rack Pinion      Z Ball Screw
5	Speed	Max Travelling Speed: 40000 mm/min Max Working Speed: 20000 mm/min
6	Spindle Power	water cooling spindle
7	Spindle Speed	0-24000 r/min
8	Driving System	Stepper Motor or Servo Motor
9	Working Voltage	AC380V /3PH /50Hz
10	Operating System	NC STUDIO / DSP
11	Optional	Taiwan SYNTEC



3. Stevndard Features

• With hard steel structure, fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration.
• With the vacuum holding way and dust collector, the machine is qualified for mass-producting of furniture.
• We use the best quality parts for the CNC routers.
• Imported high-precision ball screw gap, smooth brushes spindle, low noise, strong cutting ability, to ensure the long time working.
• High-performance driven motor to ensure that the machines high speed and accuracy
• Designer perectly, select the best machine accessories, to minimize the failure rate preferred
