Woodworking Machine

Woodworking Machine thumbnail-1
Woodworking Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other
Use:
Woodworking
Style:
Other
Contact Supplier Request Quote Chat Now
Tengzhou Uni-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other
Use Woodworking
Style Other
Place of Origin China
Model Number MJ2325C

Specifications

woodworking machine

woodworking machine

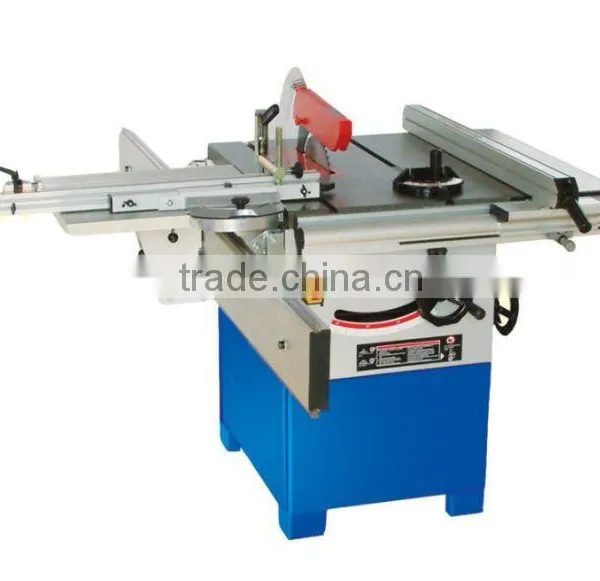

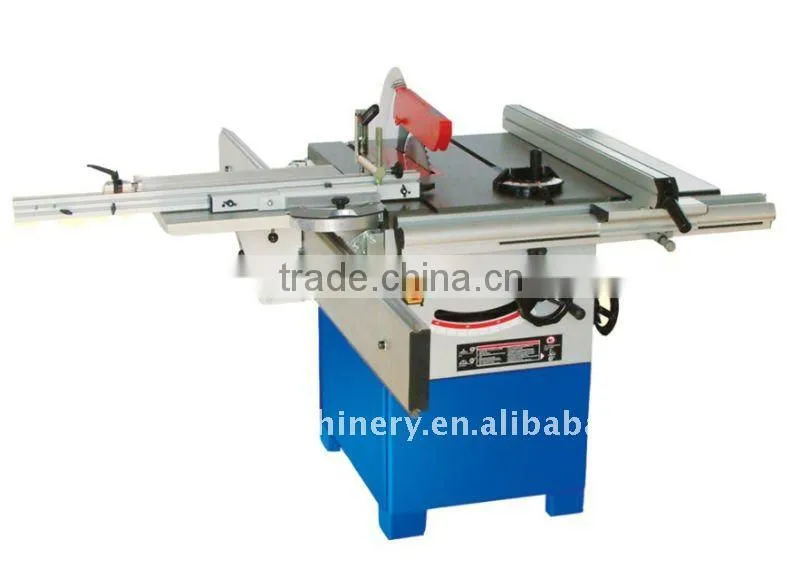

MJ2325CWoodworking machine

Feature:

u       Large ribbed anodised aluminium sliding table running on upper andlower steel bars widely spread for stability.

u       Solid aluminium crosscut fence with eccentric clamp, swivels +/-45°.

u       Note that the sawguard with dust takeoff rises, falls, and tilts with the riving knife - meeting NZ safety rules.

u       Precision rip fence setting by rack & pinion.

u       This is included but you don't have to fit it. Some people prefer to set the fence by hand.

u       Crosscut fence extends to 1.5m.

u       Clear scale.

u       Solid steel flip stop with micro adjustment



1Woodworking machine

2Woodworking machine

3Woodworking machine

u        Large ribbed anodised aluminium sliding table running on upper and lower steel bars widely spread for stability.

u        Solid aluminium crosscut fence with eccentric clamp, swivels +/-45°.

u        Note that the sawguard with dust takeoff rises, falls, and tilts with the riving knife - meeting NZ safety rules.

u        Crosscut fence extends to 1.5m.

u        Clear scale.

u        Solid steel flip stop with micro adjustment

u       Precision rip fence setting by rack & pinion.

u       This is included but you don't have to fit it.

u       Some people prefer to set the fence by hand.





Model

MJ2325C

Code No.

302004

Table Size

900mm wide x 800mm deep

Table Construction

37mm thick webbed cast iron

Saw blade

254mm x 25.4mm bore - it's a commonly available size

Saw Speed

3000 rpm

Max Cutting Depth at 0°

75mm. Rise & fall by large smooth-running handwheel, with height lock

Max Cutting Depth at 45°

60mm. Tilt runs freely on cast iron trurnnions. Easy reading (1° = 5mm)

Max Distance Saw to Rip Fence

630mm. Rips a 1220mm sheet in half. (Any bigger is just a nuisance)

Max Crosscut capacity at 90°

750mm

Dust Extraction Take-off

100mm diameter + 30mm takeoff at saw hood

Motor

Input 3hp single phase 50Hz

Net Weight (approx)

200kg - heavy construction absorbs vibration for high quality cutting
