Specifications
B5020D slotting machineWorktable can be vertical, horizontal and rotary
Automatic and manual

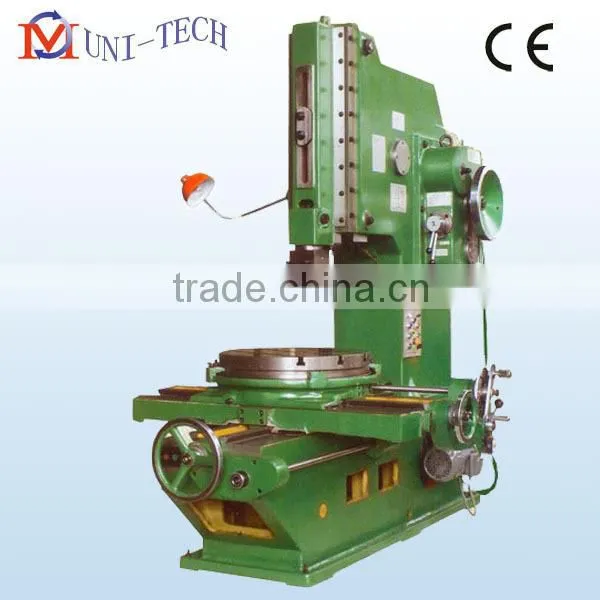

Slotting machine B5020
is used for slotting the flat and formed surfaces, keyways, etc.
Specification:
Work range |
B5020 |
Max. slotting length |
200MM |
Max. dimension of work piece(l*h) |
485*200mm |
Max. weight of work piece |
400kg |
Max. cutting force |
5500N |
No. of ram strokes per minute |
32,50,80,125 |
vertical adjustment of ram |
230mm |
Inclination of ram |
0-8° |
Distance between tool bolding surface and column front |
485mm |
Max. tool shank size(w*h) |
25*40mm |
Table diameter |
500mm |
Distance between table surface and low end of ram |
320mm |
Max. longitudinal travel of table |
500mm |
Max. cross travel of table |
500mm |
Range of table longitudinal and cross power feeds |
0.08-1.21mm |
Range of table rotary power feeds |
0.052°-0.783deg |
Power of main drive motor |
3kw |
Rotating speed of main drive motor |
1430rpm |
Overall dimensions(L*W*H) |
1945*1325*1980mm |
Weight(approx) |
2400kg |
The production process :
Batch production:
Our product is done in the standard of normal workshop, large-scale production of high quality, ensure high efficiency and ensure product quality.
