Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > AHD HD 1080P HD HVR Three in One: Combines the Function of DVR/HVR/NVR Together

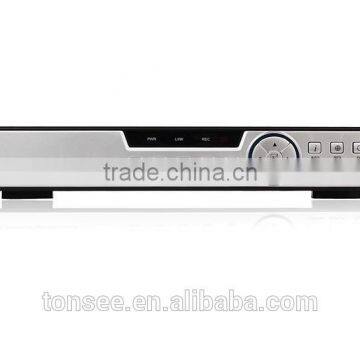

AHD HD 1080P HD HVR Three in One: Combines the Function of DVR/HVR/NVR Together

AHD HD 1080P HD HVR Three in One: Combines the Function of DVR/HVR/NVR Together thumbnail-1
AHD HD 1080P HD HVR Three in One: Combines the Function of DVR/HVR/NVR Together thumbnail-2
AHD HD 1080P HD HVR Three in One: Combines the Function of DVR/HVR/NVR Together thumbnail-3
AHD HD 1080P HD HVR Three in One: Combines the Function of DVR/HVR/NVR Together photo-1
AHD HD 1080P HD HVR Three in One: Combines the Function of DVR/HVR/NVR Together photo-2
AHD HD 1080P HD HVR Three in One: Combines the Function of DVR/HVR/NVR Together photo-3
US$ 55 - 56 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
bessky, Bessky (OEM)
Model Number:
BE-8104HA
Contact Supplier Request Quote Chat Now
Shenzhen Tonsee Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name bessky, Bessky (OEM)
Model Number BE-8104HA

AHD HD 1080P HD HVR Three in one: Combines the function of DVR/HVR/NVR together

Product Description





 AHD HD 1080P HD HVR Three in one: Combines the function of DVR/HVR/NVR togetherAHD HD 1080P HD HVR Three in one: Combines the function of DVR/HVR/NVR together





Model

BE-8104HA

BE-8104H

System

Main processor

Industrial grade embedded micro controller chip Huawei HIS chipset Hi3531

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.

Display

Operation interface

16 bit real color GUI interface support mouse operation

Display screen

(Take all analog input as an example, others are depended on the selected channel mode)

1/4 screen

Video

Image encode

H.264(High Profile)

Monitor quality

VGA:1080P ;HDMI:1080P

Playback quality

Max support 1080P under HVR and NVR mode;Max support AHD 1080P under DVR mode:

Encode capability



4CH AHD 1080P real time(DVR mode)

4ch *1080P@15fps

4ch *1080P@30fps



Decode capability



4CH AHD 1080P real time(DVR mode)

4ch *1080P@15fps

4ch *1080P@30fps



Multi-mode video input

DVR mode :4CH*1080P/4CH*720P

HVR mode:2CH*1080P(analog)+2CH*1080P(network)/4CH*720P+4CH*720P

NVR mode:4CH*1080P/1CH*1080P+8CH*720P/20CH*960H

Motion detection

Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)

Audio

Audio compression

G.711A

Record and playback



Record mode

Manual,alarm,motion detection,timing

Local playback

1-4ch playback synchronously; Under the mode of DVR, Max support 4CH AHD 1080P real time playback synchronously

Video search

Time,date,event,channel search

Storage and back up

Space occupation

Video:1080P 20~30G/day*channel,720P:20G/day*channel;960H:12~20G/day*channel
 audio:691.2M/day*channel

Video storage

Local HDD ,Network

Back up mode

Network backup,USB portable HDD,USB DVD-RW

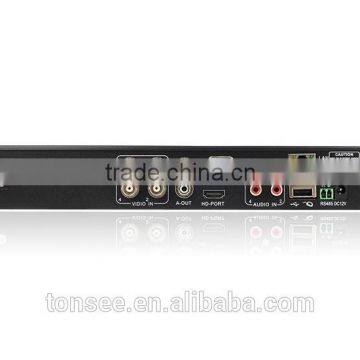

Interface

Video input

4CH BNC

Video output

1CH VGA,1CH HDMI

Audio input

4CH RCA

Audio output

1CH RCA

Alarm input

NO

NO

Alarm output

NO

NO

Network port

RJ45 10M/100M self-adaptive Ethernet port

PTZ control

1 RS485;support multi kinds of PTZ Protocol

USB port

2*USB2.0

HDD port

1 SATA(each max support 4TB)

Wireless port

3G,WIFI(extension via USB port)

other

Tour

Yes

Remote controller

Yes

Power

12V/2A

Dimension

260(Length) x 221(Width) x 44(Height)







Packaging & Shipping

Packaging:

  AHD HD 1080P HD HVR Three in one: Combines the function of DVR/HVR/NVR together



Shipping:

1. We have strong cooperation with DHL, Fedex, TNT, UPS, EMS.

2. You can also choose your own shipping forwarder.



Our Services



MOQ:

1. Sample order >=1pcs
2. Normal Order >=10pcs per model after sample test

OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. The warranty time starts from the shipping date from our factory

Price Term:

FOB Shenzhen

Payment:

T/T, Paypal, Western Union, MoneyGram, L/C are all available
