Double Column Hydraulic Metal Band Sawing Machines GHS4228,high-performance
- Qingdao
- T/T Money Gram
You May Like
-
Double Column Hydraulic Metal Band Saws GHS4228,metal Saws
-
Double Column Hydraulic Metal Band Saws GHS4228,band
-
Double Column Hydraulic Metal Band Saws GHS4228,hydraulic Metal Saws
-
Double Column Hydraulic Metal Band Saws GHS4228,hydraulic Band Saws
-
Double Column Hydraulic Metal Band Saw Machine GHS4228,metal Saw
-
Double Column Hydraulic Metal Band Saw Machine GHS4228,band Saw
Product Details
| Condition | New | Type | Band Saw | |
| Use | Metal Cutting | Style | Horizontal | |
| Place of Origin | Shandong, China | Brand Name | UNI-TECH | |
| Model Number | GHS4228 | Usage | Metal cutting | |
| Voltage | 220V,380V,400V | Power(W) | 750w | |
| Dimension(L*W*H) | 1860x2400x1400mm | Weight | 1080kg | |
| Certification | CE,ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Double column hydraulic metal band sawing machines GHS4228 high-performance sawing machines1. PLC control
2. CE,ISO9001

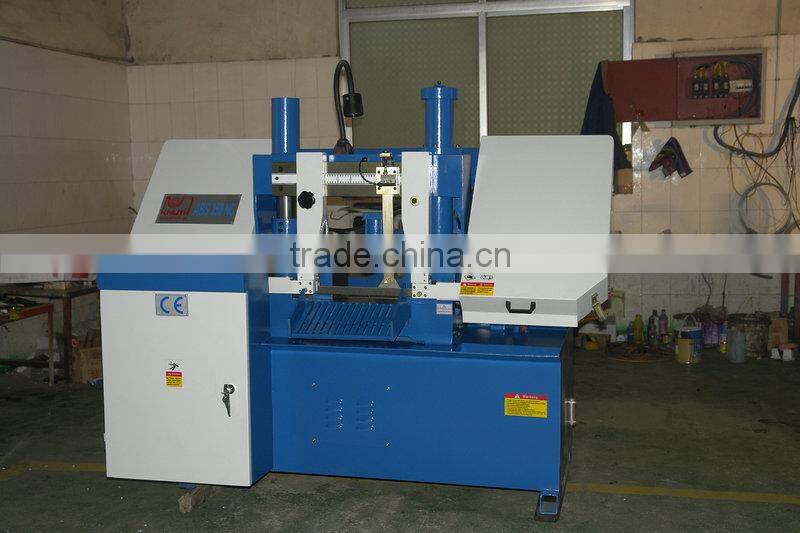

Double column hydraulic metal band sawing machines GHS4228
high-performance sawing machines
Main features:
1. Touch screen type control panel, sawing parameters digitalsetting 5 groups of sawing data;
2. PLC controller, flexible setting andconversion, combination between hand operation and automatic operation;
3. Double columnstructure vertical lifting high stability;
4. Cutting speed adopts hydraulic control, stepless speed regulation;
5. Suited to batch saw cutting materials.
MODEL NO | GHS4228 | GHS4235 |
Cutting capacity | 280-280×280 | 350-350×350 |
Blade size | 3505×27×0.9 | 4115×34×1.1 |
Blade speed | 27 45 69 | 27 45 69 |
Clamping type | Hydraulic | Hydraulic |
Main motor power | 3 | 3 |
Motor hydraulic | 0.75 | 0.75 |
Coolant pump | 0.04 | 0.04 |
Overall dimension | 1860×2400×1400 | 2000×2500×1500 |
Standard equipment: PLC control, 1 saw blade belt, hydraulic workpiece clamping, bundle vise, material support stand, Coolant system, Work lamp, Operator manual.
Optional equipment: Automatic blade breakage control, Fast drop protection device, Hydraulic blade tension, Automatic chip removal device, Various blade linear speed, Blade protection covers, Wheel cover opening protection, CE standard electrical equipment.
Our machines has passed the strict CE certification and had already got the CE certificate. Our factory also get the ISO certificate.

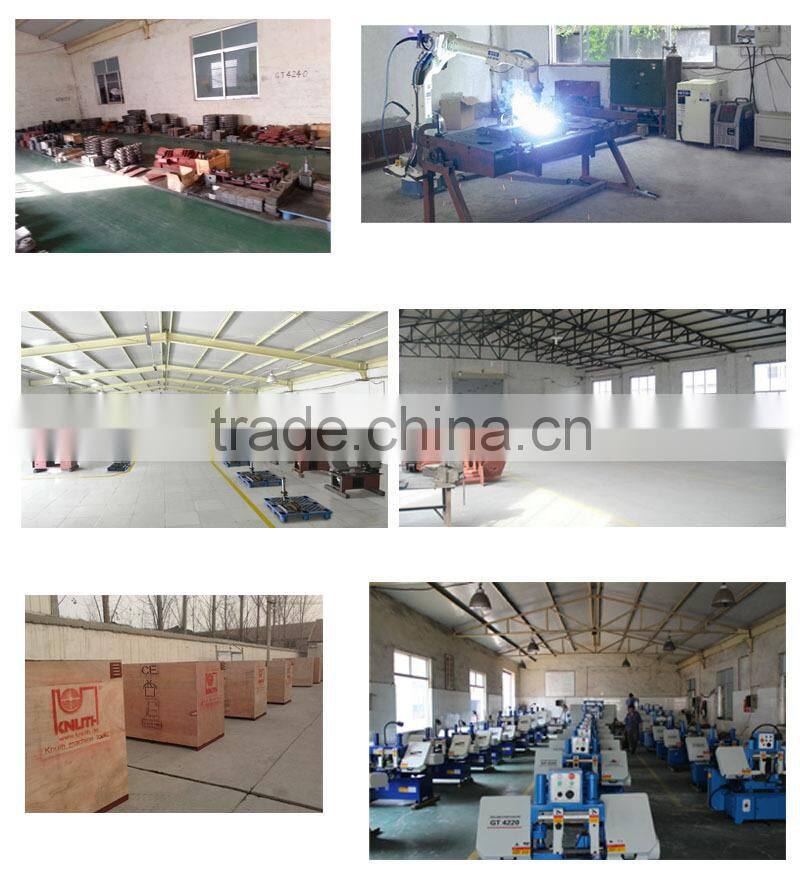

Production shipments rigorous process
