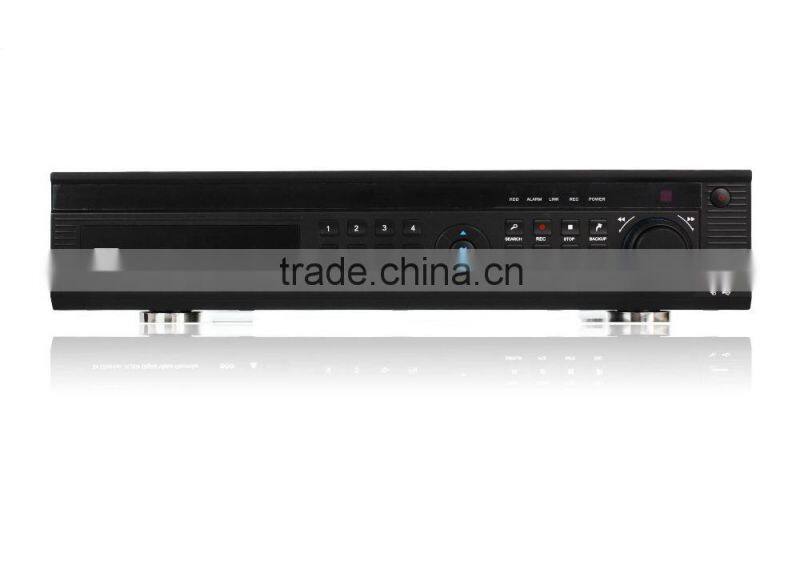

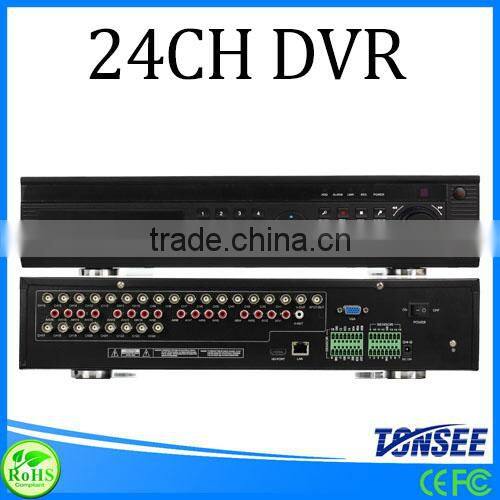

Top ten 24 ch cctv dvr,Mobile Dvr,3g Gps Mobile Dvr 4g Lte Wireless Router

Support all kinds of mobile phone monitoring

Support VGA,HDMI output. high definition output.VGA&HDMI support 1080P output

Support for multiple web browsers(IE,Chrome,Firefox,Safari)

Compression algorithm up to H.264 Main Profile.The advanced space-time filtering techniques make the code stream reduced by more than 30%

Support smart mobile and network (IE&Firefox&Safari&Chrome) real time remotely monitoring,such as Android

Model

BE-9924HD

System

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously,

multi-channel real-time playback,

multi-channel multi-user network operation, USB back up.

Operation interface

16 bit real color GUI interface support mouse operation

Display

Display screen

(Take all analog input as an example,

others are depended on the selected channel mode)

Video standard

1/4/8/9/16/24screen

PAL(625 lines,50fps);NTSC(525lines,60fps)

Video

Image encode

H.264(High Profile)

Monitor quality

Monitor:D1;VGA:1080P ;HDMI:1080P

Playback quality

Max support 1080P under HVR and NVR mode;

Max support D1 under DVR mode

Encode capability

8CH D1+16CH CIF real time(DVR mode)

Decode capability

8CH D1+8CH CIF real time(DVR mode)

Multi-mode video input

DVR mode : 8*D1+16*CIF

Motion detection

Each channel can set 192(16*12)detection area;

can set multi-level of flexibility

(for local analog channel only)

Audio compression

G.711A

Audio

Record mode

Manual,alarm,motion detection,timing

Record and playback

Local playback

Max support 8CH D1 real time

 playback synchronously((8*D1+8*CIF@25fps)DVR mode)

Video search

Time,date,event,channel search

Space occupation

Video:CIF 4~5G/day*channel, D1 8~10G/day*channel;
 audio:691.2M/day*channel

Storage and back up

Video storage

Local HDD ,Network

Back up mode

Network backup,USB portable HDD,USB DVD-RW

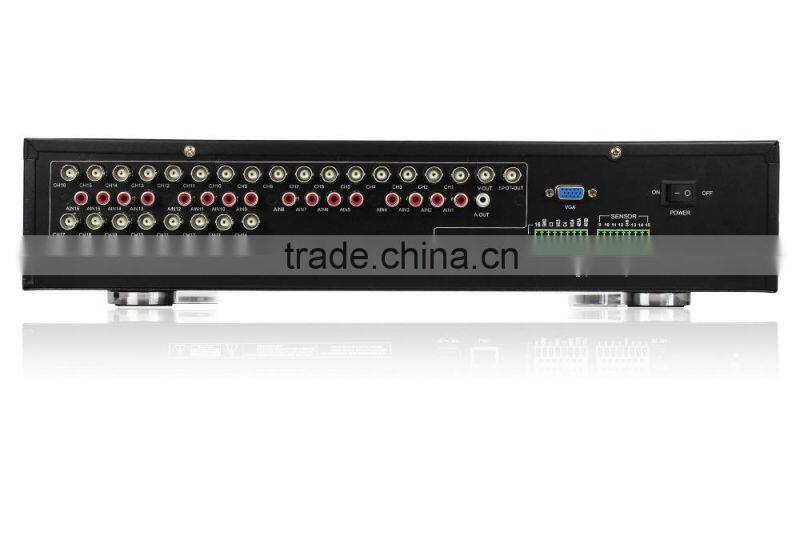

Video input

24CH BNC

Interface

Video output

2CH BNC,1CH VGA,1CH HDMI

Audio input

16CH RCA

Audio output

1CH RCA

Alarm input

16CH

Alarm output

4CH

Network port

RJ45 1000M self-adaptive Ethernet port

PTZ control

1 RS485;support multi kinds of PTZ Protocol

USB port

2*USB2.0

HDD port

4 SATA

Wireless port

3G,WIFI(extension via USB port)

Tour

Yes

other

Remote controller

Yes

Power

12V

Dimension

430(Length) x 370(Width) x 97(Height)
