Descriptions:
| Item name | Low Cost ISO18000-6C RFID UHF Tag |
| Process | Flip-Chip |
| Standard | EPC Gen2 (ISO/IEC 18000-6C) |
| Frequency | UHF 860-960MHz |

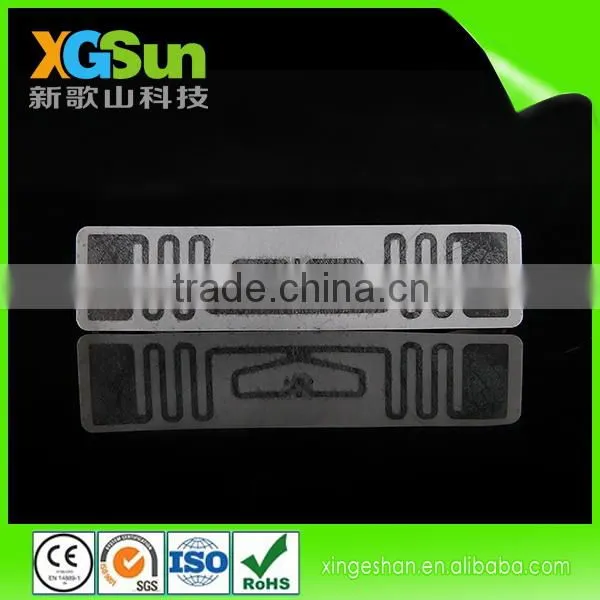

| Antenna | Aluminum etching antenna |
| Chip | Alien H3 |
|
Available Materials |
High Quality PVC / PET / PS / Paper Wet Inlay (Adhesive), Dry Inlay (Non-Adhesive) Adhesive labels of 0.55mm thickness on roll PET Transparent card of 0.55mm thickness |
| Label Dimension | can be customized |
| Reading Distance | 1-6m(reader dependent or antenna design) |
| Work Temperature | 20 to 80°c |
| R/W Cycles | up to 100000 cycles |
| Application |
This size is specially designing for Item/asset tracking. including: pallet placards, cases, baggage, denim, poly bags, electronics, apparel tags and boxed items.etc. |
|
Optional Technique |
-Special function option Anti-metal layer -Custom logos/artworks printing/ Laser engrave -ID Number Printing Jet dot printing -URL,text,number.etc encoding/lock to read only |
Benefits |
Designed for use on glass, plastics, wood or other materials normally challenging for RFID. |
|
Features |
The most widely used general purpose tags.One of the best performing general purpose tag family on the market.Designed to work well in challenging Environment Meets EPC global Gen 2 (v 1.2.0) as well as ISO/IEC 18000-6C · Worldwide operation in the RFID UHF bands (860-960MHz) · Higgs-3 IC with 800-bits of Non Volatile Memory · 96 EPC bits, extensible to 480-bits · 512 User bits · 64-bit Unique TID · 32-bit Access and 32-bit Kill passwords · Pre-programmed with a unique, unalterable 64-bit serial number · User Memory can be Block Perma-Locked as well as read password protected in 64-bit blocks · Supports all Mandatory and Optional Gen 2 Commands including Item Level · Custom Commands for high speed programming · Exceptional Operating Range |
Samples |
Depending on customer requirements |
Payment |
By T/T or Western Union. 50% deposit of the total payment before bulk production and the balance paid before delivery |
|
Packaging
|

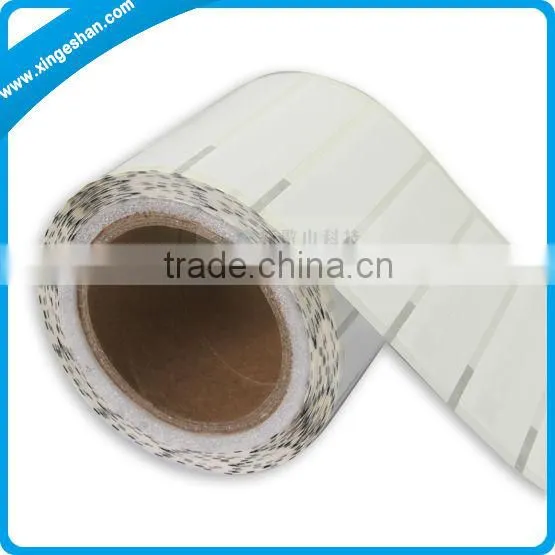

Piece by Piece, 2000pcs/roll 10 rolls/carton or on demand Weight: 1kg/roll 11kg/carton Carton Size: 47cm*32.5cm*17.5cm |
Lead time |
Normally 4~7days below 50,000pcs depends on the quantity & craft required |
|
Notes
|
For bulk order and special discount request, pls feel free to contact us for long-term partnership discount. |
RFID smart Tag advantages:
· enhance process efficiencies
Improve accuracy of tracking and eliminate manual scanning.
Eliminate the need to stage containers to accommodate bar code "line of sight"
requirements Scan multiple products simultaneously without unloading.
· Introduce supply chain visibility
Improve inventory and asset management Streamline work in process operations.
· Deter theft and counterfeiting
· Take inventory in minutes not days
Various shape About uhf car rfid tag :
The detail application of rfid tag:
For card windshielde /packing application:

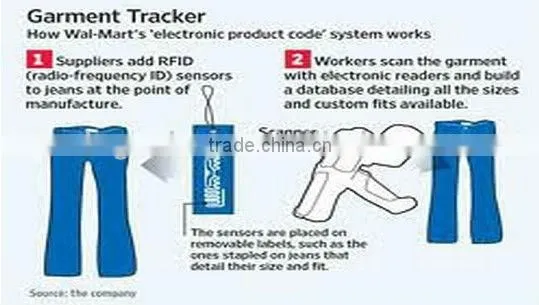

See how Wal-mart tracking their clothes using rfid stickers :

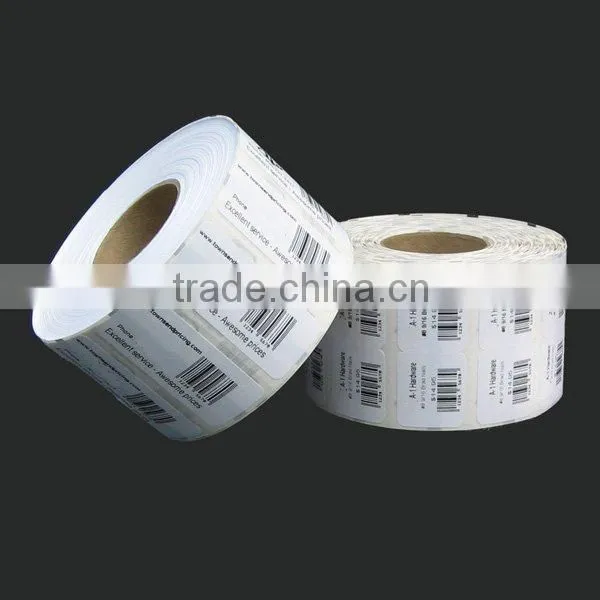

Our RFID label will realize security, brand protection, effective and low cost retail management, etc. We also have paper hang tag like this (inside is also RFID inlay):
For supermarket retail management:

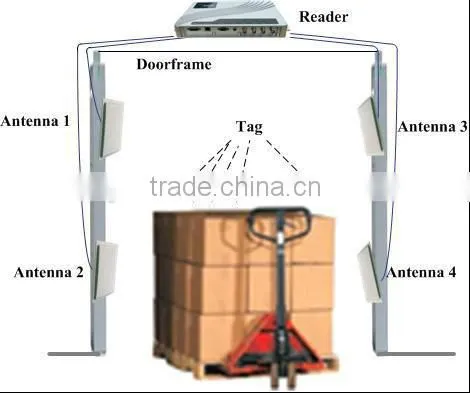

Application in warehouse management, a lot of rfid labels can be Read by the reader at the same time:

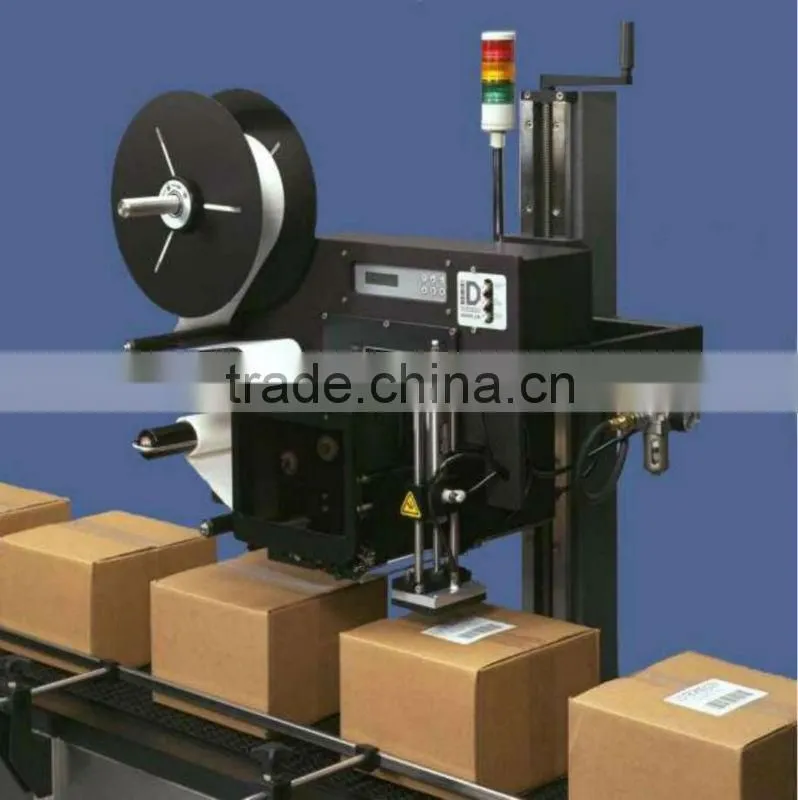

Application in warehouse management, label stickers can be printed and encoded:
Let's know about XGS:
Nanning Xingeshan Tech is manufacturer of RFID inlay, RFID label, rfid tags, and rfid label.
Our production facilities are imported from Germany Muehlbauer, which means high level quality in RFID field.
Our Advantages:
1.High quality insurance : World well know production lines: Germany Muhlbauer TAL5000 bonding line
and CL15000 coverting line. We are also the RFID label supplier of LG Corp.
2. Fastest delivery time : 5000 pcs/hour and 3,000,000 pcs per month output.
3. Experienced designing and producing RFID tags (inlay, label, other tags).
Our production facilities:
For more info about uhf car rfid tag kindly contact or mail to us, our sales will contact you as soon as possible.
After-sale service and guarantee:
1. We provide technical support for your system integration, RFID labels and tags printing,
RFID chips encoding, RFID reader installation guide, etc.
2. Return policy:
--Any products found damaged or unworkable, we will check and replace those products.
*If customers want to return the items received, you must concact us within 7 days after receipt
of your order.
--Customers should pay the additional shipping fees incurred and the products returned
should be kept in their original conditions.
