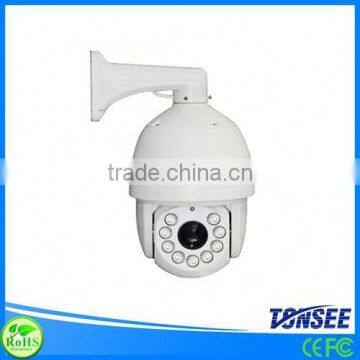

IP PTZ Camera for Outdoor, 6 Inch High Speed Dome 20x Optical Zoom

IP PTZ Camera for Outdoor, 6 Inch High Speed Dome 20x Optical Zoom thumbnail-1
IP PTZ Camera for Outdoor, 6 Inch High Speed Dome 20x Optical Zoom thumbnail-2
IP PTZ Camera for Outdoor, 6 Inch High Speed Dome 20x Optical Zoom photo-1
IP PTZ Camera for Outdoor, 6 Inch High Speed Dome 20x Optical Zoom photo-2
US$ 235 - 247 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bessky
Model Number:
BE-IPSC130
Contact Supplier Request Quote Chat Now
Shenzhen Tonsee Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Bessky
Model Number BE-IPSC130
Type IP Camera
Style Dome Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof

   IP PTZ camera  for outdoor, 6 inch high speed dome  20x optical Zoom,wifi ptz camera 360 dedree

cctv camera price list

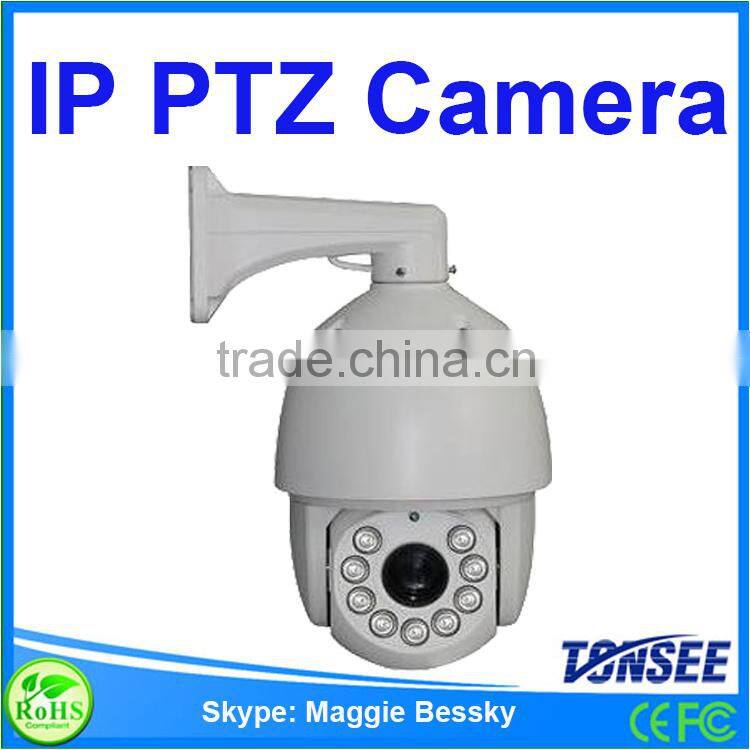

IP PTZ camera for outdoor, 6 inch high speed dome 20x optical Zoom





Product Description

Key features :

6inch Outdoor IP PTZ Camera

Built-in 9 pcs 42mm IR-LED
IR Range:100M
Control speed:180Deg/sec
Pan range:360º
Tilt range: 90º(180º auto overturn)
Support ONVIF H.264 compression mode,
Support Mobile view by P2P



Specifications:


Model No.   BE-IPSC130 BE-IPSC200
Image sensor   Color 1/3" CMOS 1.3MP
Hi3518C+AR0130
960P  1280*960@25fps,
720P 1280*720@25fps
f=4.7-84.6  18x optical Zoom

Color 1/2.8" CMOS 2.0MP
IMX222+3516C

1080P 1920*1080@25ps
f=4.7-94  20x optical Zoom
  White Balance

auto / manual  / auto track white balance

/outdoor/indoor/daylight lamp white

balance/sodium lamp white balance

auto / manual  / auto track white balance

/outdoor/indoor/daylight lamp white

balance/sodium lamp white balance
Gain Control auto/manual auto/manual
image overturn/Mirror overturn/Mirror
Snow Shutter support support
Snow exposal  support support
Exposal mode auto/manual auto/manual
S/N > 50dB( AGC OFF,Weight ON) > 50dB( AGC OFF,Weight ON)
Noise grade 0/1/2/3/4/5 0/1/2/3/4/5
Backlight Compensation ON/OFF ON/OFF
IRIS Control auto/manual auto/manual
WDR Support Support
Electronic Shutter 1/1-1/30,000s 1/1-1/30,000s
Scan system  progressive scanning  progressive scanning
synchronization Inner-synchronization Inner-synchronization
Day /night mode Support Auto ICR color to black Support Auto ICR color to black
Focus mode auto/manual/ one time auto focus auto/manual/ one time auto focus
Focus control Auto/manual Auto/manual
Focus speed 3S (optical ,wide-tele) 3S (optical ,wide-tele)
Lens initializtion built-in built-in
Optical Zoom 4.7- 84.6mm,18 X optical zoom f=4.7-94  20x optical Zoom
Horizontal Range 55.4-2.9 degree
F-number F1.6-F2.7 F1.6-F3.0
PTZ function IR distance 100-120M
IR Angle   three groups angle adjustable to zoom module
Pan speed 0-6°-200°/S
Tilt speed 0.8°-75°/S
Tilt range 0°-90°,180° ((Auto flip)
Manual speed high,middle,low adjustable
Proportional zoom support
Preset 220
Patrol 8, each patrol can add 32 preset
Track scan 4 groups, each group can record 100 action.
Scan between two preset support
Park  support
Area limit support
Network Max image size 1280X960 1920X1080
Frame rate 50Hz: 25  frame(1280X960),60Hz: 30  frame(1280X960)

50Hz: 25  frame(1920X1080),

60Hz: 30  frame(1920X1080)
video compression H.264/MJPEG
IP protocol HTTP/HTTPS/RTSP/FTP/PPPOE/TCPIP/DHCP/DDNS/NTP/UPnP
Dual stream Support
User rights Max 32, 3 levels: admin, operator, visitor
Safe mode authorized ID and Password
IP interface Build in RJ45 interface,support 10M/100M self-adaptive
API Support standard  Onvif 28181, support 3rd-part management platform, supply SDK
Client  Support C client,connect NVR directly
Business function

Support WEB configure,support OSB,support real-time video transfer,

continuous motion, support JPEG screen-shot,

support remote access platform by client software.
Input/output Menu Chinese/English/Multi-language
Others  PTZ Control protocol IP protocol
Power supply DC 12V
Power consumption Max10W day-time,Max30W in night
Working Temperature -20°C-60°C,≤90%RH(frostless)
Protection grade

TVS3000V lightning protection,

surge protection and voltage transient protection,

weather proof (for outdoor): IP66



Packaging & Shipping

IP PTZ camera for outdoor, 6 inch high speed dome 20x optical ZoomIP PTZ camera for outdoor, 6 inch high speed dome 20x optical Zoom

Our Services

Our Service:

  • 100% brand new and High quality
  • Certification: CE/FCC/RoHS
  • Support :Onvif & PSIA
  • 2 years warranty


Any inquires will be replied within 12 hours

  • OEM/ODM available
  • Print your logo on the cameras outer casing
  • Customized cameras color box
  • Your logo can be put into the software or DVR/NVR system
  • Any your idea on cameras ,DVR or NVR ,we can help you to design and put it into production
  • High image quality, reasonable and competitive price in the market, fast delivery

After-sale service

  • All goods will be strictly checked by our QC department before shipping
  • All goods will be well packaged
  • 24 Months hardware warranty
  • Life –time software/firmware update and technical support
Company Information

IP PTZ camera for outdoor, 6 inch high speed dome 20x optical Zoom

IP PTZ camera for outdoor, 6 inch high speed dome 20x optical Zoom

IP PTZ camera for outdoor, 6 inch high speed dome 20x optical Zoom
IP PTZ camera for outdoor, 6 inch high speed dome 20x optical Zoom
IP PTZ camera for outdoor, 6 inch high speed dome 20x optical Zoom
IP PTZ camera for outdoor, 6 inch high speed dome 20x optical Zoom


FAQ

Delivery:     1-3 working days for sample order, 3-8 days for bulk production.

Payment:     Accept T/T, Western Union, Paypal, , L/C, MoneyGram. Ect.

Shipping:    UPS, DHL, TNT, FedEx, by air cargo, by sea or per as your instruction.

OEM:           Accept special design and customize specification; Free logo print service; Customize boxes.

MOQ:          1 piece for sample order. Suggest our clients test sample first before bulk order.



More info,welcome to contact me directly. Look forward your inquiry.

IP PTZ camera for outdoor, 6 inch high speed dome 20x optical Zoom
