Cheap Custom UHF Reusable Writable RFID Tag
General Description:
Writable Passive RFID Tag features long read range and batch tags reading, perfectly suited for applications such as logistics, warehouse inventory, apparel, medical, laundry, asset management, etc.
Detail Technical Datasheet:
| Item name | Writable RFID Tag |
| Standard | EPC Class 1 Gen2 / ISO 18000-6C |
| Label Specification | Label Size(CD×MD) : 96mm×24mm |
Label Pitch : 30mm±0.5mm | |
Liner Width : 105mm±0.5mm | |
Max Units Per Roll:10.000pcs | |
| Label Material | Surface Materia: Coated paper,80g/ m² |
Adhesive : Acrylic emulsion,35μm±3μm | |
Release Paper White glassine paper,60g/ m² | |
| Inlay Material | Antenna: AL,10μm±3μm |
Chip: Silicon,150μm±10μm | |
Substrate : PET,50μm±5μm | |
| Data Transfer Rate: | Exceptional Read Ranges And Higher Read Rate |
| User Memory |
96 bits EPC Number |
| Work Temperature | -40°C to +65°C |
| Store Temperature | -25°C to +50°C |
| R/W Cycles | up to100,000 cycles times |
| Operating Mode | Passive(battery free) |
Benefits |
Well proven design for a broad range of worldwide Applications. Optimized for high performance in all world regions.A very robust general purpose tag. |
Samples |
Depending on customer requirements |
|
The Features of Writable RFID Tag :
---This Writable RFID tag is one of the most widely used general purpose tags ,
One of the best performing general purpose tag family on the market.
---Designed to work well in challenging Environments.
Applications:
Asset management
Access management
Tracking of goods
Toll collection and contactless payment
Machine readable travel documents
Tracking sports memorabilia to verify authenticity
Baggage tracking logistics
Timing sporting events

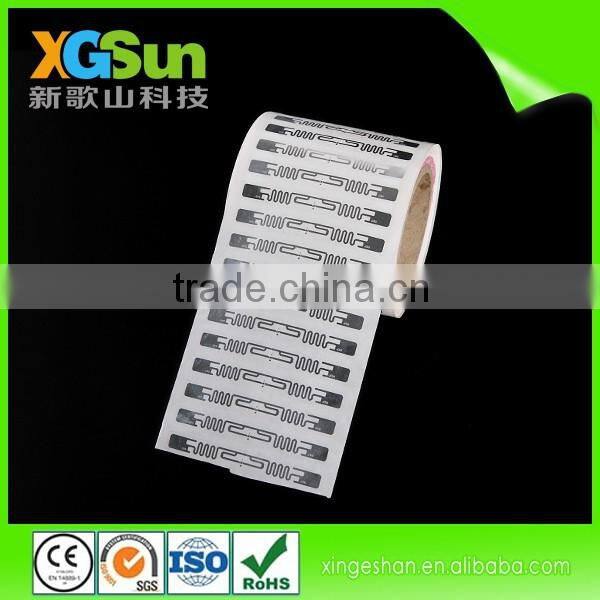

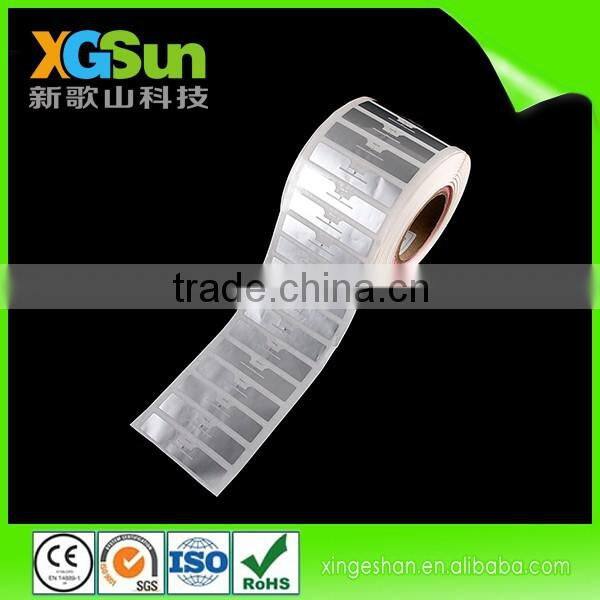

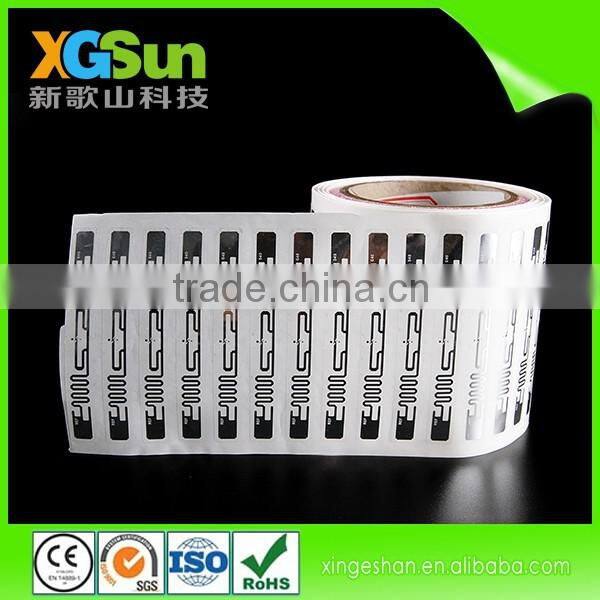

Detail pictures for you :
After-sale service and guarantee:
1.We provide technical support for your system integration, RFID labels and tags printing, RFID chips encoding, RFID reader installation guide, etc.
2. Return policy:
-Any products found damaged or unworkable, we will check and replace those products.If customers want to return the items received, you must concact us within 7 days after receipt of your order.
-Customers should pay the additional shipping fees incurred and the products returned should be kept in their original conditions.
XGSun Electronic Technology is one manufacturer specialized in designing and producing RFID reader ,inlay,label,tickets ,etc.Our production line the World Well known :Muehlbauer Machine ,which Valued 2 million USD ,directly imported from Germany make us have the ability to offer the best quality labels to our clients at a very cost effective price .We have won many regular clients all over the world because of our most cost effective products and excellent after sales service .keenly hope we set up a long term and win-win business relation with your company in the future .
The Advantage of XGSun :
1. High Quality insurance : Wolrd well know machine : Germany Muhlbauer TAL bonding line Coverting line.
2. Fastest delivery time : 8000 pcs/hour and 5,000,000 qty per month output of Printable Alien H3 Rfid UHF Tags
3.Experienced designing and producing Alien H3 Rfid UHF Tags
4.Over 50,000,000 XGS IS0 18000-6C UHF sticker had been used over the world.
1. Can we get free samples?
Yes - we offer free samples, with shipping and taxes paid by the buyer.
2. What is the minimum order quantity?
The MOQ for dry inlays is 10000pcs, for wet inlays or labels is 5000pcs,for other special tags is 500pcs. for cards is 1000pcs.
3. What is the lead time?
7-10days after T/T payment, for other products please contact us for details.
4. What is the payment term?
The payment term is T/T before shipment.
5. Are you looking for distributors?
Yes, we offer distributorship to clients whose order amount of a single product exceeds 1,000,000pcs and will potentially do more similar purchases within certain period of time. Please contact us for further information.
