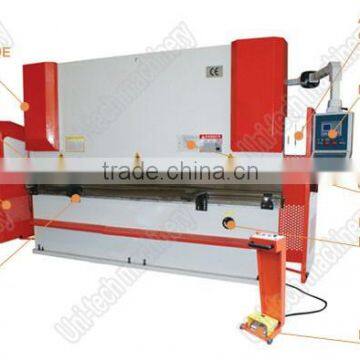

WC67Y-40/2000 Hydraulic press brake machine

Specifications

WC67Y-40/2000Hydraulic press brake machine
1.DRO E10 controller
2.Emergency stop buttons
3.Foot control
4.CE,ISO9001

WC67Y-40/2000 Hydraulic press brake machine

Main features of WC67Y-40/2000 Hydraulic press brake machine :



1.E10 ELECTRIC BACK GAUGE



2.MAIN COMPONENTS: FROM SIEMENS or SCHNEIDE



INCLUDING THE BUTTON,  SWITCH.



3.OIL SEAL--- VALQUA FROM JAPAN.



4.HYDAULIC SYSTEM—BOSH REXROTH (Germany)



5.PIPE CONNECTOR: JS-GERMANY



6.MAIN MOTOR: FAMOUSE BRAND IN CHINA



7.BACK, SIDE  PROTECTION.



BACK PROTECTION WITH MICRO-SWITCH



9. ELECTRIC CABINET WITH MICRO SWITCH.



8.PACKING:  IRON PALLET

Specifications of WC67Y-40/2000 Hydraulic press brake machine :



Model	Nominal Pressure(KN)	Length of Working Table (mm)	Distance Between two columns(mm)	Throat Depth (mm)	Travel Distance of Back-gauge (mm)	Stroke of the Ram (mm)	Stroke Adjustment of the Ram (mm)	Stroke Number (time/min)	Max.Open Height (mm)	Oil Tank Vol	Motor Power (KW)	Weight(t)		Dimensions(mm)
												N.WT	G.WT	L*W*H
WC67Y-20/1320	200	1320	1020	200	400	80	70	10	245	80L	4	2.1	2.4	1500*940*1870
WC67Y-30/1320	300	1320	1020	200	400	80	70	10	245	80L	4	2.1	2.4	1500*940*1870
WC67Y-40/1320	400	1320	1020	200	600	100	80	10	340	85L	4	2.3	2.6	1500*940*1870
WC67Y-40/2000	400	2000	1675	200	600	100	80	8	340	140L	4	3	4	2160*1050*2150
WC67Y-63/2500	630	2500	2080	250	600	100	80	8	340	230L	5.5	5	5.5	2560*1320*2360
WC67Y-80/2500	800	2500	2080	250	600	100	80	8	355	230L	7.5	5.3	5.8	2560*1350*2410
WC67Y-80/3200	800	3200	2700	250	600	100	80	8	355	300L	7.5	6.5	7	3280*1350*2430
WC67Y-100/2500	1000	2500	2050	320	600	150	120	8	415	230L	7.5	6.5	7	2560*1420*2500
WC67Y-100/3200	1000	3200	2700	320	600	150	120	8	415	300L	7.5	8	9	3280*1420*2640
WC67Y-100/4000	1000	4000	3150	320	600	150	120	8	415	370L	11	9	10	4080*1420*2680
WC67Y-125/3200	1250	3200	2700	320	600	150	120	8	415	300L	7.5	8	9	3280*1420*2640
WC67Y-125/3600	1250	3600	2850	320	600	150	120	8	415	350L	11	8.8	10.5	3680*1420*2680
WC67Y-125/4000	1250	4000	3150	320	600	150	120	8	415	370L	11	9	10.5	4080*1420*2680
WC67Y-140/4000	1400	4000	3150	320	600	150	120	8	415	370L	11	10	11.5	4080*1560*2680
WC67Y-160/3200	1600	3200	2500	320	600	200	160	8	465	300L	11	10	11	3280*1540*2700
WC67Y-160/4000	1600	4000	3150	320	600	200	160	8	465	370L	11	12.5	14	4080*1540*2990
WC67Y-200/3200	2000	3200	2600	320	600	200	160	8	465	300L	15	11.5	12.5	3280*1540*2700
WC67Y-200/4000	2000	4000	3150	320	600	200	160	8	465	370L	15	13.5	16	4080*1540*2990
WC67Y-250/4000	2500	4000	3150	400	600	250	200	8	660	370L	18.5	17	18	4080*2200*3300
WC67Y-400/4000	4000	4000	3280	400	600	320	250	6	735	415L	37	27	28	4080*2550*3660

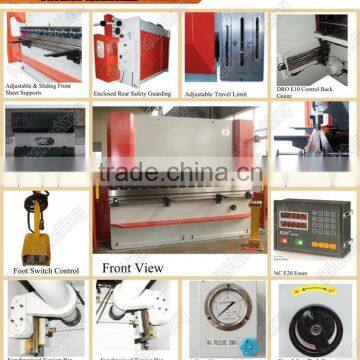

WC67Y-40/2000 Hydraulic press brake machine Standard accessories:

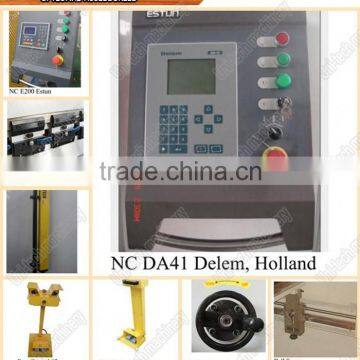

WC67Y-40/2000 Hydraulic press brake machine Optional accessories:
