Cheap Programmable ISO 15693 RFID Tag for CD Management
Technical Datasheet:
| Item name | Cheap Programmable ISO15693 RFID Tag for CD Management |
Model Number |
L117117C1H |
| Standard | ISO/IEC 15693 |
| Frequency | HF 13.56 MHz |
| Inlay size | O.D 110mm |
| Antenna Size(CD×MD) |
O.D 110mm luminum etching antenna |
| Inlay Material | Antenna: AL,30μm±3μm |
Chip : Silicon,150μm±10μm | |
Substrate : PET,38μm±5μm | |
| Label Pitch | 128.00 mm ± 1.00 mm |
| Material | AL-etching antenna, PET substrate |
| Data Transfer Rate: | 53 Kbit/s |
| Chip | Icode SLI |
| User Memory | 1024 bits |
| Label Dimension | can be customized |
| Reading Distance |
3-10cm(reader dependent or antenna design)
|
| Work Temperature | 20 to 80°c |
| Store Temperature | -40°C to + 65°C |
| R/W Cycles | up to100,000 cycles times |
| Operating Mode | Passive(battery free) |
|
Dry Inlay Max Units Per Roll |
2000pcs/Per Roll |
|
Wet Inlay Max Units Per Roll |
2000pcs/Per Roll |
| PESD | Human Body : 1.5KV |
| Charged Device:1.5KV | |
Benefits |
Designed for use Access control,Library management,Ticketing or other normally challenging for RFID. |
Samples |
Depending on customer requirements |
|
General Application Description
|
This Rfid Printer Label For DVD CD has short or medium read range, it features stable reading performance and less environmental influences,perfectly suited for applications such as access ontrol, library management, ticketing,contact-less payment, etc.
|

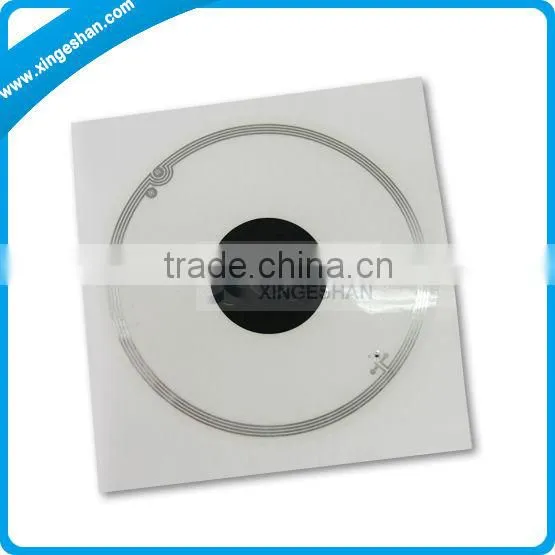

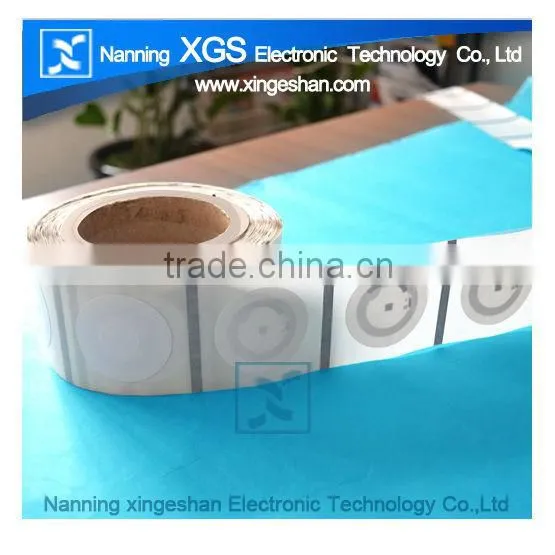

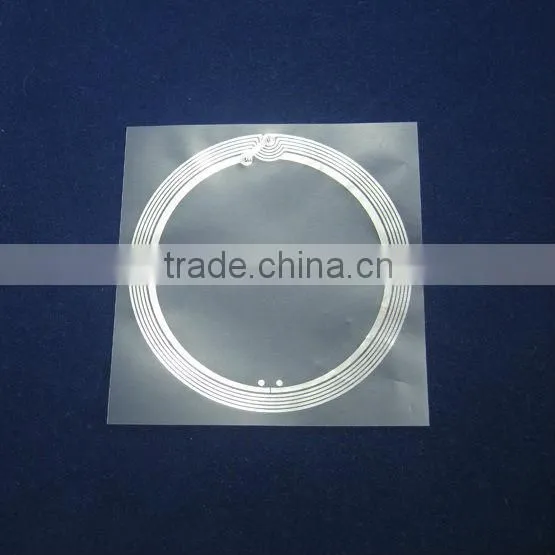

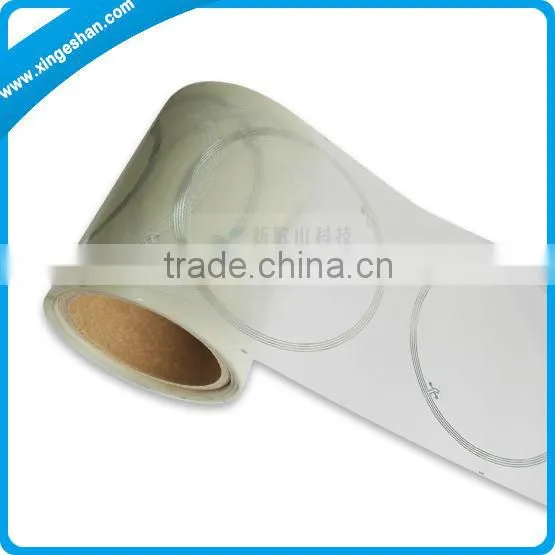

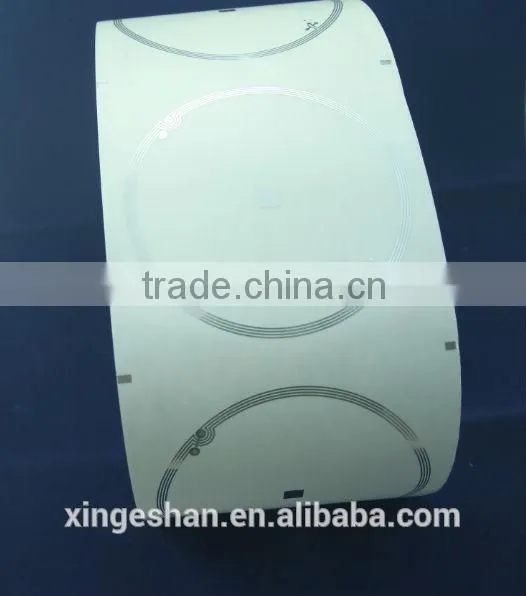

Detail pictures for you :

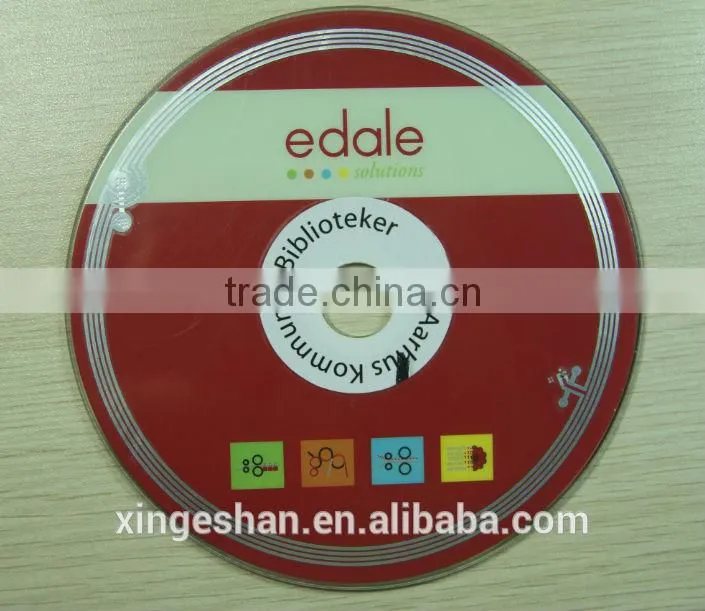

Typical applications about RFID Inlay Manufacturer Logo Printed rfid Circular tag Rfid DVD circular Tag :
See RFID Inlay Manufacturer was Chip-on-books to tracking their Books in libraries:
See RFID inlay was converted into Cards/ Tickets works for access control :
After-sale service and guarantee
1.We provide technical support for your system integration, RFID labels and tags printing, RFID chips encoding, RFID reader installation guide, etc.
2. Return policy:
-Any products found damaged or unworkable, we will check and replace those products.If customers want to return the items received, you must concact us within 7 days after receipt of your order.
-Customers should pay the additional shipping fees incurred and the products returned should be kept in their original conditions.
XGSun Electronic Technology is one manufacturer specialized in designing and producing RFID reader ,inlay,label,tickets ,etc.Our production line the World Well known :Muehlbauer Machine ,which Valued 2 million USD ,directly imported from Germany make us have the ability to offer the best quality labels to our clients at a very cost effective price .We have won many regular clients all over the world because of our most cost effective products and excellent after sales service .keenly hope we set up a long term and win-win business relation with your company in the future .
The Advantage of XGSun :
1. High Quality insurance : Wolrd well know machine : Germany Muhlbauer TAL bonding line Coverting line.
2. Fastest delivery time : 8000 pcs/hour and 5,000,000 qty per month output of Printable Alien H3 Rfid UHF Tags
3.Experienced designing and producing Alien H3 Rfid UHF Tags
4.Over 50,000,000 XGS IS0 18000-6C UHF sticker had been used over the world
Did you find what you are looking for ?if not,Don't worry,try to contact us ,We can design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirements.
For more info about RFID products please kindly contact or mail to us, our sales will contact you as soon as possible.
