Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > Metal Sheet Bending Machine WC67Y
US$ 2,500 - 45,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
UNI-TECH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plate Bending Machine WC67YUS$ 2,500 - 45,000MOQ: 1 Set -
CNC Bending Machine WC67YUS$ 2,500 - 45,000MOQ: 1 Set
-
Plate Steel Hydraulic Pres Brake Machine WC67YUS$ 2,500 - 45,000MOQ: 1 Set
-
Metal Plate Hydraulic Press Brake WC67YUS$ 2,500 - 45,000MOQ: 1 Set
-
Hydraulic Press Brake Folding Machine WC67YUS$ 2,500 - 45,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
UNI-TECH
Model Number
WC67Y series
Machine Type
Press Brake
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Stainless Steel
Power
Hydraulic
Automation
Automatic
Extra Services
End Forming
Certification
CE
After-sales Service Provided
Overseas third-party support available
Specifications
Metal sheet bending machine WC67Y series1.DRO E10 controller
2.Emergency stop buttons
3.Foot control
4.CE,ISO9001
Metal sheet bending machine WC67Y series

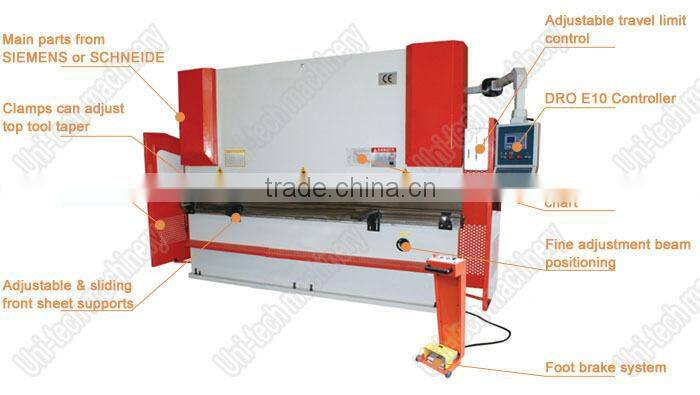

Main features and standard equipments of Metal sheet bending machine WC67Y series:
1.E10 ELECTRIC BACK GAUGE
2.MAIN COMPONENTS: FROM SIEMENS or SCHNEIDE
INCLUDING THE BUTTON, SWITCH.
3.OIL SEAL--- VALQUA FROM JAPAN.
4.HYDAULIC SYSTEM—BOSH REXROTH (Germany)
5.PIPE CONNECTOR: JS-GERMANY
6.MAIN MOTOR: FAMOUSE BRAND IN CHINA
7.BACK, SIDE PROTECTION.
BACK PROTECTION WITH MICRO-SWITCH
9. ELECTRIC CABINET WITH MICRO SWITCH.
8.PACKING: IRON PALLET
Specifications of Metal sheet bending machine WC67Y series:
| Model | Nominal Pressure(KN) | Length of Working Table (mm) | Distance Between two columns(mm) | Throat Depth (mm) | Travel Distance of Back-gauge (mm) | Stroke of the Ram (mm) | Stroke Adjustment of the Ram (mm) | Stroke Number (time/min) | Max.Open Height (mm) | Oil Tank Vol | Motor Power (KW) | Weight(t) | Dimensions(mm) | |
| N.WT | G.WT | L*W*H | ||||||||||||
| WC67Y-20/1320 | 200 | 1320 | 1020 | 200 | 400 | 80 | 70 | 10 | 245 | 80L | 4 | 2.1 | 2.4 | 1500*940*1870 |
| WC67Y-30/1320 | 300 | 1320 | 1020 | 200 | 400 | 80 | 70 | 10 | 245 | 80L | 4 | 2.1 | 2.4 | 1500*940*1870 |
| WC67Y-40/1320 | 400 | 1320 | 1020 | 200 | 600 | 100 | 80 | 10 | 340 | 85L | 4 | 2.3 | 2.6 | 1500*940*1870 |
| WC67Y-40/2000 | 400 | 2000 | 1675 | 200 | 600 | 100 | 80 | 8 | 340 | 140L | 4 | 3 | 4 | 2160*1050*2150 |
| WC67Y-63/2500 | 630 | 2500 | 2080 | 250 | 600 | 100 | 80 | 8 | 340 | 230L | 5.5 | 5 | 5.5 | 2560*1320*2360 |
| WC67Y-80/2500 | 800 | 2500 | 2080 | 250 | 600 | 100 | 80 | 8 | 355 | 230L | 7.5 | 5.3 | 5.8 | 2560*1350*2410 |
| WC67Y-80/3200 | 800 | 3200 | 2700 | 250 | 600 | 100 | 80 | 8 | 355 | 300L | 7.5 | 6.5 | 7 | 3280*1350*2430 |
| WC67Y-100/2500 | 1000 | 2500 | 2050 | 320 | 600 | 150 | 120 | 8 | 415 | 230L | 7.5 | 6.5 | 7 | 2560*1420*2500 |
| WC67Y-100/3200 | 1000 | 3200 | 2700 | 320 | 600 | 150 | 120 | 8 | 415 | 300L | 7.5 | 8 | 9 | 3280*1420*2640 |
| WC67Y-100/4000 | 1000 | 4000 | 3150 | 320 | 600 | 150 | 120 | 8 | 415 | 370L | 11 | 9 | 10 | 4080*1420*2680 |
| WC67Y-125/3200 | 1250 | 3200 | 2700 | 320 | 600 | 150 | 120 | 8 | 415 | 300L | 7.5 | 8 | 9 | 3280*1420*2640 |
| WC67Y-125/3600 | 1250 | 3600 | 2850 | 320 | 600 | 150 | 120 | 8 | 415 | 350L | 11 | 8.8 | 10.5 | 3680*1420*2680 |
| WC67Y-125/4000 | 1250 | 4000 | 3150 | 320 | 600 | 150 | 120 | 8 | 415 | 370L | 11 | 9 | 10.5 | 4080*1420*2680 |
| WC67Y-140/4000 | 1400 | 4000 | 3150 | 320 | 600 | 150 | 120 | 8 | 415 | 370L | 11 | 10 | 11.5 | 4080*1560*2680 |
| WC67Y-160/3200 | 1600 | 3200 | 2500 | 320 | 600 | 200 | 160 | 8 | 465 | 300L | 11 | 10 | 11 | 3280*1540*2700 |
| WC67Y-160/4000 | 1600 | 4000 | 3150 | 320 | 600 | 200 | 160 | 8 | 465 | 370L | 11 | 12.5 | 14 | 4080*1540*2990 |
| WC67Y-200/3200 | 2000 | 3200 | 2600 | 320 | 600 | 200 | 160 | 8 | 465 | 300L | 15 | 11.5 | 12.5 | 3280*1540*2700 |
| WC67Y-200/4000 | 2000 | 4000 | 3150 | 320 | 600 | 200 | 160 | 8 | 465 | 370L | 15 | 13.5 | 16 | 4080*1540*2990 |
| WC67Y-250/4000 | 2500 | 4000 | 3150 | 400 | 600 | 250 | 200 | 8 | 660 | 370L | 18.5 | 17 | 18 | 4080*2200*3300 |
| WC67Y-400/4000 | 4000 | 4000 | 3280 | 400 | 600 | 320 | 250 | 6 | 735 | 415L | 37 | 27 | 28 | 4080*2550*3660 |
Product Description

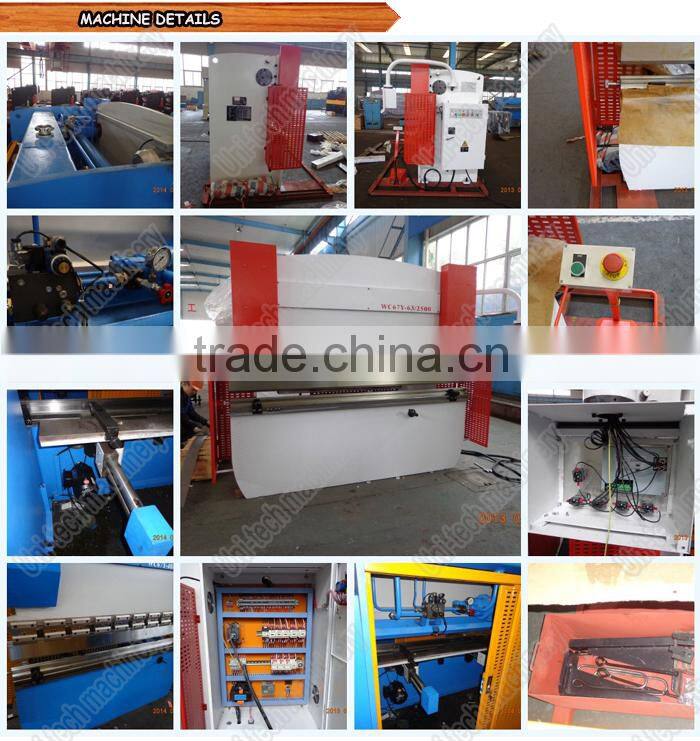

Machine details of Metal sheet bending machine WC67Y:

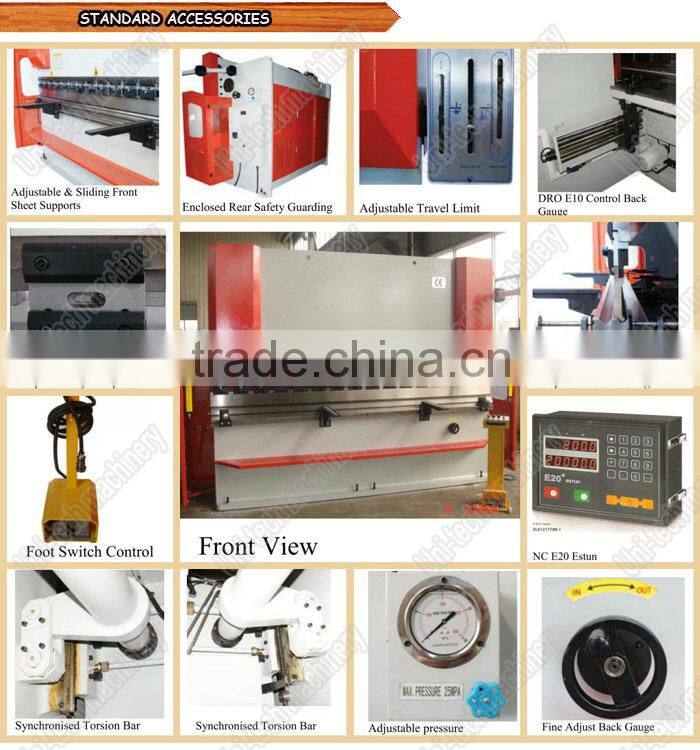

Standard accessories of Metal sheet bending machine WC67Y :

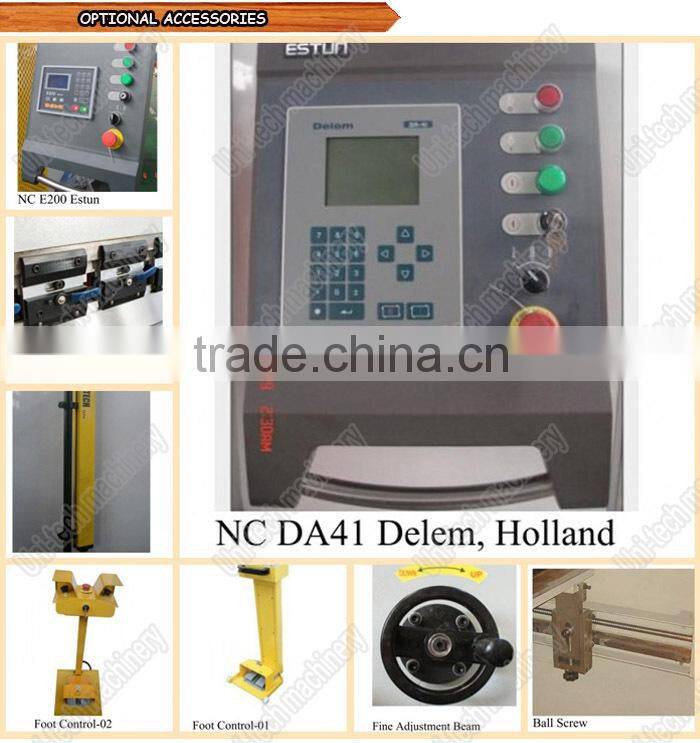

Optional accessories of Metal sheet bending machine WC67Y :
