W24Y Series Hydraulic Construction Stainless Steel Bar Bending Machine Quality Choice

FOB Price

USD $5,600 - $7,500 / Piece

1 Piece(Min.Order)

Supply Ability 470 Piece / Pieces per Month
Port QINGDAO/SHAGNHAI/GUANGZHOU
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	UNI-TECH
Model Number:	W24Y-500	Machine Type:	Beading Machine	Raw Material:	Steel Bar
Material / Metal Processed:	Stainless Steel	Power:	Hydraulic	Automation:	Automatic
Extra Services:	Cut To Length	Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

W24Y Series Hydraulic Construction Stainless Steel Bar Bending Machine

section bending

Bend l steel,flat bean, solid bar, etc.

CE,ISO9001

W24Y Series Hydraulic Construction Stainless Steel Bar Bending Machine Features:

1.The machine is an efficient processing machine which is specially designed to bend l steel, flat bean, solid bar, etc.

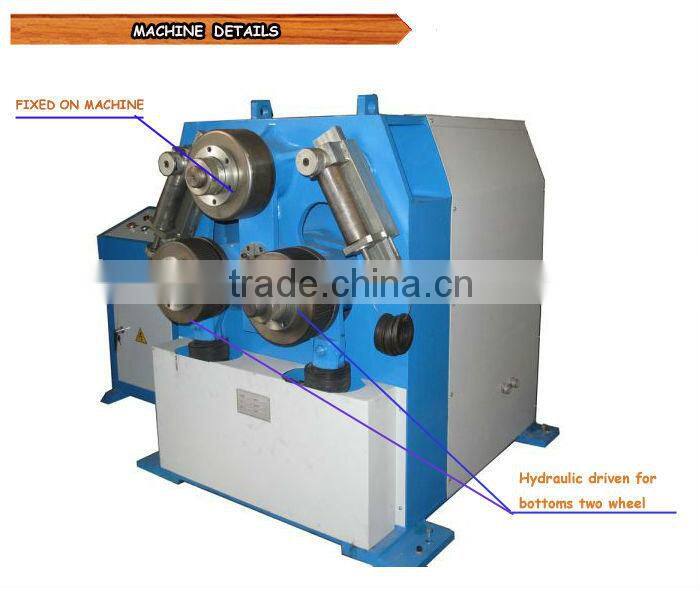

2. It has three working rollers, the positions of the two bottom rollers can be adjusted along the arc.
3. Assisting rollers are installed on both sides of the machine to control the work quality in the bending of proportional steel sections.
4. The machine is reliable to operate with various functions and is an ideal bending machine thar's adjustable and able to deal with different types of materials and specifications only by recombining the die settings.

5.The machine offers low cost with flexibility and relibility.

6. Rolling easy.

W24Y Series Hydraulic Construction Stainless Steel Bar Bending Machine specifications:

Model		W24Y-400	W24Y-500	W24Y-1000
Yield limit	mm	<245	<245	<245
Min. bending dia. (Angle steel leg out)	mm	200-400	300-400	400-600
Capacity		L40X4	L50X5	L75X7
Overall size	L.mm	1000	1200	1320
	W.mm	750	750	950
	H.mm	1350	1580	1270
N.W/G.W	kg	500/600	900/1030	2500/2750
Main motor	kw	2.2/1.5	2.2/2.2	4/2.2

Model	Capacity	Min. rolling Dia.
W24Y--400	ANGLE IRON 40X40X4	280MM
	SQUARE PIPE 25X25X2	350
	ROUND PIPE 2"(T=3)	500
	FLAT STEEL 40X6	350
	SQUARE STEEL 15X15	350

W24Y-500	ANGLE STEEL 50X50X5	350
	SQUARE PIPE 30X30X2.5	350
	ROUND PIPE 2"(T=3)	450
	FLAT STEEL 50X6	350
	SQUARE STEEL 18X18	350

W24Y--1000	ANGLE STEEL: MAX: 75X75X8	800
	MIN.30X30X3	350

	SQUARE PIPE: MAX. 70X70X5	1500
	MIN.25X25X2	350

	RECTANGULAR PIPE MAX. 80X25X3	800
	MIN. 25X15X2	350

	ROUND PIPE MAX. 100X2.5	1200
	MIN. 15X1	350

	FLAT STEEL: MAX. 80X16	600
	MIN. 30X8	350

	SQUARE STEEL: MAX.40X40	800
	MIN.15X15	350
