Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > ip Nvr 8ch Set Wifi Dome Camera Home/office/store Use P2P Wireless 2mp ip Camera KIT Wifi hd ip Camera 1080p

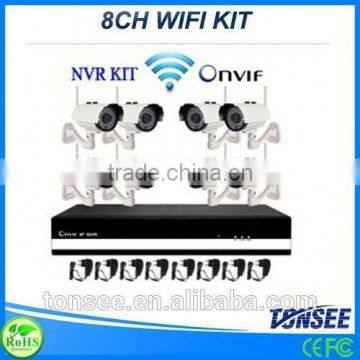

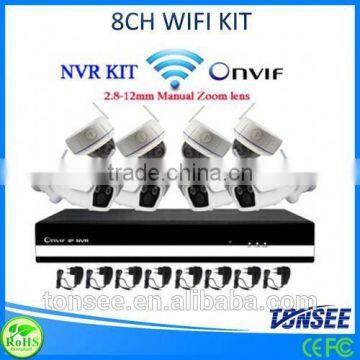

ip Nvr 8ch Set Wifi Dome Camera Home/office/store Use P2P Wireless 2mp ip Camera KIT Wifi hd ip Camera 1080p
US$ 377 - 433
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Bessky/OEM
Model Number:
6009SLIPDB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IP Bullet Camera Sony CMOS 720P/960P/1080P 2.8-12mm Varifocal Lens Onvif Night Vision Sensor Smallest ip CameraUS$ 33.2 - 33.8MOQ: 100 Pieces -
IP Dome Camera Sony CMOS 720P 6mm Varifocal Lens Onvif Night Vision ls Vision ip CameraUS$ 31.8 - 60.5MOQ: 100 Pieces
-
IP Array Bullet Weatherproof Camera Sony CMOS 2.0MP 1080P 2.8-12mm Varifocal Lens 2pieces Wireless ip Camera ModuleUS$ 36.4 - 63.7MOQ: 100 Pieces
-
Online Shopping ip Camera System Outdoor,8channel 1080p ip Camera Dvr P2p Cctv Security System Quality ChoiceUS$ 1 - 554MOQ: 1 Set
-
Top 10 Wireless Wifi ip Camera Kit With Specifications,960P Outdoor Waterproof Camera NVR KitNegotiableMOQ: 1 Set
Place of Origin
China
Brand Name
Bessky/OEM
Model Number
6009SLIPDB
Type
Other, IP Camera, Wifi Kit
Style
Other, Bullet Camera, WIFI NVR&WIFI IP Camera
Sensor
Other, CMOS, Wifi Signal
Technology
Infrared
Special Features
Waterproof / Weatherproof
ip nvr 8ch set wifi dome camera home/office/store use P2P wireless 2mp ip camera KIT wifi hd ip camera 1080p wireless ip camera kit
Product Description
DVR Main Features:
- Support 9CH 1080P/960P/720P Viewing/Recording
- Support 4CH 960P&720P/1CH 1080P playback
- Support 1CH BNC/VGA/HDMI output
- Support 9CH audio In/ 1 CH Out
- No alarm in/out
- Support mobile/ie/software remote view
- support 1 SATA HDD,max capacity 4T

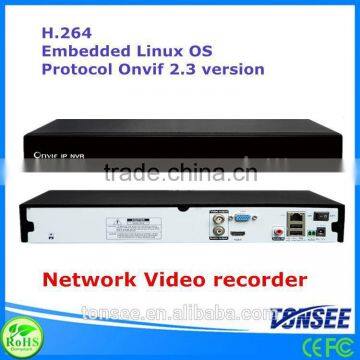

DVR Specification:
| System | |
| Main processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX OS |
| Video spec. | |
| Video compression format | H.264 |
| Display Image Resolution | D1@30fps;720P@30fps; 960P@30fps;1080P@30fps |
| Playback Image Resolution | 720P@30fps;960P@30fps;1080P@30fps |
| Audio spec. | |
| Audio compression format | adpcm g711 |
| Recording Mode | |
| Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording |
| Recording storage | HDD,Network |
| Frame rate | 30 fps NTSC;25fps PAL |
| Playback | 1080P*1CH/960P*4CH/720P*4CH |
| Backup Mode | Support HDD,USB Flash Disk store & backup |
| Video | |
| Network Video Input | 9ch |
| Video output | 1ch |
| Audio | |
| Audio Input | 9ch IPC Composite Audio |
| Audio Output | 1ch IPC Composite Audio |
| Other | |
| Network | 1x10/100Mbps,RJ45 port |
| RS485 | Standard 485 port,support half-duplex,green terminal port |
| USB | 2 USB 2.0 ports |
| HDD | support 1pcs 4TB SATA HDD inside |
| Power | DC +12V /4A |
| Power consumption | 16W-18W(not include HDD and PoE) |
| Operation temperature | -10°C-+55°C |
| Operation humidity | 10%-90% |
| Demension | 335MM*252MM*50mm(1U hight) |

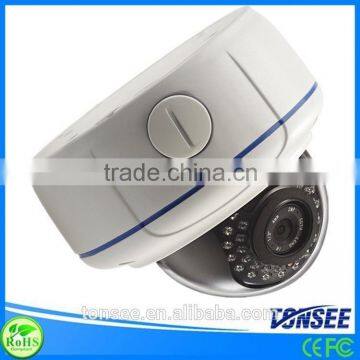

Camera Specification:
| Item | BE-IPDA100E | BE-IPDA130E | BE-IPDA100S | BE-IPDA130S | BE-IPDA200 |
| Chipset | 1/4-inch 1.0 Megapixel (720P 1280*720@20fps ) HI3518E+OV 9712 CMOS (not support Audio in/out) |
1/3-inch 1.3 Megapixel (960P 1280*960@20fps) HI3518E+AR0130 CMOS(not support Audio in/out) |
1/4-inch 1.0 Megapixel (720P 1280*720@30fps ) HI3518C+OV 9712 CMOS |
1/3-inch 1.3 Megapixel (960P 1280*960@30fps, 720P 1280*720@30fps) HI3518A+AR0130 CMOS |
1/2.5-inch 2.0 Megapixel (1080P 1920*1080@30ps) HI3516C+Sony IMX 122 CMOS |
| Day and Night | Yes | ||||
| Min.Scene Illumination | 0.5lux(IR ON) | 0.01lux(IR ON) | 0.5lux(IR ON) | 0.01lux(IR ON) | 0.01lux(IR ON) |
| Infrared sensitivity | Support | ||||
| IR Filter | IR-CUT | ||||
| IR-led | 30 pcs 5mm | ||||
| IR distance | 25M | ||||
| Electronic shutter | 1/5-1/15,000 /S | ||||
| lens | 6mm fixed lens (4/8MM optional) | ||||
| Compression | H.264 Main Profile/Baseline | ||||
| Picture Resolution | 720P 1280*720@20fps | 960P 1280*960@20fps | 720P 1280*720@30fps | 960P 1280*960@30fps, 720P 1280*720@30fps | 1080P 1920*1080@30ps |
| Steam flow | Support dual stream | ||||
| Bit Rate | 32-16384kbps | ||||
| Bit Rate Type | CBR/VBR | ||||
| S/N Ratio | >50DB | ||||
| Image enhancement | Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted | ||||
| Subtitles input | Support channel name, date/time | ||||
| Flip Config | Up/down, Left/right | ||||
| Audio | |||||
| Audio | Support the microphone input and LINE OUT, support two-way voice intercom equipment | ||||
| equipment | An external audio equipment | ||||
| Audio input/ output | one channel audio input, one channel audio output | ||||
| Audio Compression | G.711 | ||||
| Network | |||||
| Protocal | HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF,PSIA | ||||
| Ethernet | Ethernet (10/100 Base-T),RJ-45 connector | ||||
| Safety | IP address filtering,User level password protection,The user access log | ||||
| Software | |||||
| WEB Browser | Microsoft Internet Explorer 6.0 and above,google,firefox etc. | ||||
| Software Management | CMS and the devices Compatible with ONVIF | ||||
| Software intelligence function | Motion detection, Network disconnect, IP address conflict | ||||
| Event action | Files are stored to the back end equipment,Send E-mail,take pictures,send to FTP, etc | ||||
| Remote Access | DDNS,P2P(network and mobilephone) | ||||
| Physical properties | |||||
| Power Supplier | DC 12V/1A | ||||
| Temperature | -20°~60°C | ||||
| Humidity | -10~85% | ||||
| Certification | CE ,FCC,RoHS | ||||
