Specifications
uhf tags and inlays2)Protocol:EPC C1G2/ISO18000-6C
3)Frequency:860-960MHz
4)Chip:Alien H3

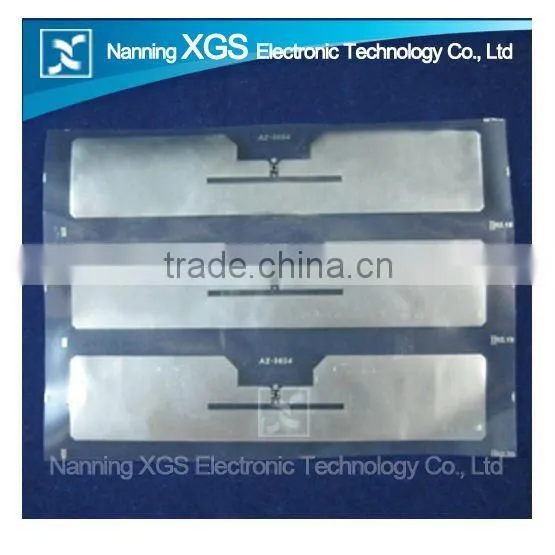

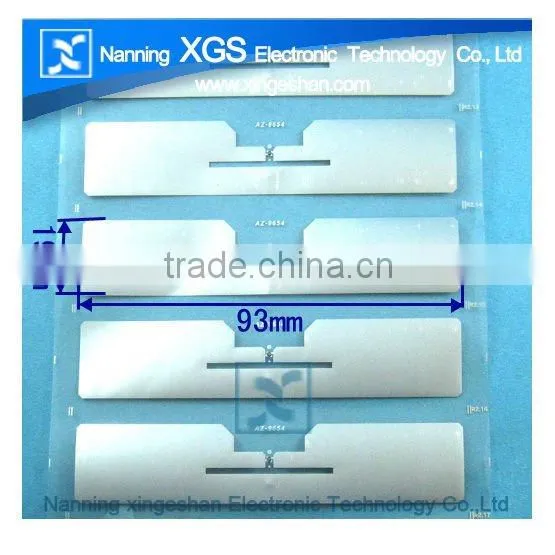

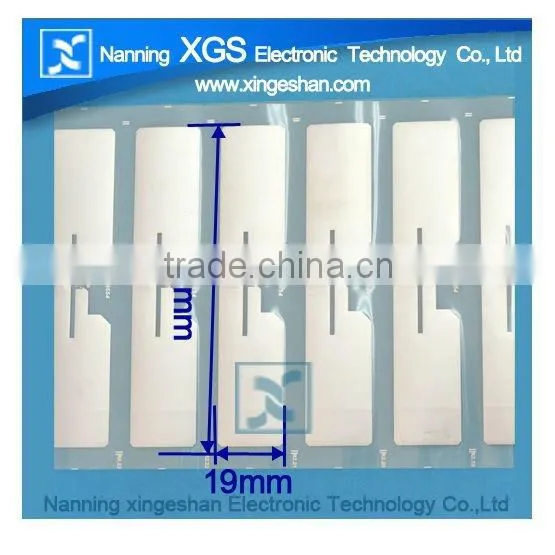

5)Inlay size:19mm*93mm
Updated on Jan. 10, 2013
Nanning Xingeshan Tech is manufacturer of RFID inlay, RFID label, rfid tags, and rfid label. Our production facilities are imported from Germany Muehlbauer, which means high level quality in RFID field.
Advantage of RFID inlay
- UHF rfid inlay has long reading distance.
- Can be converted into 4*1, 4*2, 4*4, 4*6 inch RFID smart label, usful in logistics, warehouse management system (WMS), apparel RFID, asset tracking, and other UHF RFID solution.
- Low cost Alien RFID inlay, can replace UPM Short Dipole tag.
- Optional IC: Impinj Monza ( M4,M5, M4D, M4E, M4QT, etc).
- Delivery format: dry inlay, wet inaly, white wet inaly, smart label. Label encoding and printing before delivery.
uhf tags and inlays
Process |
Flip-Chip |
Frequency |
UHF 860-960 MHz |
Standard |
EPC Class1 Gen2/ISO 18000-6C |
Antenna |
Aluminum etching antenna |
Chip |
Alien H3 |
Dimension |
19*93mm |
Temperature |
-20°C to 80°C |
R/W Cycle |
Up to 100000 cycles |
Data retention time |
10 years |
Reading Range |
5~8m |
Typical Application |
Access control management Asset tracking management Supply chain management Warehouse management Logistics management Production automation management Library management Parcel tracking Healthcare management Anti-counterfeit |
Package |
Roll or As per customer requirements |
Sample |
Free samples available upon request |
Declare |
The attached pictures are only for reference. We provide customized service. |
uhf tags and inlays
