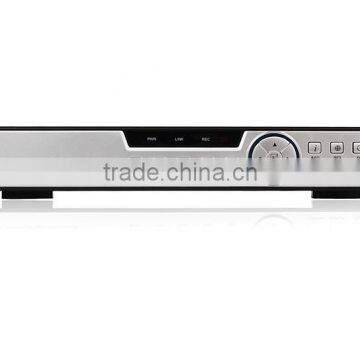

8ch ahd dvr board,sdi capture card,8ch 1000tvl dvr kit
1.Compression algorithm upgraded to H.264 High Profile
2.Completely new graphics operating interface design, to let you experience easily and conveniently.
3.SDVR combines the functions of DVR/HVR/NVR together, multi-mode input support analog video, Analog HD video, network HD video input). No need to worry how to be
compatible with analog system, to choose DVR or HVR, just one SDVR can work.
4.Super Strong processing capacity: can realize 8CH AHD 1080P realtime recording and 8CH AHD 1080P realtime
playback synchronously.

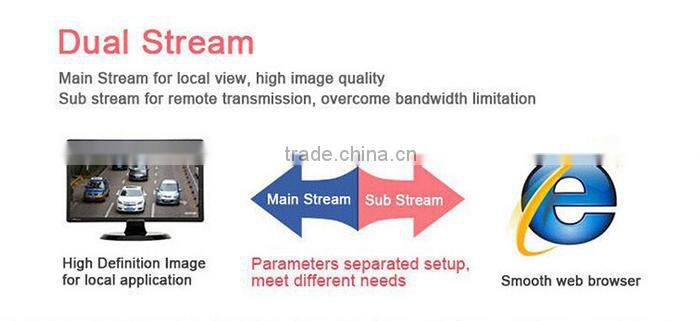

5.Support main stream and extra steam encode synchronously. Main stream is for local storage to maintain
the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
6.Support 3G & WIFI extension.
7.Support multi-browser(IE,Chrome,Firefox,Safari).
8.Support kinds of mobile monitor(iPhone,BlackBerry, Android)
9.Multiplex operation : Preview, recording, playback, backup, network live, mobile phone view; all operations are
independent of each other.
10.Twenty kinds of language(English,Finnish,French,German,Greek,Italian,Japanese,Polish,
Portuguese,Russian,Spanish,Thai,Simplified Chinese,Chinese-Traditional,Turkish, etc),break up country limitation.
Model |
BE-8108HA |
BE-8208HAS |
||
System |
Main processor |
Industrial grade embedded micro controller chip Huawei HIS chipset Hi3531 |
||
Operating system |
Embedded LINUX operating system |
|||
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|||
Display |
Operation interface |
16 bit real color GUI interface support mouse operation |
||
Display screen |
(Take all analog input as an example, others are depended on the selected channel mode) |
|||
1/4 /8/9screen | ||||
Video |
Image encode |
H.264(High Profile) |
||
Monitor quality |
VGA:1080P ;HDMI:1080P |
|||
Playback quality |
Max support 1080P under HVR and NVR mode; Max support AHD 1080P under DVR mode: |
|||
Encode capability |
8CH AHD 1080P@15FPS/8CH AHD 720P real time (DVR mode) |
|||
Decode capability |
4CH AHD 1080P@15FPS/8CH AHD 720P real time (DVR mode) |
|||
Multi-mode video input |
DVR mode :8CH*1080P@15FPS/4CH*1080P@25FPS HVR mode:2CH*1080P(analog)+2CH*1080P(network) /8CH*720P+8CH*720P NVR mode:4CH*1080P/1CH*1080P+8CH*720P/ 20CH*960H |
|||
Motion detection |
Each channel can set 192(16*12)detection area; can set multi-level of flexibility (for local analog channel only) |
|||
Audio |
Audio compression |
G.711A |
||
|
Record and playback
|
Record mode |
Manual,alarm,motion detection,timing |
||
Local playback |
1-4ch playback synchronously; Under the mode of DVR, Max support 4CH AHD 1080P playback synchronously |
|||
Video search |
Time,date,event,channel search |
|||
Storage and back up |
Space occupation |
Video:1080P 20~30G/day*channel,720P:20G/day*channel; 960H:12~20G/day*channel |
||
Video storage |
Local HDD ,Network |
|||
Back up mode |
Network backup,USB portable HDD,USB DVD-RW |
|||
Interface |
Video input |
4CH BNC |
||
Video output |
1CH VGA,1CH HDMI |
|||
Audio input |
4CH RCA |
|||
Audio output |
1CH RCA |
|||
Alarm input |
NO |
4CH |
||
Alarm output |
NO |
1CH |
||
Network port |
RJ45 10M/100M self-adaptive Ethernet port |
|||
PTZ control |
1 RS485;support multi kinds of PTZ Protocol |
|||
USB port |
2*USB2.0 |
|||
HDD port |
1 SATA(each max support 4TB) |
|||
Wireless port |
3G,WIFI(extension via USB port) |
|||
other |
Tour |
Yes |
||
Remote controller |
Yes |
|||
Power |
12V/2A |
|||
Dimension |
260(Length) x 221(Width) x 44(Height) |
|||
Beautiful & Hard & Quality & Colorful box.
Shipping:
1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door)
2. no problem if you have your own shipping agent ,we can send the goods to your forward
Delivery time:
1. within 3-25 days depends on your quantity in the case of normal.
2.OEM 10-25 days after receiving your sample confirmation and payment
1.OEM Service offered
2. Additional services : free logo printing ,free starting screen logo ,you can have your own designed package
3. all goods will have aging test carefully before shipment .
4. Free technicial support regarding the products.
P.s. Aging test is to make the cameras work in a warm testing room for at least 24 hours, in this way ,we can find the rejects timely before shipment.
Warranty time: 2 years
Return and Warranty:
Defective products must be returned within 7 days from the day you report the problem. Send it back and we will send you a replacement.
If Item is defective and not working, please report the item to us immediately in order for replacement or repairs to take place.
Or we need to have a good talk and get a win-win solution.
JUST KEEP IN MIND THAT:
we are a responsible company ,a realy factory.
we will conduct our warranty, not just saying it .
