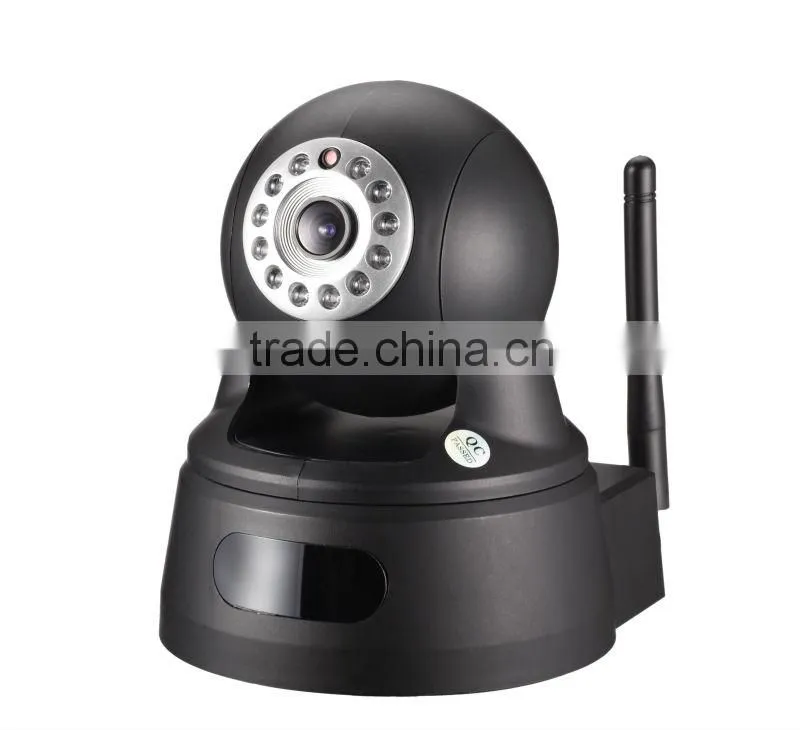

IP Camera Wireless Camera Module

IP Camera Wireless Camera Module thumbnail-1
IP Camera Wireless Camera Module photo-1
US$ 75 - 79 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bessky/ OEM
Model Number:
BE-IPH01W
Contact Supplier Request Quote Chat Now
Shenzhen Tonsee Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Bessky/ OEM
Model Number BE-IPH01W
Type Digital Camera
Style Dome Camera
Sensor CCD
Technology Infrared
Special Features Other

Specifications

IP Camera wireless camera module
2.0MP pixel
Support P2P
12 PCS IR Led
3.6mm Lens

 IP Camera wireless camera module

Feature:
-2.0 Megapixel CMOS Sensor
-3.6MM Lens
-12 IR LEDs  ,10M Infrared Lamp Range
-H.264 Compression Format
-Support P2P
-Transmission up to 15FPS/2MP
-Support two way audio
-DC 5V,2A.
-support latest Onvif protocol
Support TF Card(Max 32GB)



















Specification:
Item BE-IPH01W
Device 2.0 Megapixel CMOS Sensor
Size 1/4 inch
Effective Pixels 2MP:1600*1200,1MP:1280*720
Min.Scene Illumination 0.5 LUX(IR ON)
B/W Yes
IR Sensitivity Yes
IR Cut Yes
Lens 3.6mm
Viewing Angle    Horizontal350°vertical 90°
System Internal Linux system
IR distance 10 M
Motion Detection Yes
BLC Yes
AGC Auto
White Balance Fixed Aperture F1.2
S/N Ratio >50 dB
Video Compression H.264
Picture Resolution Main Flow:
1600*1200@15fps
1280*720@25fps
Minor Flow:
640*360@25fps
160*112@25fps
Bit Rate 32 K~ 4.0 M bps
Image Frame Rate 15 FPS
Audio Compression G.711
Two way audio support

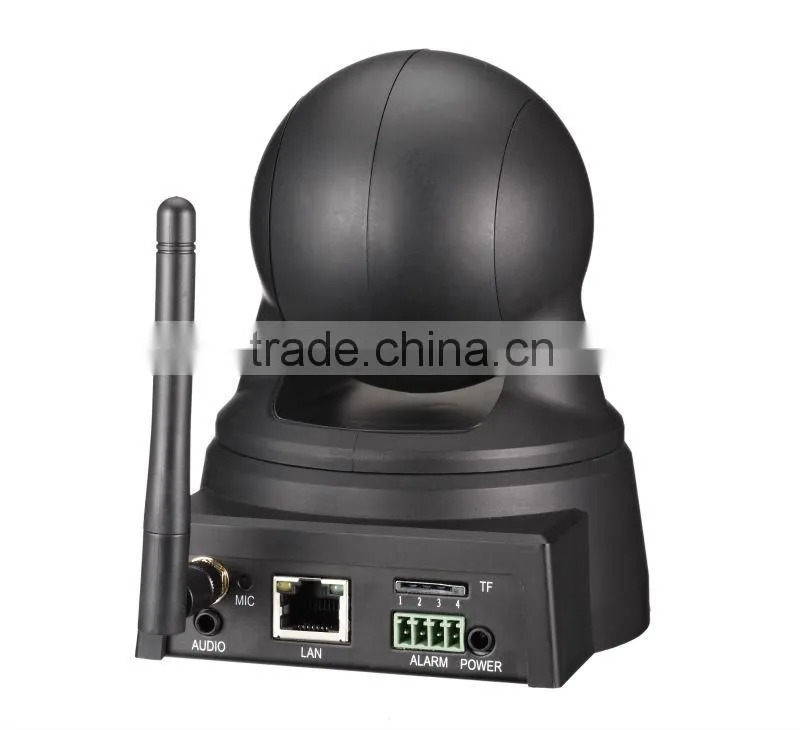

Alarm I/O 1 channel in/out put
Ethernet Ethernet (10/100 Base-T),RJ-45 connector
Protocol HTTP/DHCP/IP/TCP/UDP/DDNS/RTSP/SMTP; WIFI/ 802.11/b/g
Web Browser support Internet Explorer,Firefox,Google
Mobile phone Support Iphone,Android
Remote Support DDNS,P2P
Temperature -10°~60°C
Humidity 20-80%
Power Comsumption DC 5V,2A
Dimension 100*99*118MM L*W*H
Weight 0.5KG
Certification CE ,FCC













...
