Place of Origin Taiwan, China
Brand Name OEM
Model Number IR
Type Air Wrench
Average Air Consumption 4.5
Maximum Torque 570Nm
No-Load Speed 7,000rpm



This is the most popular air tool in its class.

It offers the sheer power and performance features to tackle the toughest jobs with ease as well as proven durability and economy.

1. Durable twin hammer impact mechanism.

2. Pressure-feed lubrication.

3. Adjustable power regulator.

4. Easy to service two-piece construction.

5. Variable-speed.






Product Description

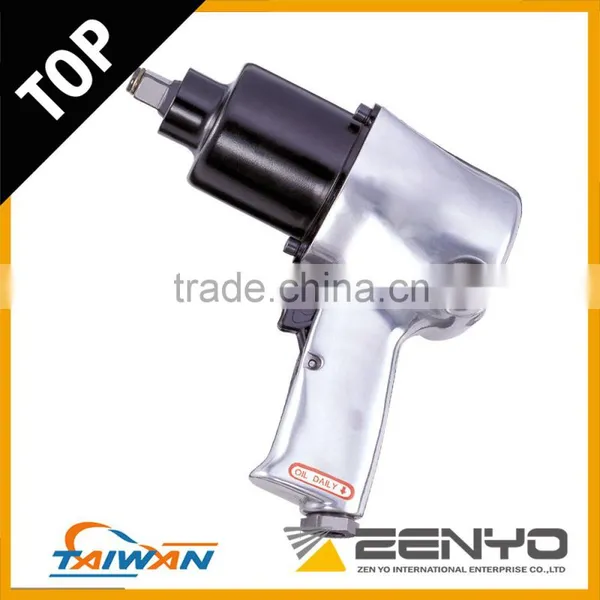

1/2" Heavy Duty Air Impact Wrench

Spec.:

Impact Mechanism  : Twin Hammer

Square Drive           : 1/2"

Capacity Bolt Size   : 5/8" (16mm)

Free Speed             : 7,000 RPM

Max. Torque            : 420 ft-lbs/ 570Nm

Vibration(m/s2)        : 9.0

Sound LeveldB(A)   : 96

Air Pressure (PSI)   : 90

Air Inlet(NPT)          : 1/4"

Avg. Air Cons. (CFM) :  4.5

Packing : 10 PCS/CTN/1.5 CU'FTS/26/27 KG

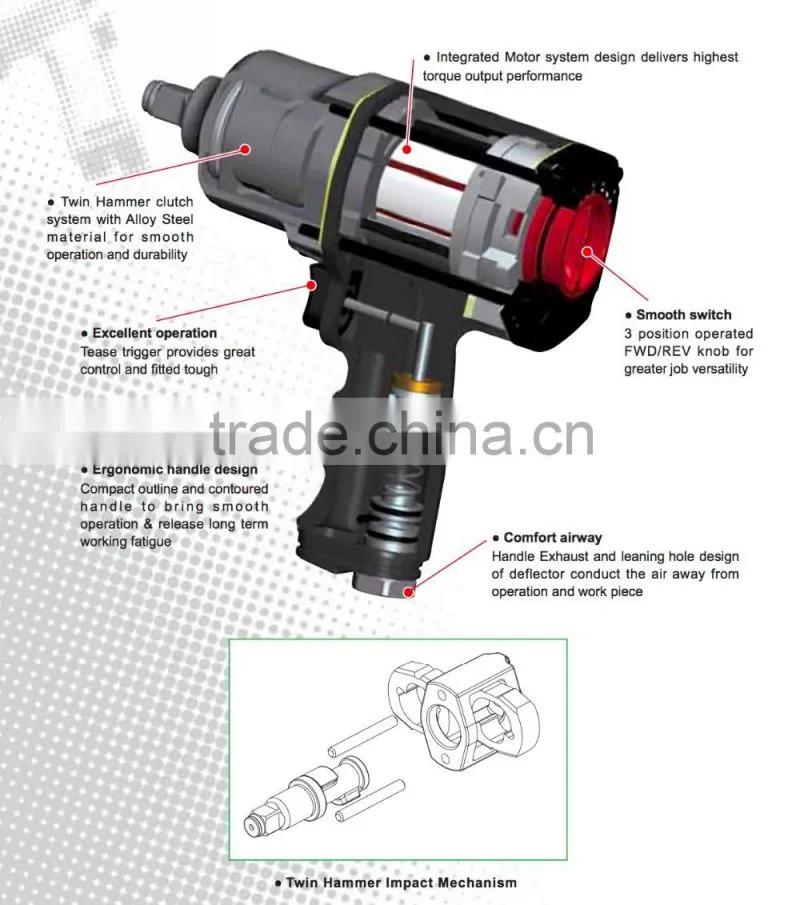

Twin Hammer

This hammer machanism has two idetical hamers that deliver an instantaneous balance blow, reducing vibration and trasferring more torque to drive the end of the anvil than any other machanism in the market. This design is the most durable of hammer designs and is excellent for use in heavy-duty industrial applications.



Electric Impact Wrench Adjustable Torque Impact Wrench Air Impact Wrench



Composite Air Impact Wrench High Power and Light Weight

Electric Impact Wrench Adjustable Torque Impact Wrench Air Impact Wrench








1/2" Composite Air Impact Wrench



Square Drive 1/2" 1/2" 1/2"
Capacity Bolt Size 5/8"(16mm) 5/8"(16mm) 5/8"(16mm)
Hammer Mechanism Twin Hammer Twin Hammer Pin Cluch
Max Torque 750ft-lbs/1017Nm 750ft-lbs/1017Nm 650ft-lbs/880Nm
Free Speeed  8,000RPM 8,000RPM 7,500RPM
Recmmand Air Pressure 90PSI 90PSI 90PSI
Air Inlet(PT, NPT) 1/4" 1/4" 1/4"
Min. Hose Size 3/8" I.D. 3/8" I.D. 3/4" I.D
Avg. Air Consumption 4.5 CFM 4.5 CFM 4.5 CFM
Over Length 195mm 195mm 210mm
Product Weight 1.90kgs(4.2Lbs) 1.90kgs(4.2Lbs) 2.10kgs(4.6Lbs)
Packing(PCS/N.W./G.W./Cuff) 10/21kgs/22kgs/1.5' 10/21kgs/22kgs/1.5' 12/24kgs/25kgs/1.5'
  Forward: 3 Speed Forward: 3 Speed Forward: 3 Speed
  Reverse: 3 Speed Reverse: 2 Speed Reverse: 2 Speed





Packaging & Shipping



10 PCS/CTN/1.5 CU'FTS/26/27 KG
