Home > Products > Refrigeration Parts > High Torque 42mm Hybrid Stepper Motor
High Torque 42mm Hybrid Stepper Motor
USD $1 - $7
/ Piece
100 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Ningbo
You May Like
-
3 Phase 42mm 1.2 Degree Stepper Motor High Torque Stepper Motor
-
Nema 52 130mm Hybrid Stepper Motor High Torque
-
Nema42 30Nm 110mm Frame Size 2 Phase Hybrid Stepper Motor
-
85mm 2 Phase Hybrid Stepper Motor Nema 34 Engraving Machine
-
Nema24 60mm Stepper Motor 1.8 Degree Angle Small Torque
-
Round 57 High Torque Low Inertia Stepper Motor ISO9001
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | REFWORLD | Model Number: | RW-42HD |
| Step Angle(degrees): | ±5% |
Product Description

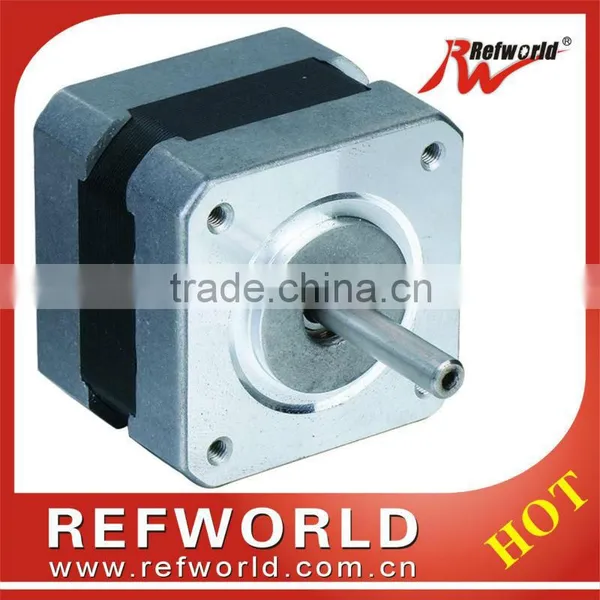

High Torque 42mm Hybrid Stepper Motor
About us
About product
Technical Features
Step angle accuracy :±5%
Ambient Temperature:-10°C~40°C
Temperature: 80K
Insulation Resistance:100M0hm min 500VDC
Insulation Class: B
Specification
| Model | Length | No.of Leads | Holdingtorque | Voltace | Current | Resistance | Inductance | Detenttorque | Weight |
| (mm) | (NO) | (Kg.cm) | (V) | (A) | (Ω) | (mH) | (g.cm) | (Kg) | |
| RW-42HD0003 | 34 | 6 | 1.3 | 12.3 | 0.28 | 44 | 21 | 150 | 0.2 |
| RW-42HD0005 | 34 | 4 | 2 | 1.65 | 15 | 1.1 | 1.6 | 150 | 0.2 |
| RW-42HD0001N | 34 | 4 | 2.8 | 12 | 0.4 | 30 | 37 | 150 | 0.22 |
| RW-42HD0002N | 34 | 6 | 1.6 | 12 | 0.4 | 30 | 21 | 150 | 0.22 |
| RW-42HD1001 | 38 | 4 | 3.5 | 12 | 0.4 | 35 | 50 | 180 | 0.23 |
| RW-42HD2001 | 40 | 4 | 4 | 12.5 | 0.5 | 25 | 50 | 200 | 0.25 |
| RW-42HD2002 | 40 | 6 | 2.2 | 2.4 | 0.8 | 3 | 2.8 | 200 | 0.25 |
| RW-42HD4001 | 48 | 4 | 4.2 | 12 | 0.4 | 30 | 45 | 260 | 0.38 |
| RW-42HD4408N | 48 | 4 | 4.5 | 2.8 | 1.68 | 1.65 | 2.8 | 260 | 0.38 |
| RW-42HD9402N | 60 | 4 | 6.5 | 9.6 | 1.2 | 8 | 8 | 300 | 0.5 |

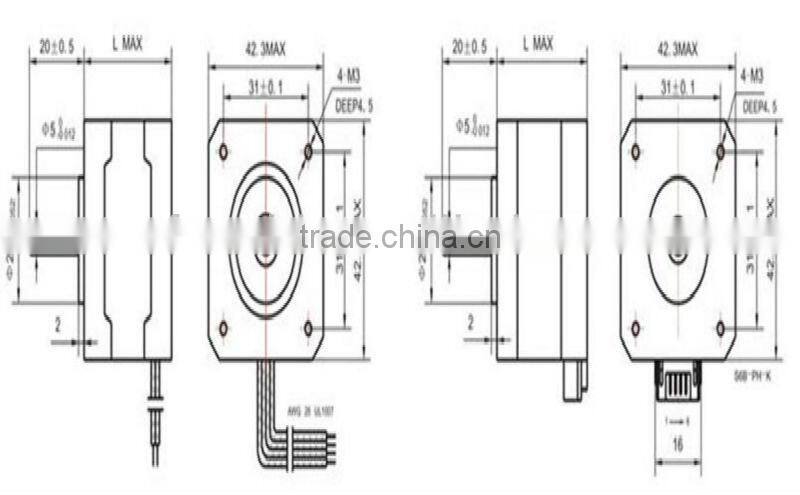

Figure Dimension

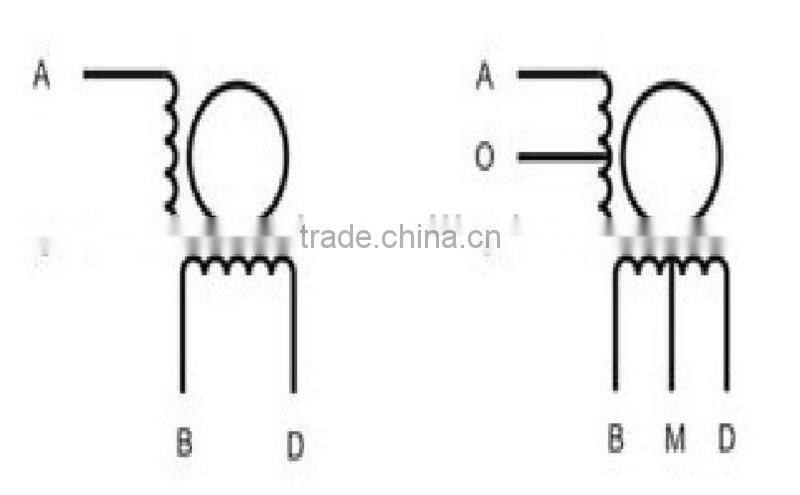

Wiring Diamgram

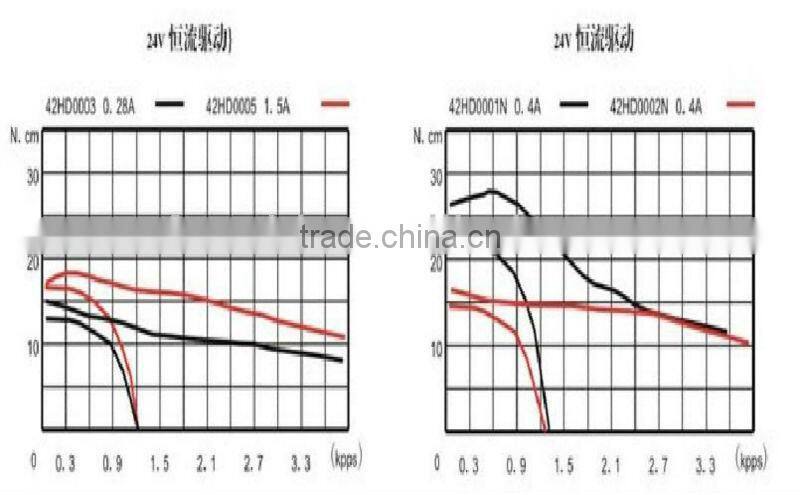

Torque Frequency

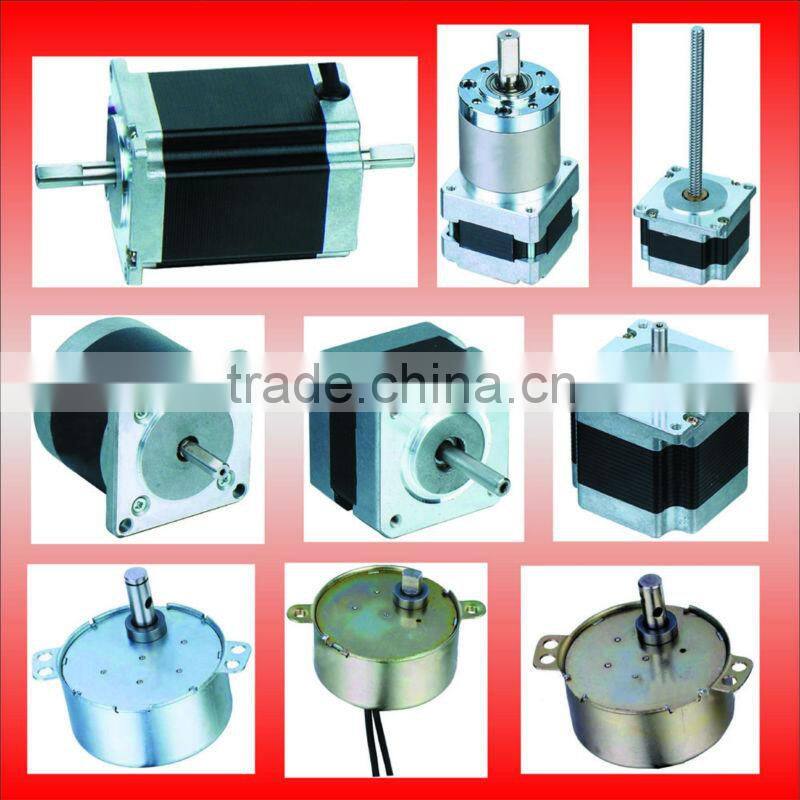

Other motor we supply
Welcome to contact us
Contact Us
- Ningbo Refworld Import And Export Co., Ltd.
- AddressNo. 2, 4th Xinheng Road, Cicheng Town, Jiangbei District
