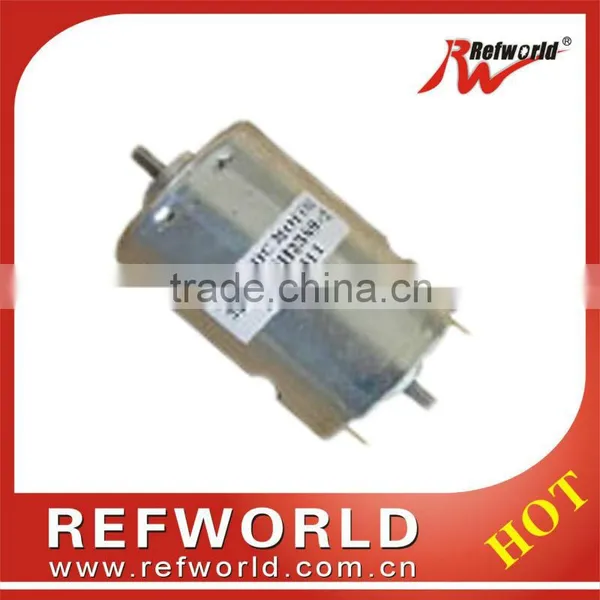

Brush DC Motor

Brush DC Motor thumbnail-1
Brush DC Motor photo-1
US$ 1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
REFWORLD
Model Number:
RW-36ZYT
Contact Supplier Request Quote Chat Now
Ningbo Refworld Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name REFWORLD
Model Number RW-36ZYT
Usage Car, Home Appliance
Certification CE, UL
Type Servo Motor
Torque Huge
Construction Permanent Magnet
Commutation Brush
Protect Feature Drip-proof
Speed(RPM) High Speed
Continuous Current(A) 0.8(A)
Output Power 200W
Voltage(V) 12V
Efficiency IE 1

About us







About product





Application

Electric tool,pump,medical device Etc



Characteristics

Compact design, low cost, reliable operation, easy replacement,optional mounting,optional IP rating.



Specification



Model   NO-Load Parameter Load Parameter Length
Voltage Speed Current Torque Speed Current
VDC r/min A Mn.m r/min A
RW-36ZY40SH5045 6 8400 ≤0.8 21.6 7200 ≤5.2 50
12 16800 ≤1 29.4 14800 ≤7.2 50
RW-36ZY40SH7522 4.8 13100 ≤1.5 28.3 11530 ≤13 50
RW-36ZY45SH2345 12 16000 ≤1 10 15000 ≤3 50
RW-36ZY45SH2389-1 12 4000 ≤0.3 15 3000 ≤0.85 50
RW-36ZY45SH2485 24 10000 ≤0.6 22.8 8450 ≤2 50
RW-36ZY45SH4032 12 19400 ≤1 16.7 16250 ≤4.9 50
RW-36ZY45SH18150 24 5600 ≤0.2 15.7 4500 ≤0.65 50
RW-36ZY45SH22100 24 8500 ≤0.25 20.5 7130 ≤1.3 50
RW-36ZY50SH5045 12 13000 ≤0.8 37.1 10000 ≤6.5 50
RW-36ZY50SH26150 24 7300 ≤0.2 26.5 6000 ≤1.35 57
RW-36ZY50SH6530 6 9000 ≤1 32.7 7900 ≤8.5 57
7.2 10700 ≤1.5 40.1 8500 ≤9.5 57
RW-36ZY50SH7522 7.2 14500 ≤2 38.2 12000 ≤12 57
RW-36ZY55SH2670 12 4500 ≤0.25 18.6 3600 ≤1.1 57
24 4500 ≤0.15 18.6 3600 ≤0.6 57
RW-36ZY55SH4525 6 6000 ≤0.8 21.3 5100 ≤3.5 57
12 12400 ≤1 32.4 10800 ≤6.8 57

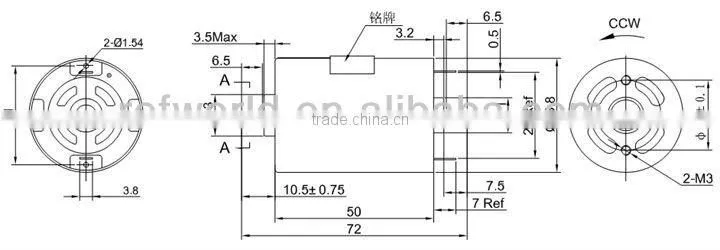

Brush DC motor





Other  motor  we  supply





 Brush DC motor





Welcome to contact us



Brush DC motor
