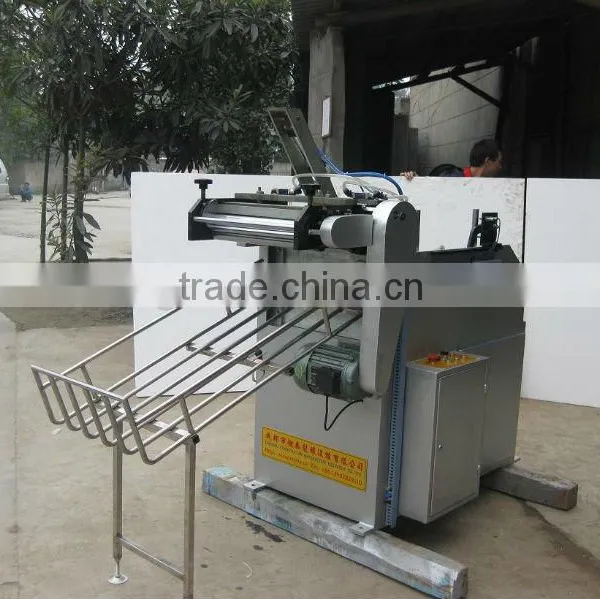

ZDJY45-450 Automatic can machinery/roll forming machine food cans/roll forming machine
1.The main technical data
Model |
ZDJY45-450 |
Production capability |
10~45Cans/min |
Applicable can height |
99~300mm |
Applicable can diameter |
70~450mm |
Applicable material |
tinplate |
Applicable material thickness |
0.15~0.42mm |
Applicable material hardness |
T2.5-DR8 |
Compress air consumption |
600L/min |
Pressure of compress air |
0.5 MPa ~0.7MPa |
Power |
380V , 50Hz , 1KW |
Dimension |
2100×1000×1400mm |
Weight |
350Kg |
2.Technology process
Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling
3.Applicable types of products
aerosol cans, food cans, beverage cans, chemical cans , paint pot and square bucket etc.
