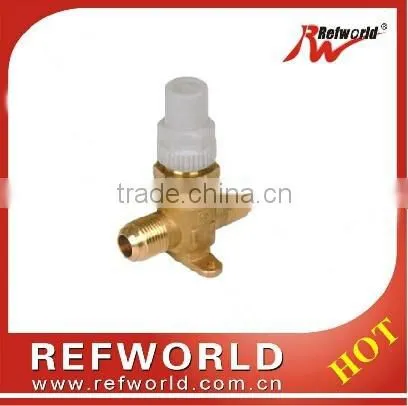

BLR Series Refrigeration Brass Shut Off O-ring Type Diaphragm Hand Valve
US$ 1 - 5
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
refworld
Model Number:
BLR-6210/2
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BLR/MG Series Solenoid Valve UL With Coil Magnet for R410AUS$ 1 - 5MOQ: 50 Pieces -
BLR Series Forged Steel High Pressure Piston Lift Check ValveUS$ 1 - 5MOQ: 50 Pieces
-
BLR/USV Unloading Valve Discharge Solenoid ValveUS$ 1 - 5MOQ: 50 Pieces
-
BLR/MSV Full Weld Ball Valve Api Valve Membran Solenoid ValveUS$ 1 - 5MOQ: 50 Pieces
-
BLR/FRV Series Air Conditioner 4 Way Reversing ValveUS$ 1 - 5MOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
refworld
Model Number
BLR-6210/2
Type
Other, valve
Application
Refrigeration Parts
Certification
CE
BLR Series Refrigeration Brass Shut Off O-ring Type Diaphragm Hand Valve
General Description
BLR type hand valve is a manual shut-off valve designed for installation in the liquid ,suction and hot gas lines of refrigeration plant.
It doesn't have gland seal. The external sealing is ensured by some thin metal discs(diaphragms),which hermetically divide the spindle chamber from the fluid flow area.
Feature
Applicable to all fluoride refrigerants
Fitted with three stainless steel diaphragms that prevent leakage throughout the operating life of the valve.
Valve plate of polyamide nylon to give complete shut with minimum torque.
Valve cover with special designed to prevent ingress of moisture

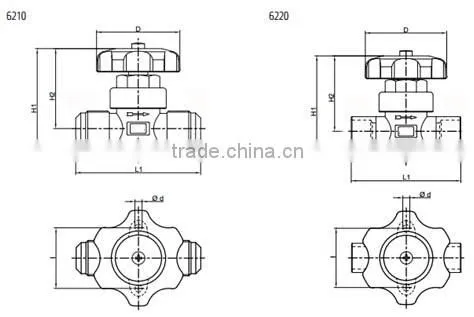

| Technical Data | |||||||||||
| Model | Connection | Dimensions(mm) | Weight(g) | Temperature Range(℃) | Max Working Pressure(Bar) | KV Factor (m³/h) | |||||
| H1 | H2 | L1 | d | I | D | ||||||
| BLR-6210/2 | 1/4" SAE | 68 | 53.5 | 58 | 4.5 | 36 | 52 | 200 | -30 to +90 | 28 | 0.28 |
| BLR-6210/3 | 3/8" SAE | 72 | 74 | 38 | 325 | 1.00 | |||||
| BLR-6210/4 | 1/2" SAE | 78 | 335 | 1.30 | |||||||
| BLR-6210/5 | 5/8" SAE | 340 | 1.80 | ||||||||
| BLR-6210/6 | 3/4" SAE | 86 | 62.5 | 98 | 6.2 | 50 | 60 | 655 | 3.65 | ||
| BLR-6220/2 | 1/4" ODF | 68 | 53.5 | 53 | 4.5 | 35 | 52 | 195 | 0.28 | ||
| BLR-6220/3 | 3/8" ODF | 72 | 61 | 38 | 300 | 1.00 | |||||
| BLR-6220/4 | 1/2" ODF | 70 | 305 | 1.30 | |||||||
| BLR-6220/5 | 5/8" ODF | 71 | 1.80 | ||||||||
| BLR-6220/6 | 3/4" ODF | 86 | 62.5 | 92 | 6.2 | 50 | 60 | 580 | 3.65 | ||
| BLR-6220/7 | 7/8" ODF | 94 | 645 | 3.65 | |||||||
