350mm RW-AF SERIES AXIAL FAN MOTOR

350mm RW-AF SERIES AXIAL FAN MOTOR thumbnail-1
350mm RW-AF SERIES AXIAL FAN MOTOR thumbnail-2
350mm RW-AF SERIES AXIAL FAN MOTOR photo-1
350mm RW-AF SERIES AXIAL FAN MOTOR photo-2
US$ 1 - 20 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
refworld
Model Number:
RWAF2D-350
Contact Supplier Request Quote Chat Now
Ningbo Refworld Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name refworld
Model Number RWAF2D-350
Type Refrigeration Compressor
Application Refrigeration Parts
Certification CE

350mm RW-AF SERIES AXIAL FAN MOTOR





Summarize of products
RWAF series axial fan motors have two types,single phase asynchronous capacitor
run fan motor and three phases  asynchronous fan motor,they are widely used in condenser,
evaporator and other refrigeration equipment and ventilating cycle areas.
The standard length of the electrical wire is 1.5m,we can also supply the fan motors
with connection box for clients' choice.
We got CE and CCC certificate



350mm RW-AF SERIES AXIAL FAN MOTOR350mm RW-AF SERIES AXIAL FAN MOTOR

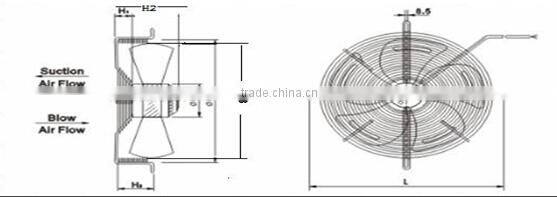

Techinal Date
MODEL VOLTAGE
(V)		 FREQUENCY
(HZ)		 CURRENT
(A)		 INPUT
 (W)		 SPEED                (r/min) AIR VOLUME (m3/h) NOISE     (dBA)     DIMENSION (MM)
H2 H3 L ΦD2 ΦD3
RWAF2D-200 380 50/60 0.16  70/90 2650/3000 870/1000 60   1.9 100 50 250 220 195
RWAF2E-200 230 50/60 0.35/0.42 80/95 2700/3200 870/1000 60   1.9 100 50 250 220 195
RWAF4E-200 230 50/60 0.12/0.17 29/38 1460/1650 490/560 48   1.9 100 50 250 220 195
RWAF2E-250 230 50 0.78  180 2500 1800 68   3 102 75 320 282 250
RWAF2D-250 230 50 0.30  160 2550 1800 68   3 102 75 320 282 250
RWAF4D-250 380 50/60 0.13/0.15 60/70 1350/1550 1000/1200 50   2.5 94 75 320 282 250
RWAF4E-250 230 50/60 0.22/0.29 50/65 1380/1530 1000/1150 50   2.5 94 75 320 282 250
RWAF4E-300 230 50/60 0.38/0.48 90/115 1370/1500 1700/1900 55   4 114 75 360 322 300±1
RWAF4D-300 380 50/60 0.26/0.24 95/120 1400/1600 1750/1950 55   4 114 75 360 322 300±1
RWAF6E-300 230 50/60 0.3/0.34 65/70 900/1050 1160/1380 45   3.2 102 75 360 322 300±1
RWAF2E-300 230 50 1.10  250 2530 3000 70   4.7 133 80 360 322 300±1
RWAF2D-300 380 50/60 0.45/0.53 250/340 2500/2640 3000/3200 72   4.7 133 80 360 322 300±1
RWAF4E-350 230 50/60 0.68/0.82 138/190 1370/1500 2980/3550 62   4.7 133 80 422 375 350±2
RWAF4D-350 380 50/60 0.37/0.35 145/185 1390/1560 3110/3550 63   4.7 133 80 422 375 350±2
RWAF6E-350 230 50/60 0.4/0.42 80/95 930/1100 2200/2550 53   4.7 133 80 422 375 350±2
