Help CenterDefinite Purpose Contactor
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
REFWORLD
Model Number:
RW-1.5P40A
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
REFWORLD
Model Number
RW-1.5P40A
Electricity Type
AC
Number of Pole
1
Phase
1
Main Circuit Rating Voltage
Other, 24/120/208/240/277/480V
Main Circuit Rating Current
Other, 40A
Specifications
a.1-poles definite purpose contactor,air conditioner contactorb.24VAC,120VAC,240VAC,277VAC coil
c.UL listing 40FLA
♦1 Pole No with or without shunt
♦Silver Cadmium Oxide Contacts
♦UL Class NLDX8
♦CAS File Class 321104 /321184
Contact Rating-Single Circuit 1 NO/1 NC
Voltage Rating
120VAC
240VAC
480VAC
600VAC
Amperes-Break
3
1.5
75
6
Amperes-Make
30
15
75
6
Amperes-Continuous
10
10
10
10
| Contact Rating-SPDT | ||
| 10A,1/3HP,125 or 250 VAC | ||
| 1/2A,125VDC | ||
| 1/4A,250VDC | ||
| 4A,120 VAC on lamp load | ||

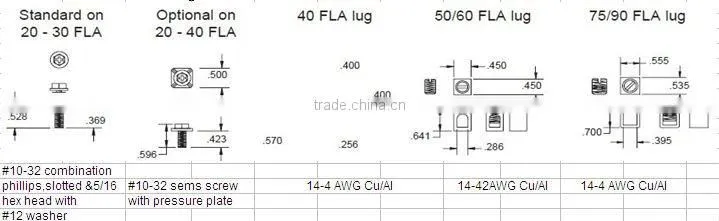

Terminals
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2010
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
