Experimental type connecting terminal
USD $1 - $20
/ Piece
1000 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Ningbo or Shanghai
You May Like
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | REFWORLD | Model Number: | RW-4S/6S |
Type: | Other, connecting terminal |
Product Description

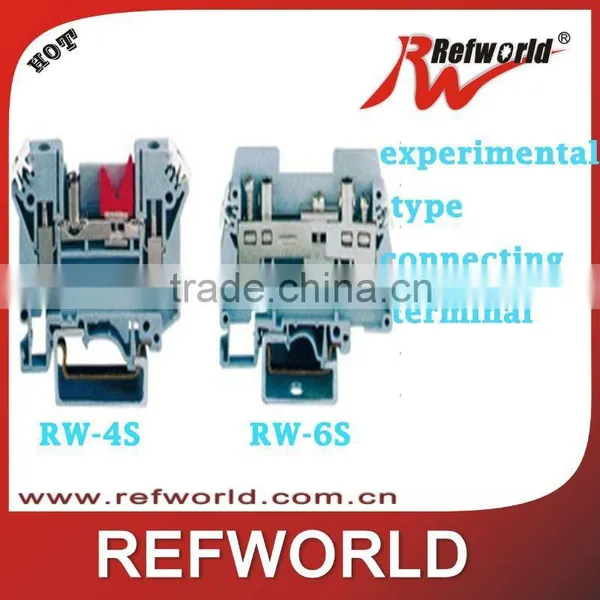

Experimental type connecting terminal
Characteristics of application: | |||||||||||
JHD series terminal blocks features compact,reasonable structure,beautiful shape ,wide installing filed.It can be installed on TH35 and G32 type rail.When installation,it can be realized by elasticity of material and reasonable structre.The connection of lead can adapt the method of using screw to lift and press lead frame to press and jiont lead.It is not only convenient and compact structure but also does not damage the lead. |
Feature | Current | Voltage | connecting wire(mm2) | dimension | screw | ||
Model | single | double | w*h*t) | regulation | torque | ||
JHD-1.5 | 17A | 500V | 0.2-2.5 | 0.2-1.5 | 41×42.5×4.2 | m2 | 0.4Nm |
JHD-2.5 | 24A | 660V | 0.2-4 | 0.2-2.5 | 41×42.5×6.2 | m3 | 0.6Nm |
JHD-5 | 38A | 600V | 0.6-6 | 0.2-4 | 46×42.5×6.2 | m3 | 0.6Nm |
JHD-10 | 76A | 690V | 0.5-16 | 0.5-10 | 46×42.5×10.2 | m4 | 1.8Nm |
JHD-16 | 85A | 726V | 2.5-25 | 4-16 | 53×42.5×12.2 | m4 | 1.8Nm |
JHD-35 | 140A | 600V | 0.75-35 | 0.75-35 | 62×51×15.2 | m6 | 4Nm |
JHD-50 | 150A | 1000V | 16-50 | 25-50 | 86.5×70.5×20.2 | m6 | 4Nm |
JHD-95 | 232A | 1000V | 25-95 | 35-95 | 90×83×25.2 | m8 | 5Nm |
JHD-4s | 41A | 500V | 0.2-4 | 0.2-4 | 52×61×6.2 | m3 | 0.8Nm |
JHD-6s | 57A | 400V | 0.5-10 | 0.5-6 | 59×72×12.2 | m4 | 1.8Nm |
