Machine video:
/play/u/1738920583/p/1/e/6/t/1/19085046.mp4
Model No:CX-GFT
ODM Supplier liquid filling machine,120ml syrup filling machine factory
(Alibaba Trade assurance & TOP supplier)
(Here is Liquid filling machine,If you want dry syrup Powder Filling machine,we have both,please give us your valuable enquiry,we will reply you soon)

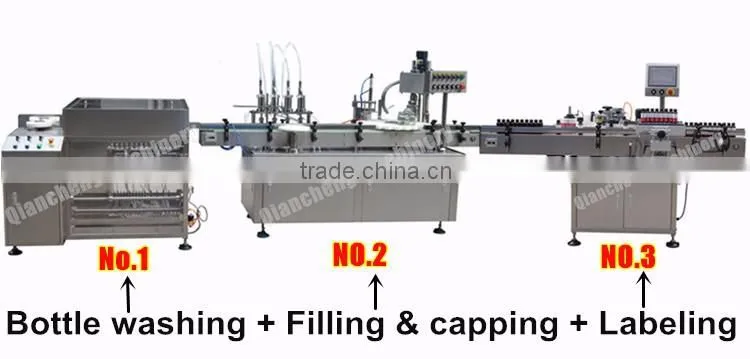

Tips:offered price is our filling and capping machine

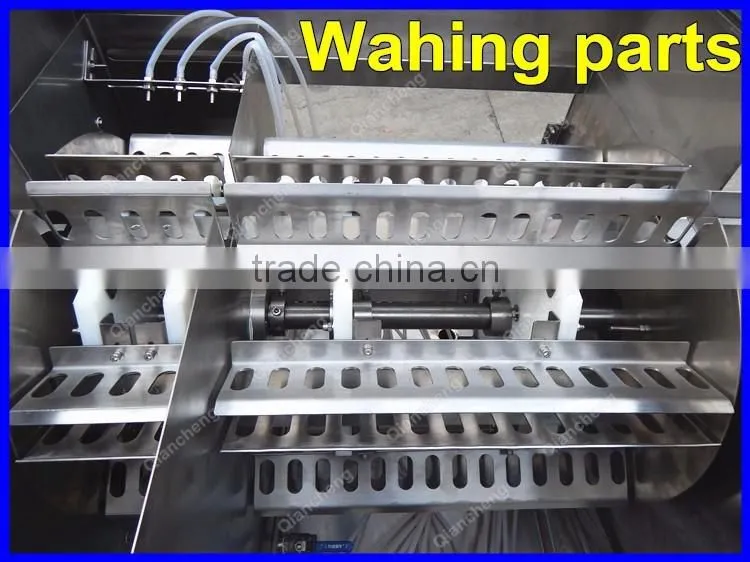

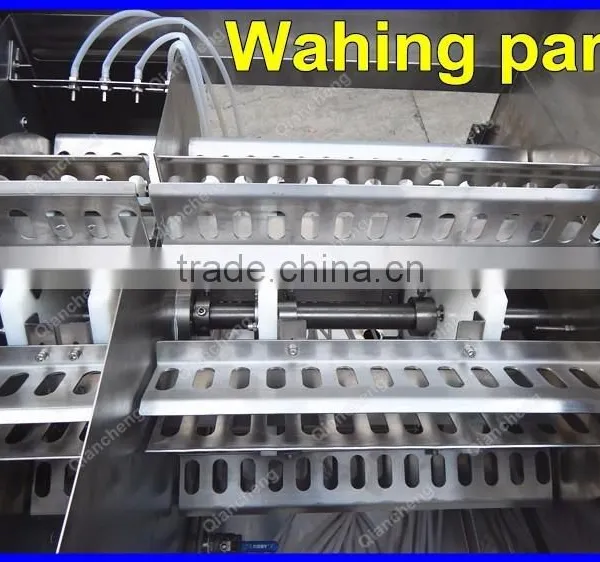

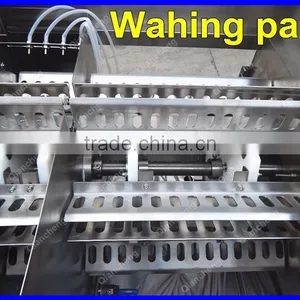

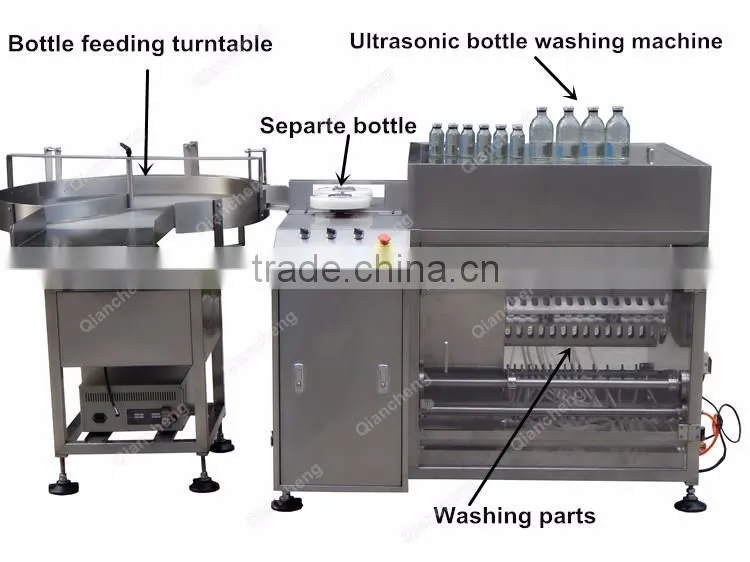

NO.1 Bottle washing machine
This machine is mainly suitable for 20-500ml shoulder all kinds of round bottles or special-shaped bottle to bottle cleaning inside and outside,
by two in water (tap water and ionized water,no oil compressed air) alternate irrigation. The bottle meet production process requirements, and
the initial dry bottle, etc. This machine can be wired or standalone use. This equipment is fully in line with the new version of GMP requirements

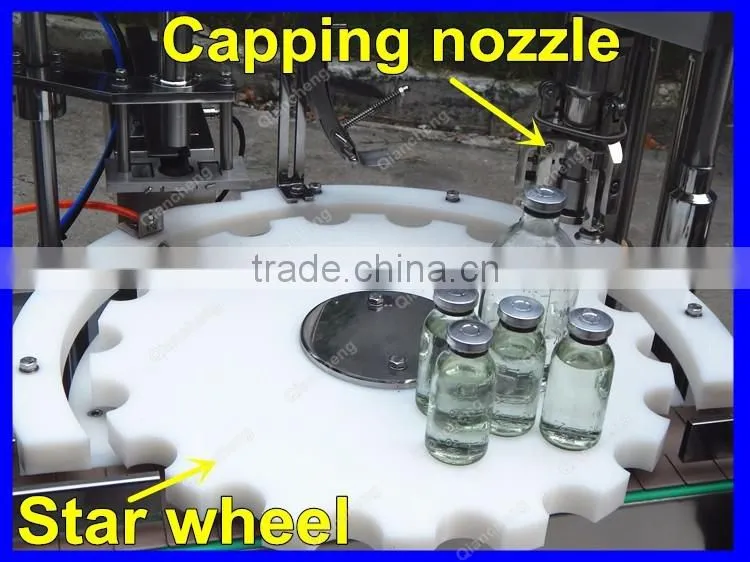

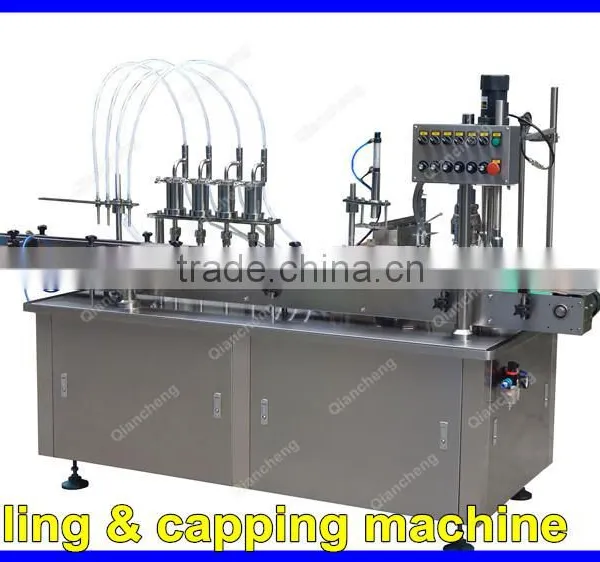

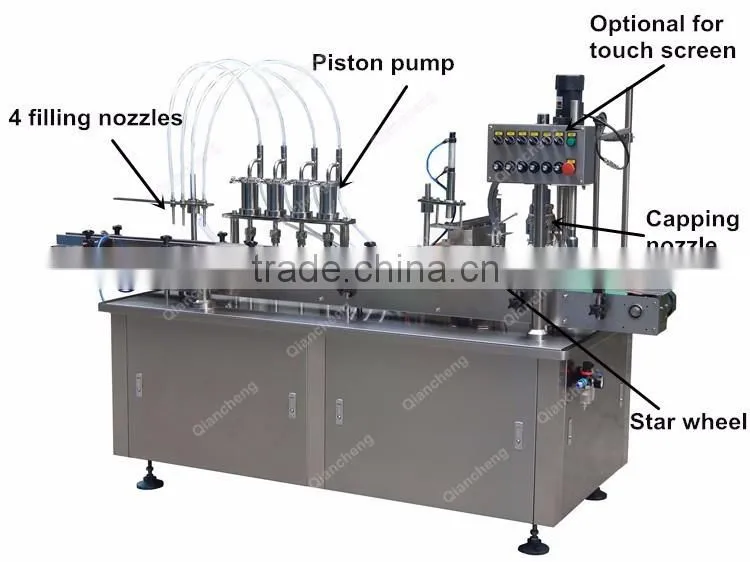

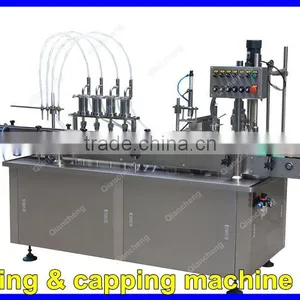

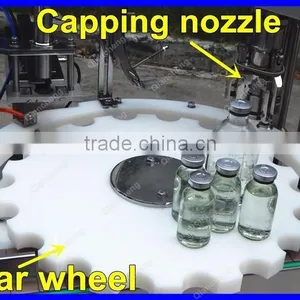

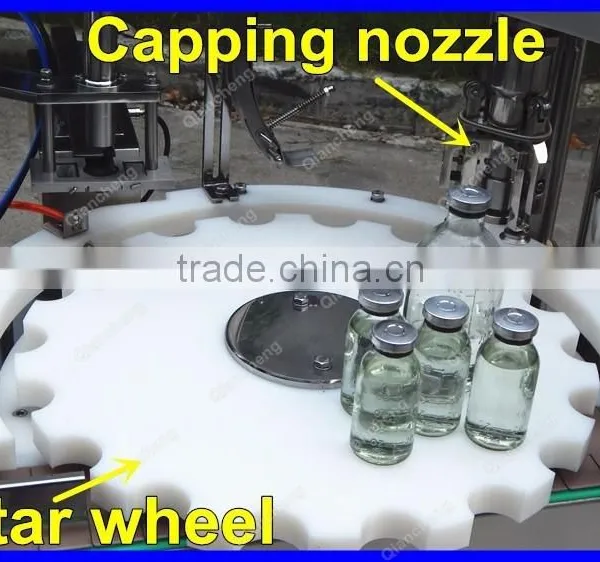

NO.2 Filling and capping machine
The machine can fit for Glass bottle and Plastic bottle both, one machine can fit for Aluminum cap/plastic cap/child proof caps...we can do the Customized machine.
Characteristic
1.The parts which contact liquid are SUS316L stainless steel and others are SUS304 stainless steel
2.Including feeder turntable,effective cost/space saving
3.It has intuitive and convenient operation, measuring accurate, positioning precision
4.Fully in accordance with the GMP standard production and passed CE certification
5. Optional Siemens Touch screen/PLC
6.No bottle no filling/plugging/capping
7.HS Code:8422303090
Main Technical Parameters
Applied Bottle |
50-500 ml |
Productive Capacity |
10-50pcs/min 4filling nozzles 50-60pcs/min 6 filling nozzles 60-80pcs/min 8 filling nozzles 80-100pcs/min 10 fillling nozzles 100-120pcs/min 12 filling nozzles |
Filling Tolerance |
0-2% |
Qualified Stoppering |
≥99% |
Qualified cap putting |
≥99% |
Qualified capping |
≥99% |
Power Supply |
380V ,50HZ |
Power |
1.5KW |
Net Weight |
600KG |
Dimension |
2500(L)×1000(W)×1700(H)mm |
Famous brand electrical parts
Machine frame |
SUS304 and SUS316L Stainless steel |
|
Peristaltic pump |
WATSON MARLOW Peristaltic pump (UK) |
|
Main Motor |
ABB |
Switzerland |
Inverter |
Japan |
|
Air Switch |
Schneider |
France |
Contactor |
Schneider |
France |
Relay |
Omron |
Japan |
OFA |
Autonics |
Korea |
Bearing |
IGUS |
Germany |
CAM indexer |
Shangdong |
China |
Turntable |
Plastic POM |
Japan |
Cylinder |
AIRTAC |
Taiwan |
Touch screen |
Siemens |
Germany |
PLC |
Siemens |
Germany |
Servo motor |
Delta |
Taiwan |

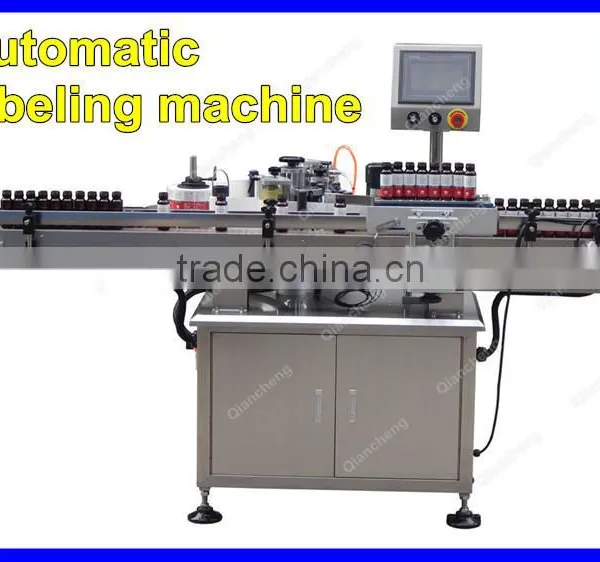

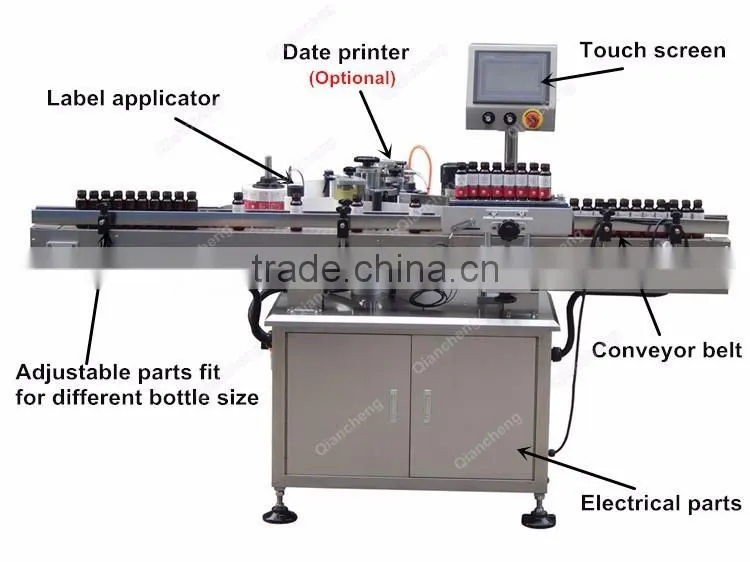

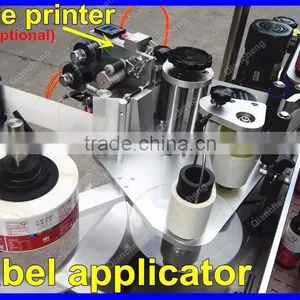

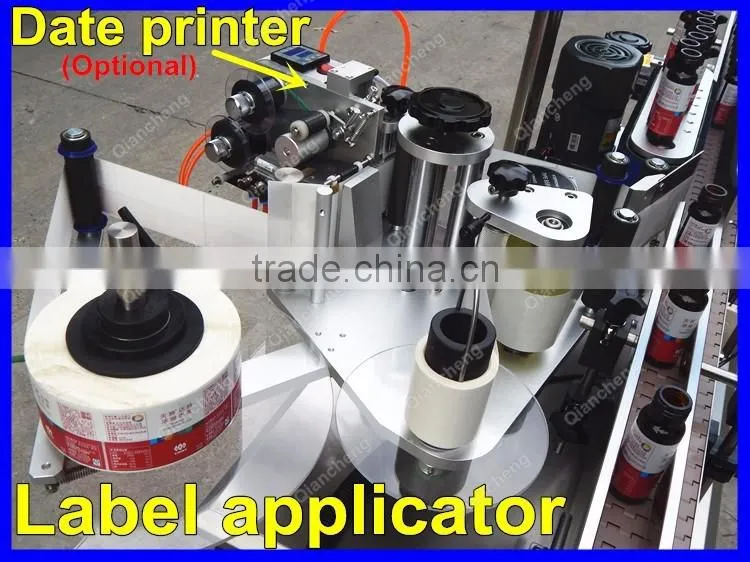

NO.3 Labeling machine
Characteristic
1. Widely used in commodity ,such as round bottles/cans/jars/tubes...
2. Adopt mature PLC control +touch screen control system technology .
3. Easy operation with reasonable price.
4. Ribbon date printer / collecting turntable is optional.
5. Best after-sale service, with one-year warranty, life-long maintenance
Main Technical Parameters
Machine size |
2000*800*1300mm |
Machine weight |
About 200kg |
Output speeed |
30-100pcs/min |
Labels details |
(L)25mm-300mm, (W) 20-90mm |
Bottles details |
(D)30-100mm ,(H)30-200mm |
Labeling accuracy |
±1mm (Depend on real bottle and label size) |
Label roll inside/outside diameter |
76mm / 300mm |
Power supply |
220V 0.75KW 50/60HZ |
After-sales service:
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial
factors within one year, we will freely provide them or maintain them for you. After one year, if you need
to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you
have technical question in using it, we will freely do our best to support you.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this
Contract. Quality guarantee period is within 12 months from B/L date. The Manufacturer would repair the contracted machines free of charge during the quality guarantee period. If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair parts cost.
Installation and Debugging:
The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer’s side
(round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.
Q1.Are you the factory?
A1:Yes,we are 15 YEARS manufacturer of filling-capping-labeling-bottle washing machine, our factory is in Shanghai.
Q2.What's the payment terms and trade terms for new customers?
A2: Payment terms:T/T,L/C,D/P,O/A, Western Union etc.
Trade terms:EXW,FOB,CIF,C&F...
Q3:What's the Minimum Order Quantity and warranty?
A3:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
Q4:Your certification please?
A4:CE/ISO/TUV/GMP
Shanghai Qiancheng Machinery Co., LTD. is located in China's economy, transportation, science and
technolgy, industry, finance, trade, exhibition and shipping center - Shanghai.
This is GDP in China's biggest city, Shanghai port cargo throughput and container throughput are first in theworld, excellent geographical location and convenient water, land, air traffic will push Shanghai ChengxiangMachinery Co., LTD. to the world.
Qiancheng Machinery through the quality policy, security measures to ensure customer satisfaction.Company passed ISO9001 quality certification and international CE certification, all of products comply with international GMP certification standards
Products are widely used in pharmaceutical, food and beverage, daily chemical, pesticides and cultural goods and other industries, product were sold to many countries and regions.Main products: automatic unscramble bottle machine, automatic feeder bottle turntable, automatic bottle washing machine, automatic filling machine,automatic screw capping machine,automatic labeling machine, automatic printing machine and other equipment, also can undertake according to the requirements of design, manufacture, installation of various liquid filling production line, powder filling line, paste filling line and other projects,
Qiancheng machinery has the business philosophy : Honesty innovation, provide competitive products;Sincere cooperation,foster famous brand image.the whole company with honesty and trustworthiness as the mission of enterprise development, the honest code of honor is always run through the whole course management, service and so on since it’s founded; On the business integrity of their staff, customers integrity, social integrity.
Qiancheng machinery,through their own efforts to continually research&development,create more advanced automatic equipment ,carefully designed and processed to create won brand to lay a solid foundation and make a contribution to the revitalization of national automation equipment
We are gold supplier and trade assurance of alibaba. if you order from us,you will enjoy discount and bussiness protect & safeguard from your order. please support us and we believe we can provide you higher quality and better service for you.
Welcome to our factory at any time. we have machine in stock for your visiting.
Order our machine,you will bring benefit and happiness together. you won't any worries during production in your country...
ODM Supplier liquid filling machine,120ml syrup filling machine factory
(CE/ISO/TUV/GMP)
