castel stop valve 1-3/8"

About us







About product

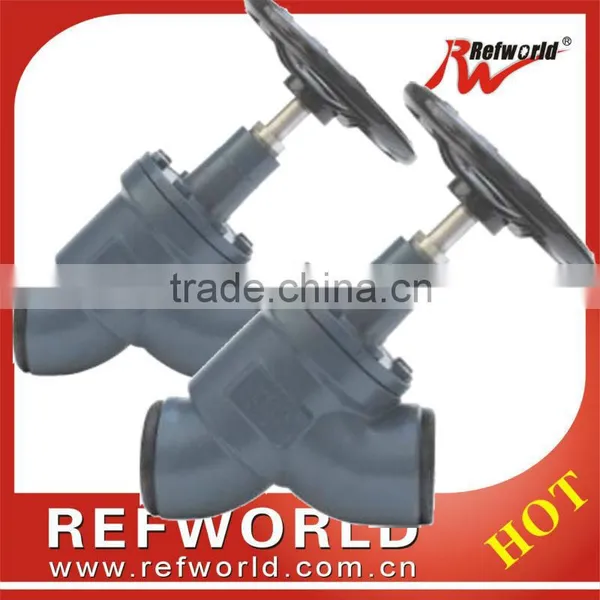

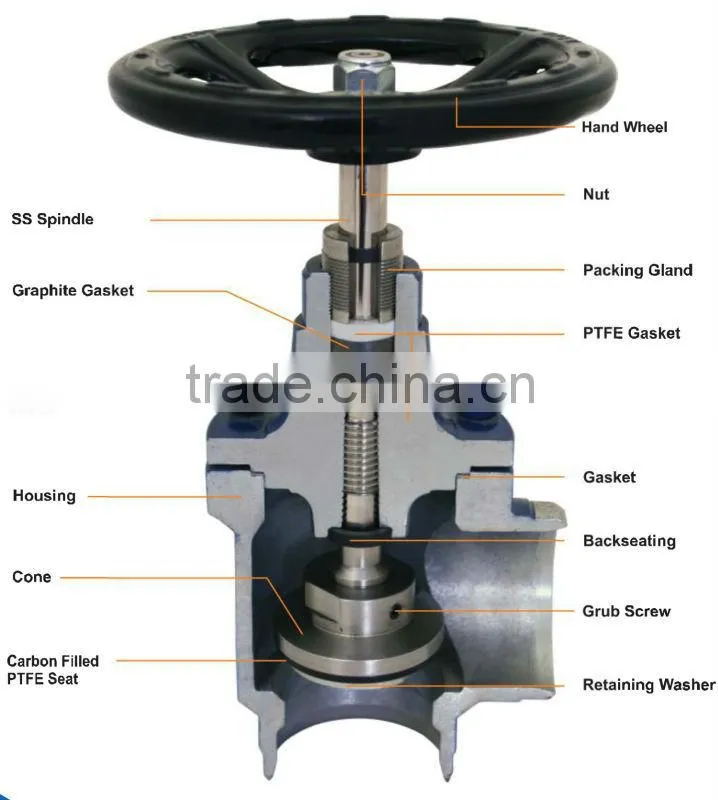

Exploded view





 castel stop valve 1-3/8"

Introduction

  • Refrigetants

Applicable to all common non flammable refrigerants including R717 and non corrosive gases/liquids dependent on sealing material compatability.For further information please see installation instruction for CSVA

  • Temperature range
Standrad version:-46/+150°C
  • Pressure range
The valves are designed for max ,working pressure 40 bar(580psig)


Features
  • Housing
Made of special,cold resistant steel
  • Value cone
The value cone can be  turned on the spindle,thus there will be no friction between the cone and the seat ,when the value is opened and closed.
  • Spindle

Made of polished stainless steel so that PTFE and Graphite gaskets are not damaged.

  • Sealing
Spindle sealing is done with PTFE and Graphite gaskets assuring 100% sealing.


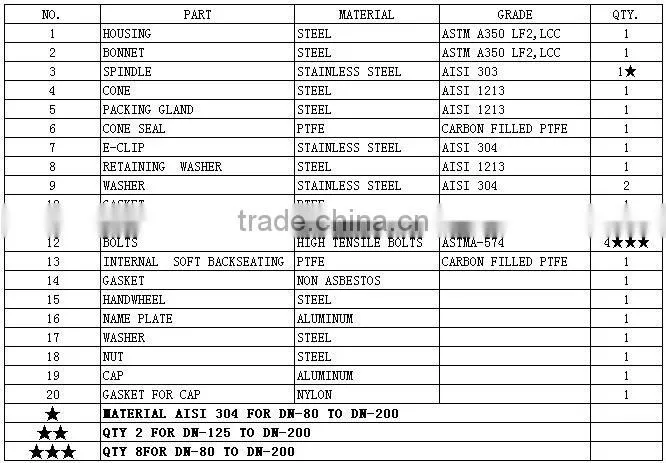

Material Specifications
 castel stop valve 1-3/8"



 castel stop valve 1-3/8"







Dimensions and weights

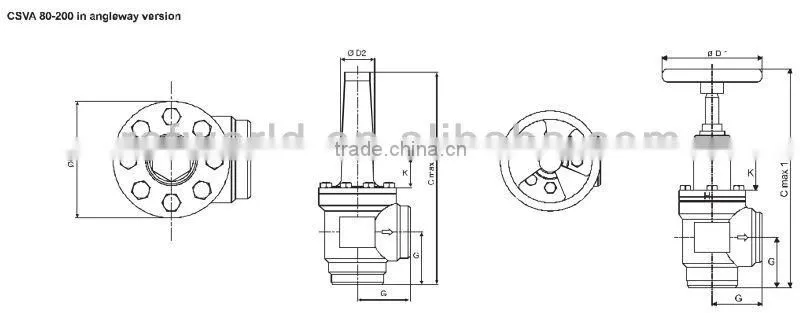

castel stop valve 1-3/8"



Value size K Cmax1 Cmax2 G øD1 øD2 DH Weight



CSVA-BUTT WELD



CSVA 80  mm
CSVA(3) in 		45
1.77		 334
13.14		 368.5
14.50		 90
3.54		 200
7.87		 58
2.28		 131
5.15		 8.3kg
18.3Ib
CSVA 100 mm
CSVA(4)   in 		45
1.77		 379
14.92		 4.5
15.94		 106
4.17		 200
7.87		 58
2.28		 155
6.10		 14.2kg
31.2Ib
CSVA 125 mm
CSVA(5) in 		90
3.54		 517
20.35		 533
20.98		 128
5.04		 320
12.59		 74
2.91		 210
8.26		 28.1kg
61.9Ib
CSVA 150 mm
CSVA(6)   in 		90
3.54		 564
22.20		 568
22.36		 145
5.71		 320
12.59		 74
2.91		 219
8.62		 39.7kg
87.5Ib
CSVA 200 mm
CSVA(8)   in 		90
3.54		 675
26.57		 678
26.69		 180
7.09		 320
12.59		 86
3.39		 276
10.87		 79.5kg
175.3Ib



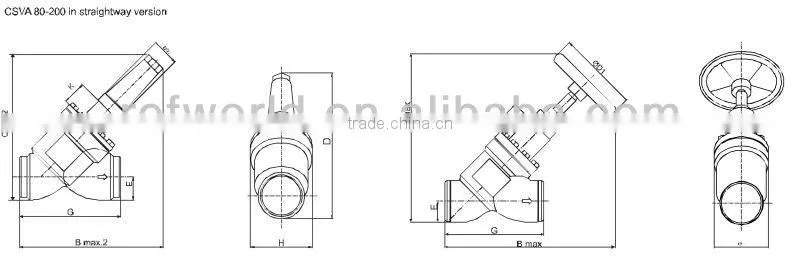

castel stop valve 1-3/8"







Value size K Cmax1 Cmax2 Bmax1 Bmax2 G E øD1 øD2 DH Weight



CSVA-BUTT WELD



CSVA 80 mm
CSVA(3) in 		45
1.77		 332
13.07		 311
12.24		 331
13.03		 307
12.08		 216
8.50		 49.8
1.96		 200
7.87		 58
2.28		 131
5.15		 10.1kg
22.2Ib
CSVA 100      mm
CSVA(4)     in 		45
1.77		 381
15.00		 350
13.77		 370
14.56		 343.5
13.52		 264
10.39		 60.7
2.39		 200
7.87		 58
2.28		 157
6.18		 17.2kg
37.84Ib
CSVA 125      mm
CSVA(5) in 		90
3.54		 538
21.18		 456
17.95		 526
20.7		 444
17.48		 322
12.67		 75
2.96		 320
12.59		 74
2.91		 210
8.26		 32.8kg
72.16Ib
CSVA 150     mm
CSVA(6 ) in 		90
3.54		 594
23.38		 505
19.88		 572
22.51		 486
19.02		 370
14.57		 91
3.59		 320
12.59		 74
2.91		 219
8.62		 60kg
132Ib
CSVA 200     mm
CSVA(8) in 		90
3.54		 726
28.58		 613
24.13		 692
27.24		 579
22.80		 464
18.27		 117
4.61		 320
12.59		 86
3.39		 276
10.87		 111.5kg
245.8Ib







Ordering



     Please note that the type codes only serve to identify the values,some of which may not form part of the standard pruduct range.For futher information please contact us!



Value type CSVA Shut off value
Nominal size in mm
(value size measured
 on the connection dianeler)		   Available connections
    A/D SOC FPT
15 DN 15(½) × × ×
20 DN 20(¾) × × ×
25 DN 25(1) × × ×
32 DN 32(1¼) × × ×
40 DN 40(1½) × ×
50 DN 50(2) × ×
65 DN 65(2½) ×
80 DN 80(3) ×
100 DN 100(4) ×
125 DN 125(5) ×
150 DN 150(6) ×
200 DN 200(8) ×
connections A Butt-weld connection:ANSI B36.10 schedule 80,DN15-40(½-1½.)
Butt-weld connection:ANSI B36.10 schedule 40,DN50-200(1-8 in.)
D Butt-weld connection:DIN2448
SOC Socket weld:ANSI B 16.11
FPT Female Pipe Thread NPT:ANSI/ASME B 1.20.1
T Outside threaded connections ISO 228/1 Pipe thread
Values housing AV Angle flow
ST Straight flow
Other equipment H-SHEEL Hand-wheel
CAP Cap
Example CSVA-AV-15-Soc-H-Wheel
This is a castle shut off value for Ammonia with a 15mm socket connection with hand wheel.
