Automatic tin can packaging machine/food canning machine

FOB Price

USD $48,000 - $53,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Application:	Other, Machinery & Hardware	Packaging Type:	Cans
Packaging Material:	Metal	Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	380V	Power:	380Vd5% 50HZ	Place of Origin:	Sichuan, China
Brand Name:	Changtai	Model Number:	FH18-65ZD	Weight:	1800KG
Dimension(LWH):	175011001800mm	Certification:	Exclusive Patented	After-sales Service Provided:	Engineers available to service machinery overseas

Automatic tin can packaging machine/

food canning machine

1.Main technical data for food canning machine

Mode	FH18-65ZD
Linear rate of welding	6-26m/min
Production capability	40~100Cans/min
Applicable can diameter	Φ65~Φ180mm
Applicable can height	60~280mm
Applicable material	Tinplate steel-based
Applicable material thickness	0.2~0.35mm
Seam welding landing	0.4mm 0.6mm
Seam point distance	0.5-0.8mm
Applicable copper wire diameter	Φ 1.38mm Φ 1.5mm
Cooling water	Temperature:15-20°CPressure:0.4~0.5Mpa Discharge:10L/min
Compressed air consumption	600 L/min
Pressure of compressed air	0.5Mpa-0.7Mpa
Power	380V±5% 50HZ
Total power	40KVA
Dimension	1750×1100×1800mm
Weight	1800Kg

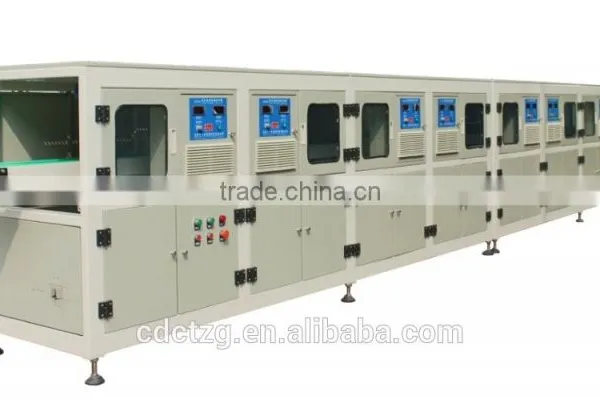

2.Latest picture for food canning machine

**************************************************************************************************************

********************************************

************************************accessories***************************

Our major component suppliers:

1)PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.

2) Low voltage apparatus are produced by SCHNEIDER.

3)IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.

4)OMRON is our sensor supplier.

5)HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.

Conton fair:

Workshop:

Appliable tin cans:

Certificates:

Mainly products:

Chengdu Changtai Can Manufacture Equipment Co., Ltd.: Contact namezhonghua tian; Phone86-28-82666281,87078896,159828; Address8th South section Rongtai Road, Straits Industrial Park, Wenjiang District, Chengdu, Sichuan, China Chengdu,Sichuan
