Semi-automatic Can Making Machinery

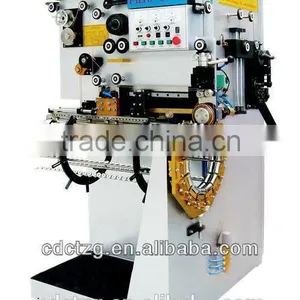

Semi-automatic Can Making Machinery photo-1

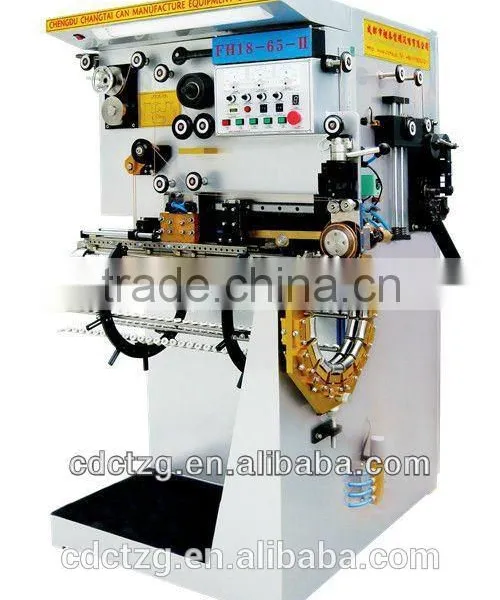

Semi-automatic Can Making Machinery photo-2

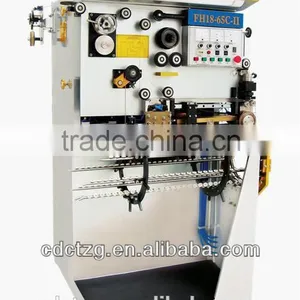

Semi-automatic Can Making Machinery photo-3

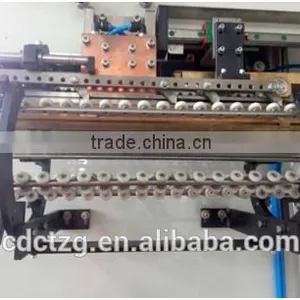

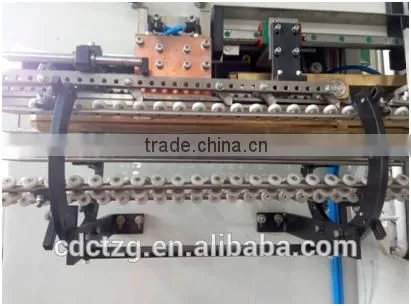

Semi-automatic Can Making Machinery photo-4

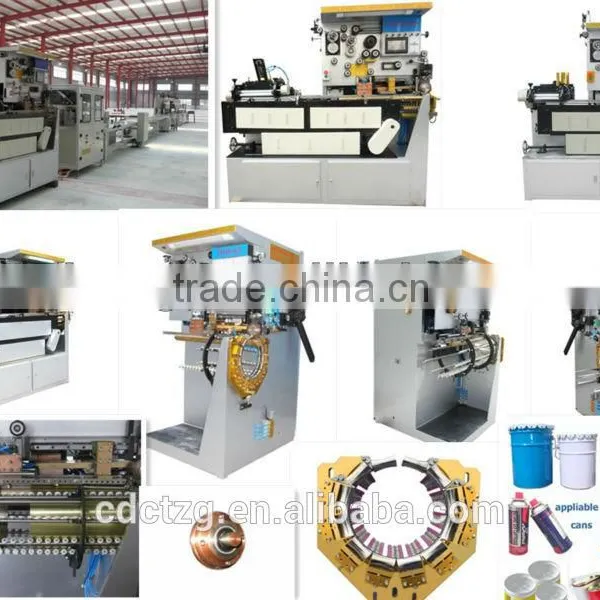

Semi-automatic Can Making Machinery photo-5
Semi-automatic Can Making Machinery photo-6
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Material:
Metal
Metal Type:
Tinplate
Use:
Canned Food
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Material Metal
Metal Type Tinplate
Use Canned Food
Place of Origin Sichuan, China
Brand Name Changtai
Model Number FH18-65-II

Semi-automatic can making machinery

Semi-automatic can making machinery

1.Main technical data



Linear rate of welding  6-18m/min
Production capability  20~40Cans/min
Applicable can diameter       Φ220~Φ290mm
Applicable can height  190~420mm
Applicable material   Tinplate steel-based
Applicable material thickness 0.22~0.42mm
Applicable copper wire diameter Φ 1.38mm Φ 1.5mm
Seam welding landing 0.8mm 1.0mm 1.2mm
Seam point distance 0.5-0.8mm
Cooling water Temperature:15-20°CPressure:0.4~0.5Mpa Discharge:7L/min
Power 380V±5% 50HZ
Total power   18KVA
Dimension 1200×1100×1800mm
Weight . 1200Kg

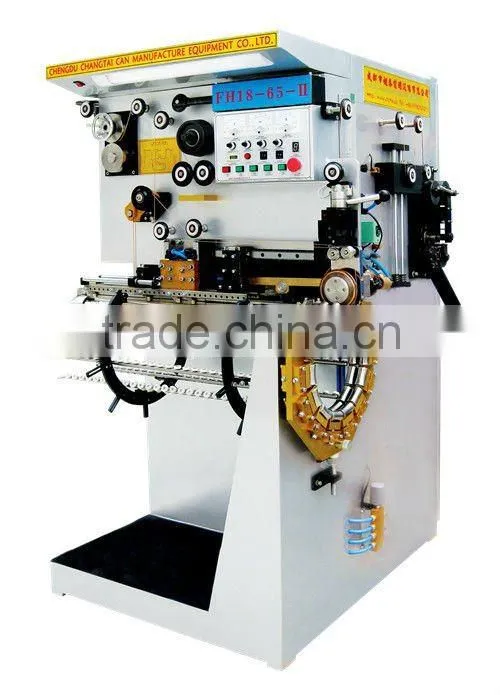

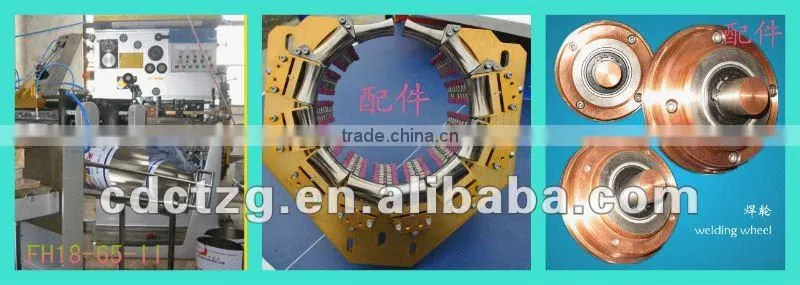

2.Latest picture

Semi-automatic can making machinery

************************************************************************************************

Semi-automatic can making machinery

 ************************************************************

3.Our major component suppliers

1, PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.

2, Low voltage apparatus are produced by SCHNEIDER.

3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.

4,OMRON is our sensor supplier.

5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.



4.Can making technology  process

Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling

 Semi-automatic can making machinery

5.Applicable types of products

aerosol cans, food cans, beverage cans, chemical cans , paint pot and square bucket etc.

Semi-automatic can making machinery

Semi-automatic paint pail/food/beverage tinplate can body welding machine.
