Cantilever Racking(for dealers)
1. Frame
1.1 Light/Medium Duty
1.1.1 Upright section size 150/200mm
Note: Upright length should be multiple of pitch (50mm).
Specification type 150/200
Height mm |
Max arm level |
Clear space each level mm |
H-bracing Qty |
D-bracing Qty |
1500 |
3 |
380 |
2 |
1 |
1800 |
3 |
480 |
2 |
1 |
2000 |
4 |
380 |
2 |
1 |
2200 |
4 |
430 |
2 |
1 |
2500 |
4 |
505 |
2 |
1 |
2800 |
5 |
440 |
3 |
2 |
3000 |
5 |
480 |
3 |
2 |
1.1.2 Bracing Assembly
1.2 Heavy Duty
1.2.1 Upright section size 300mm
Note: Upright length should be multiple of pitch (140mm).
Specification type 300
Height mm |
Max arm level |
Clear space each level mm |
H-bracing Qty |
D-bracing Qty |
2588 |
3 |
670 |
4 |
1 |
3008 |
3 |
810 |
4 |
2 |
3568 |
4 |
720 |
4 |
2 |
3988 |
4 |
825 |
4 |
3 |
4548 |
4 |
965 |
6 |
3 |
4968 |
5 |
832 |
6 |
3 |
5528 |
5 |
944 |
6 |
4 |
1.2.2 Bracing Assembly
1.3 Upright Assembly(See below pictures)
Consisted by upright & base /bolts & nuts /spring washer /flat washer /square taper washers /anchor
Components quantity per frame:
upright & base
bolts & nuts /spring washer /flat washer /square taper washers

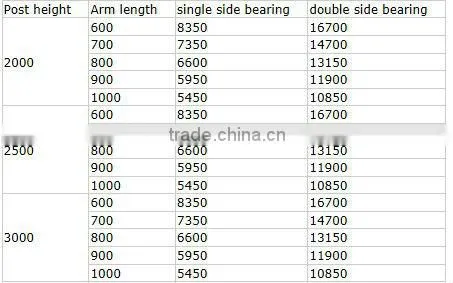

2. Frame Load Capacity Table( KG/Frame)

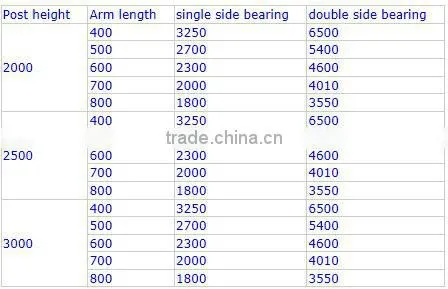

Light Duty Frame(150*60)

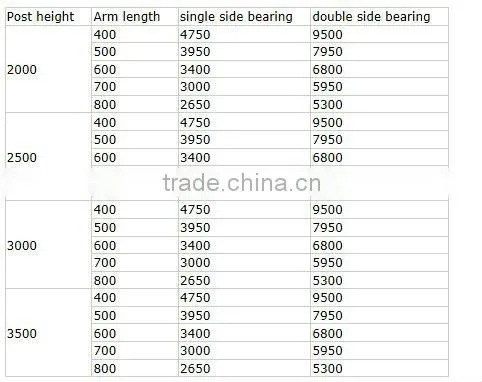

Medium Duty Frame(200*60)
Note: In above table, from left to right is Frame Height, Arm Length, Single Side Loading, Double Side Loading, etc.
