US$ 3 - 4 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD3014
Type:
LED Bar Lights
Input Voltage(V):
DC24V
Contact Supplier Request Quote Chat Now
Shanghai Edge Light Industry Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD3014
Type LED Bar Lights
Input Voltage(V) DC24V
Lamp Power 12W
Lamp Luminous Flux(lm) 16-18LM
Color Temperature(CCT) 2700-7000K
Working Temperature(℃) -15, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CCC, CE, UL, VDE
Emitting Color White
Place of Origin Shanghai, China
Brand Name Edgelight

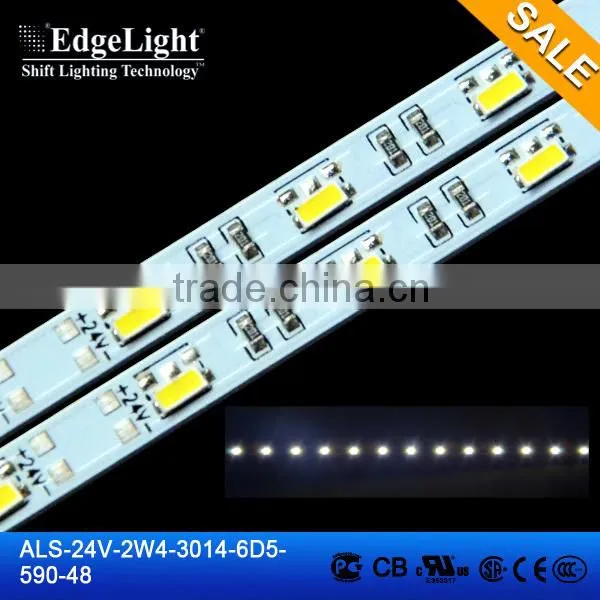

Model Number ALS-24V-2W4-3014-6D5-590-48

Product Introduction:
*Lit without delay,fast response
*anti-vibration capability
*Emitting with high purity,without lamp filter,optical wavelength error less than 10nanometer
*Low heat,the requirement for heat-resisitant performance is not high
*Concentrated beam,easy to control,no requirement for reflector,less depth of lamps.
*Low power consumption, generate the same luminance only with 6% power consumption as a traditional lamp
* long life span,no filament structure,no heating more than six years for normal use.

Edgelight rigid light strip , 3014 smd led aluminium led strip bar , white color /CE/ROHS/UL listed LED stripEdgelight rigid light strip , 3014 smd led aluminium led strip bar , white color /CE/ROHS/UL listed LED stripEdgelight rigid light strip , 3014 smd led aluminium led strip bar , white color /CE/ROHS/UL listed LED strip

Specification

Item Color White
ALS-24V-2W4-3014-6-590-48 PCB Width(mm) 4mm
PCB length(mm) 590
Lamp bead lumens 16~18
Power/unit 0.24
Power 11.52
DC Voltage(V) 24
LED Q'ty(pcs) 48
Gross weight/G 76

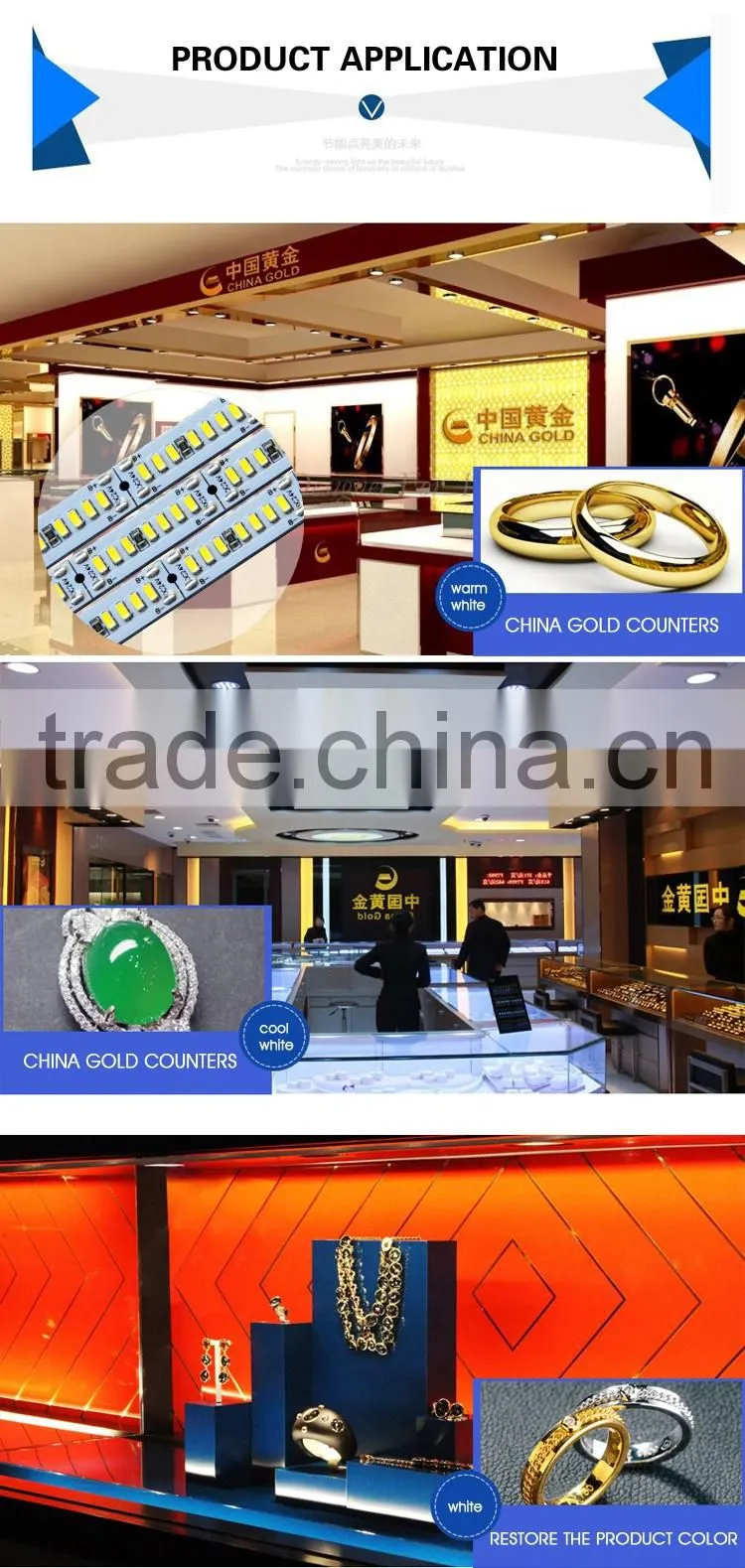

Application:

Hotels,Meeting rooms,Offices,Commercial Purposes,Institution Buildings,Schools,
Hospitals, Places where energy saving and high color rendering index lightings required.

Edgelight rigid light strip , 3014 smd led aluminium led strip bar , white color /CE/ROHS/UL listed LED stripEdgelight rigid light strip , 3014 smd led aluminium led strip bar , white color /CE/ROHS/UL listed LED strip

Advantage:

Advantage:
1 LED Strip light source with high luminous efficiency
2 LED Strip light source with low power consumption
3 LED Strip light source with long life span
4 LED Strip light source is safe and with high reliability
5 LED Strip light source benefit environment protection

 Packaging&Delivery:

Packaging Details:1piece led modular per carton,If you need we can design as your request.
high strength carton.effectively prevent the led modular is damaged in the process of transportation.
Delivery Detail:1-3days sample/5-8days small bulk/10-20days big bulk

Edgelight rigid light strip , 3014 smd led aluminium led strip bar , white color /CE/ROHS/UL listed LED stripEdgelight rigid light strip , 3014 smd led aluminium led strip bar , white color /CE/ROHS/UL listed LED stripEdgelight rigid light strip , 3014 smd led aluminium led strip bar , white color /CE/ROHS/UL listed LED stripEdgelight rigid light strip , 3014 smd led aluminium led strip bar , white color /CE/ROHS/UL listed LED stripEdgelight rigid light strip , 3014 smd led aluminium led strip bar , white color /CE/ROHS/UL listed LED strip
