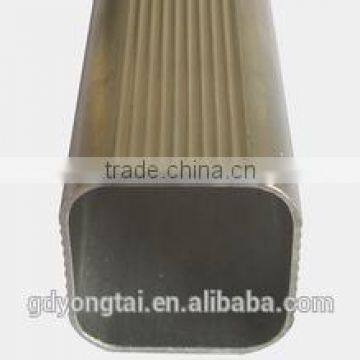

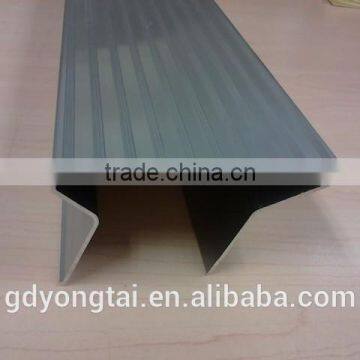

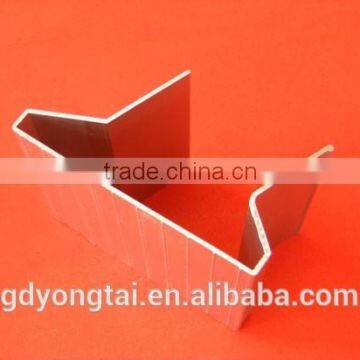

Aluminium Stair Profiles
Aluminium Profile Manufacture For Door Window Partition LED Heatsink Wardrobe Industry Profile Decoration Scaffolding Tent....
Foshan Yatai PVC & Alu. Co., Ltd, it was founded in 1988 . It takes 10,000 square meter, with over 300 staff. Since the factory was founded, all the products are strictly accordance with Standard GB/T5237.1-2008 and GB/T 8814-2008 in order to ensure the superior quality, so we enjoy a good reputation in the global market.
Yatai Aluminium Profile Specifications:
| 1.Aluminium Alloy | 6063, 6061. |
| 2.Temper: | T4,T5,T6 |
| 3.Surface treatment: | Mill Finished, Anodizing, Electrophoresis, Powder coating |
| 4.Color: | Silver, champagne, bronze, gold, white, black, and so on |
| 5.Length: | 10mm-7200mm |
| 6.Shape&dimension | the design we have or customized according to your design |
| 7.Packing: | our normal package is clean film ,pearl cotton and hot shrink ,but we can do according to your requirements |
| 8.Certification: | ISO9001,ISO14001,CE. |
| 9.Standard: | China high precision GB5237-2008 |
Yatai Product Category
| architectural aluminium profile |
aluminium profile for sliding window and door aluminium profile for casement window and door heat-insulated window and door profile aluminium shutter profile aluminium profile for curtain wall aluminium handrail profile,etc. |
||||
| industrial aluminium profile |
aluminium profile for solar frame aluminium profile for closet door aluminium profile for heat sink aluminium profile for led light aluminium profile for cylinder,etc. |
||||
| general aluminium profile |
aluminium u channel aluminium angle aluminium flat bar aluminium round tube aluminium flat tube aluminium square tube,etc. |
||||
Yatai Aluminium Profile Technical Standard:
Yatai Aluminium Profile Chemical Composition(%)
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Aluminium |
| 6061 | 0.40-0.80 | 0.70 | 0.15-0.40 | 0.15 | 0.80-1.20 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | remainder |
| 6063 | 0.2-0.60 | 0.35 | 0.10 | 0.10 | 0.45-0.90 | 0.10 | 0.10 | 0.10 | 0.10 | remainder |
Yatai Mechanical Property
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 6063 | T5 | >160MPa | >110Mpa | >8% |
| 6063 | T6 | >205MPa | >180Mpa | >8% |
| 6061 | T6 | >265MPa | >245Mpa | >8% |
Yatai Aluminium Profile 's Surface Treatment Specification:
| Anodized |
Oxide Layer (average thickness) |
AA10 | ≥10μm |
| AA15 | ≥15μm | ||
| Electrophoretic Coating | Composite Layer(average thickness) | Level A | ≥21μm |
| Level B | ≥16μm | ||
| Powder Coating | Layer Hardness | ≥3H | |
| Gird Test | ≥0 | ||
| Minimum local thickness | ≥40μm | ||
| indentation hardness | ≥80 | ||
| Gird test | ≥0 |
We are on service 24/7,Please contact us, thank you!
General Procedure:
inquiry ----> drawing ----> mould confirmation ----> sample confirmation ----> batch order ----> delivery ---->after Sale Service.
