FN-450 semi automatic wood packing machine
- 30 Set / Sets per Month
- Shunde port China
- T/T Credit Card
You May Like
Product Details
Application | Other, Machinery & Hardware | |||
Packaging Type | Other, Naked package | Packaging Material | Wood | |
Automatic Grade | Automatic | Driven Type | Other | |
Voltage | 380V 50HZ 3Phase, 380V | Power | 1.35kw | |
Place of Origin | Guangdong, China | Brand Name | Funing | |
Model Number | FN-450 | Dimension(L*W*H) | 1400X1150X1650mm | |
Weight | 420kg | Certification | ISO9001-2000 | |
After-sales Service Provided | Engineers available to service machinery overseas |
PP foam package
Product Description

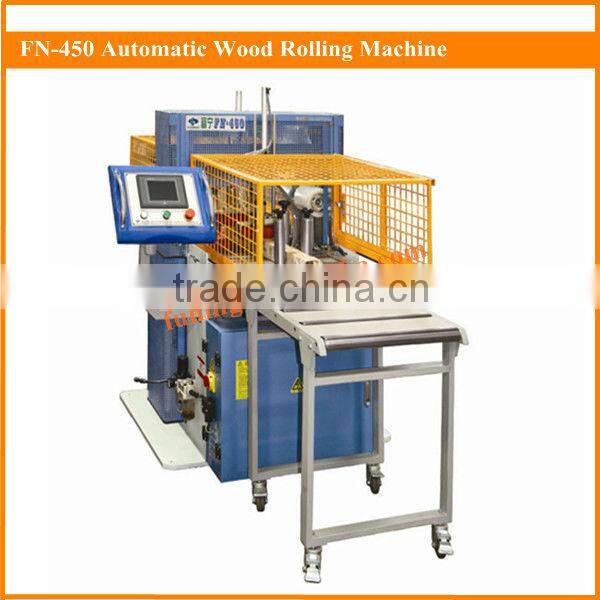

FN-450 Automatic Wood Rolling Machine
Can pack line wood product and similar shape AL. material, This packing machine have the CE approve and have applied patent, it is one of the most popular products of our company.
Packing machine automatic packing machine wood packing machine door packing machine
Machine Technical Parameter:
Rotation ring Inner dia: | Φ580mm |
Total Power: | 1.35kw |
Turnplate rotaling speed: | under 138r/min(can adjust) |
Feeding speed: | under 20m/min(can adjust) |
Air Pressure: | 0.6-0.8MPa |
Weight: | 420kg |
Overall Dimensions: | 1400x1150x1650mm |
1.Main frame of machine 2.Feeding table 3.Operating control panel 4.Elextrical cabinet 5.Turnplate
Function:
(1) Actomatic Wood Rolling Machine is consist of working table, turning organization, pressing organization, electrical system organization, feeding organization
(2) Has two kinds of mode:(1)Under Manual mode, can press/release, up/down, forward/reverse separately.(2)Under Automatic mode, can go back to original location automatically after finished the work.
(3) When the door panels are reay on the feeding table, press the transfering button, the transfering belt will bring the panel into the packing unit. When the panels is detected by the optic-electron sensor, the packing band will be put out, and the pressing unit press the panle, at the same time, the turning table start to rotate; after the turning table rotating, the band tighten facility retract and loose the band; the band will be tighten packed on the panels round by round while the panel is passing the packing unit. During panel pass the packing unit, antoher optic-electron sensor is actuated, the rear press unit will press the panel, and panel is transferred by the rear transferring table.
Automatic Wood Rolling Machine
Company Profile

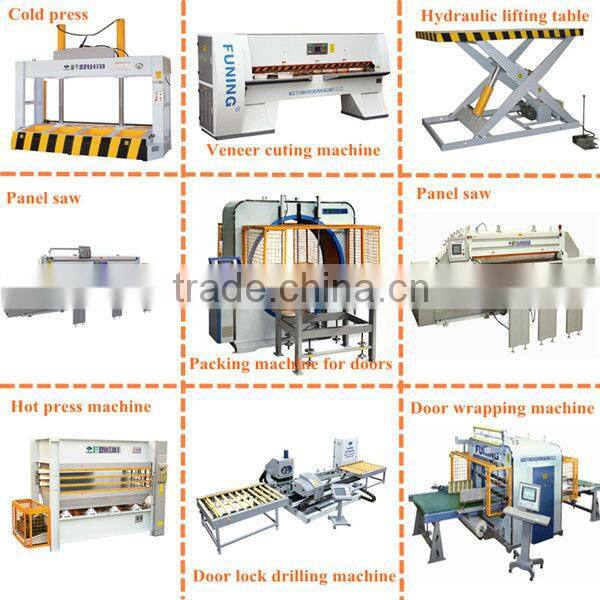

Funing Woodworking Machinery Co., Ltd. (formerly known as Shi Yong Woodworking Machinery Co., Ltd.) is strategically located in the Shunde Lunjiao District of Foshan City in Guangdong Province, known as the Home Town of Woodworking Machinery. We are also the pioneer in the woodworking machinery industry. With strong financial resources and a good reputation for quality products, our company is well known within the southern China region and renowned internationally. Funing Woodworking Machinery Co., Ltd. is one of the first woodworking machinery manufacturers to obtain the Safety-Woodworking Machinery Certification within the southern region of the Yangtze River. Our company is ISO9001-2000 certified and we emphasize on quality control. We are able to supply products including milling machine, engraving machine, sawmill, lathe, planer, grinding machine, drill press, tenoning & trenching machine, polishing machine, cold & hot press, and tool grinder. Currently, our company owns more than 10 product series and more than 100 types/kinds of machineries. As China entered into the WTO, our company will reformulate our strategy and strive to be a professional manufacturer of woodworking machineries with the following characteristics: hi-tech, precise, innovative, standardized, automated, and serialized in order to stay in line with international trends and developments. In 2005, Funing developed and grew into a world class organization through a multi-prong approach: First, by the advantages of management, geographical, environmental & system to catch up the opportunity of China's timely accession in the WTO; Secondly, to adopt the right mentality (we aim to anticipate potential threats, to prepare for rainy days, and to be pro-active) and philosophy (we aim to focus on maintaining reputation, communications, quality, and services); Last but not least, to build brand equity and enter the international markets through the clever manipulation of our good production capability, products strategy and marketing strategy. With a strong globalization spirit and keen determination to keep abreast with international developments, our company will grow together with our existing clients in the international arena.
