| Model number | MH384X120(1) | MH384X120(3) | MH384X120(5) |
| Number of the layers(opens) | 1 | 3 | 5 |
| Distance between press plates | 100mm | 100mm | 80mm |
| Oil cylinder diameter | Φ100mm | Φ100mm | Φ100mm |
| Stroke of the oil cylinder | 350mm | 350mm | 450mm |
| Maximum temperaturu of the press board | 120 Degree | 120 Degree | 120 Degree |
| Press board size | 2500×1300×42mm | 2500×1300×42mm | 2500×1300×42mm |
| Maximum pressure | 120T | 120T | 120T |
| Number of oil cylinders | 8pcs | 8pcs | 8pcs |
| Capacity of the heating equipment | 60L | 60L | 80L |
| Capacity of the oil tank | 80L | 100L | 120L |
| Installation power | 7.7kw | 7.7kw | 7.7kw |
| Heat equipment power | 48kw | 48kw | 54kw |
| Weight | 5200kg | 7500kg | 9500kg |
| Overall dimension | 3750×1650×2150mm | 3750×1650×2150mm | 3750×1650×2450mm |
1. Hot press can press various sorts of decorateing onto plywood, joiner's boards, MDF board and so on.
2. Hot press can finish furniture production process.
3. Hot press can reduce labor cost, earn more profit.
4. Has one layer, three layers and five layers for choosing
1. More than 15 years in manufacturing and exporting, technical will be more professional.and quality has guarantee.
2. Over 100 kinds of machines, such as Hot press, Cold press, Packing machine, Hydraulic lifting table, Tenoner, Mortising machine, Thicknesser, planer and so on.
3. Obtained ISO9001:2000 certificate and some products have CE certificate.
4. With strong financial resources and good reputation for quality products.

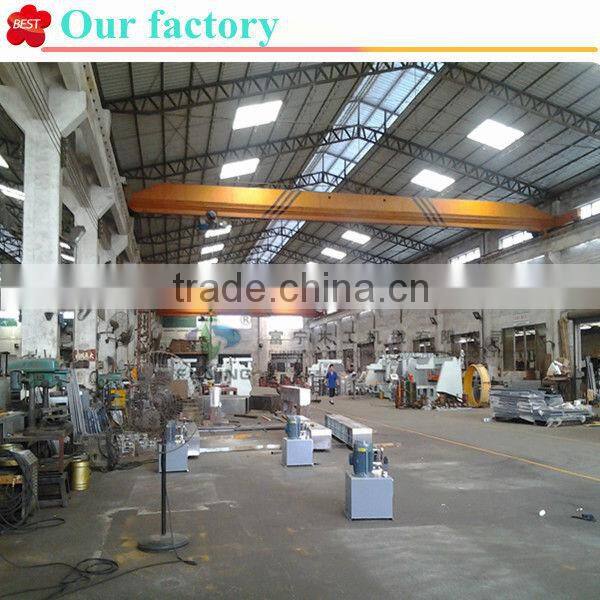

5. Large factory area with good production ability.
1. 100%T/T ,30%T/T FOR THE DEPOSITE.70% BALANCE BEFORE SHIPPMENT
2. IRREVOCABLE L/C AT SIGHT
3. WESTERN UNION
