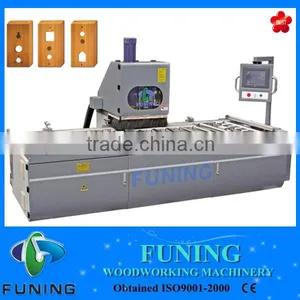

MDK44A CNC Door Lock Boring and Hinge Drilling Machine
US$ 33,600 - 34,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Place of Origin:
Guangdong, China
Brand Name:
Funing
Payment & Shipping
Payment Methods:
Port of Shipment:
Shunde Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cnc Wood Door Lock Hole Making Broing MachineUS$ 51,510 - 55,003MOQ: 1 Set -
Cnc Woodworking Machinery Door Hinges Making MachineUS$ 52,360 - 55,500MOQ: 1 Set
-
Portable Wooden Door Lock DrillingUS$ 50,800 - 50,930MOQ: 1 Set
-
Cnc Door Lock & Hinge Hole Drilling MachineUS$ 50,800 - 50,900MOQ: 1 Set
-
MDK45A-ZD CNC Door Lock & Hinge Drilling MachineUS$ 45,000 - 46,200MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Funing
Model Number
MDK44A
After-sales Service Provided
Engineers available to service machinery overseas
Feature:
This machine spindle use the high speed frequency conversion motor ,the working speed can adjust dispose spindle is 4 figure: It can install 4 different specification kinds of Drill bit. In order to settle for the difference kinds of the door lock holes process. Vertical mill Spindle is 2 figure besides settle for the door lock boring and can use in processing the door frame hinge boring and can use in processing the door fan hinge boring and the automatic close door equipment on the door fan's processing. Using the servo feeder cutting, exact feeding without any mistake.Using the "Y" direction feeder automatic clamp fix position system,with exact fix position easy for the worker's movie the boards.
Techinical Parameter:
| Machine model number | MDK44A |
| Machine name | Door lock&hinge drilling machine |
| Max. Working Length | 2500mm |
| Max. Working Width | 1000mm |
| Max. Working Thickness | 30-65mm |
| Tatal Power | 8.9kw |
| Total Spindle Quantity | 8 |
| Drilling Spindle Speed | 3500r/min |
| Milling Spindle Speed | 1800r/min(can adjust) |
| Overall Dimension | 3950x1900x1850mm |
| Weight | 2500kg |
