Boring Machine
US$ 8,650 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
CNC or Not:
Normal
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shunde port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Woodworking Drilling MachineNegotiableMOQ: 1 Set -
Four Units Boring MachineUS$ 10,000 - 10,880MOQ: 1 Set
-
Six Rows Boring Machine MZB73226AUS$ 17,000 - 18,000MOQ: 1 Set
-
Eight Rows Boring Machine MZB73228AUS$ 17,000 - 18,000MOQ: 1 Set
-
Double Rows Vertical Drilling Boring Machine MZB73212US$ 4,300 - 4,600MOQ: 1 Set
CNC or Not
Normal
Place of Origin
Guangdong, China
Brand Name
FUNING
Model Number
MZB73223
Voltage
380V
Certification
ISO 9001:2000
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

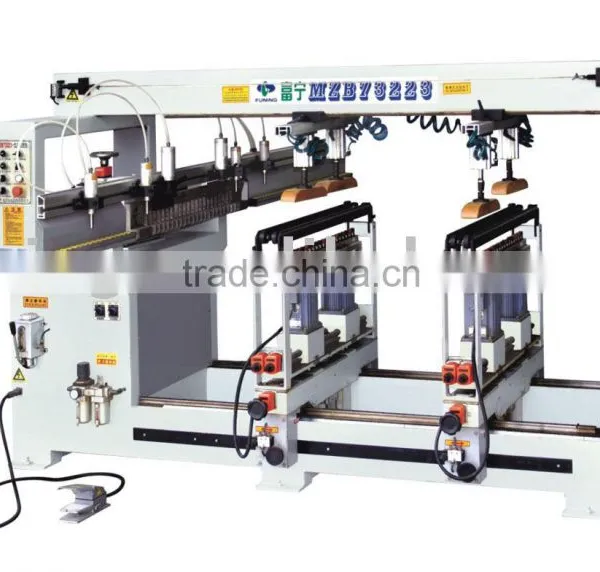

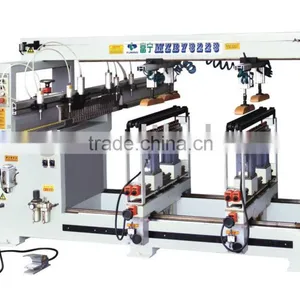

The machine is mainly used to horizontal multi-axils drill and irregular multi-hole work-pieceModel number: MZB73223 Name: Boring machine
Technical Parameter:
| Maximum boring diameter | Φ15mm |
| Maximum boring depth | 60mm |
| Maximum workpiece size | 1600×672mm |
| Main spindle speed | 2840r/min |
| Minimum distance between the ranges | 130×32mm |
| Number of drill bits | 66pcs |
| Boring motor | 1.5kw×1,1.1kw×4 |
| Air pressure | 0.6-0.8Mpa |
| Total power | 5.9kw |
| Weight | 1150kg |
| Overall dimension | 2500×2500×1650mm |
