T5 Fluorescent Light

T5 Fluorescent Light photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
edgelight
Model Number:
T5
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name edgelight
Model Number T5
Shape Other, rectangle and round

Specifications

fluorescent light
Good color rendering;Wide variety of light color from 2700K-8000K;Average life of 20,000hours for HE and HO



T5 fluorescent light

Edge LightTM T5
Innovative technology

Product Characteristics for Edge LightTM T5 HE and HO
. Good color rendering (Ra 80-86) thank to three-band phosphors over the entire color spectrum
. Wide variety of light color from 2700K-8000K
. Average life of 20,000hours for HE and HO versions



Item

Type Type Freq. (Hz) AC  Voltage (v) Size (mm) Gross weight (Kg)
EL-LA-14 14W 50/60 220~240 549 0.05
EL-LA-21 21W 50/60 220~240 849 0.75
EL-LA-28 28W 50/60 220~240 1149 0.1
EL-LA-35 35W 50/60 220~240 1449 0.2

Edge LightTM T5 fluorescent lamps with a tube diameter of just 16mm enable space-saving luminaries to be made even more compact than with the old standard lampswith their tube diameter of 26mm

. Maximum luminous flux at an ambient temperature of 35.C
. Can only be operated with Electronic control gear
. Can be operated as light source of Edge Light backlit system

Edge LightTM T5  Parameter



Item Shell Size Life  (Hour) Color rendering Lamp  Voltage Lamp Electricity Luminous flux specifide value Cold resistance
A B C
Max. Max. Min. Max.
EL-LA-14 549.0 556.2 553.8 563.4 ≥10000 ≥82 72-92 0.17 1100lm 7.5-10.5
EL-LA-21 849.0 856.2 853.8 863.4 ≥10000 ≥82 113-133 0.17 1700lm 7.5-10.5
EL-LA-28 1149 1156.2 1153.8 1163.4 ≥10000 ≥82 150-184 0.17 2400lm 7.5-10.5
EL-LA-35 1449 1456.2 1453.8 1463.4 ≥10000 ≥82 189-229 0.17 3100lm 7.5-10.5

The life of optical parameters and standards are based on ballast.

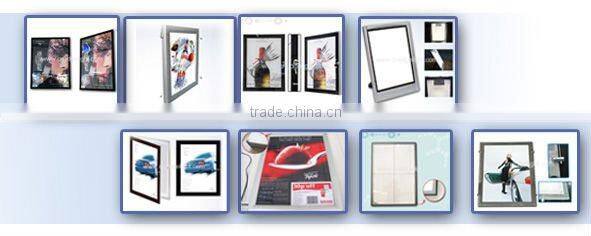

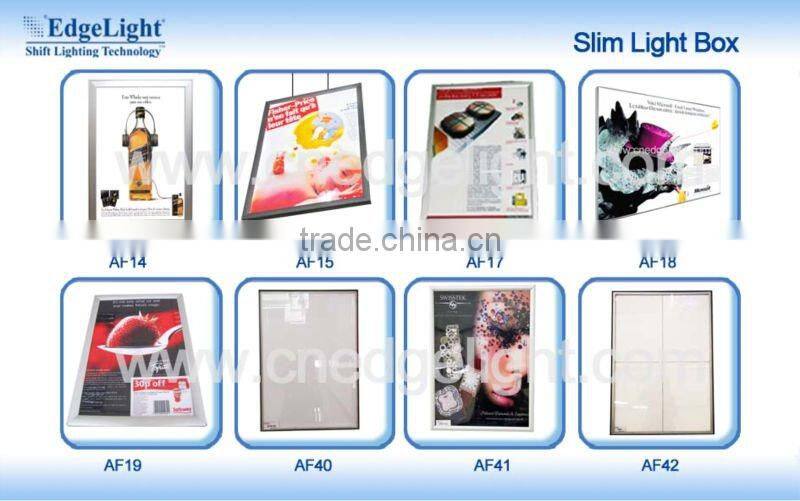

the  other pictures

T5 fluorescent light

T5 fluorescent light

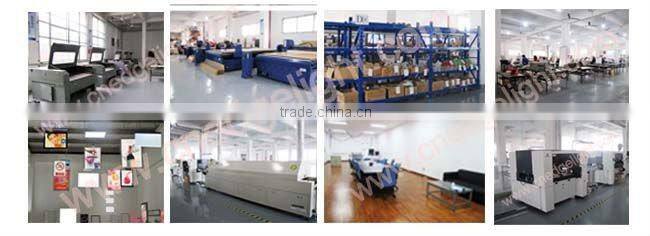

enterprise pictures

T5 fluorescent light

Manufacturing and sale of Light Guide Plate(LGP) ,( Edgelux ® panel, , Slim Light Box, LED Lighting panel, LED Bulb, LED Spotlight , LED Strip ,

Dynamic LED Slim sign, T8 LED Light Tube Tube ,Electronic Ballast, sensors and automatic control meter in the field of photoelectricity integration.

T5 fluorescent lightT5 fluorescent lightT5 fluorescent light

For more products,please see our website.
