High Quality Thrust Ball Bearing 51138 51144 With Single Row Ball Bearing

High Quality Thrust Ball Bearing 51138 51144 With Single Row Ball Bearing thumbnail-1
High Quality Thrust Ball Bearing 51138 51144 With Single Row Ball Bearing thumbnail-2
High Quality Thrust Ball Bearing 51138 51144 With Single Row Ball Bearing thumbnail-3
High Quality Thrust Ball Bearing 51138 51144 With Single Row Ball Bearing thumbnail-4

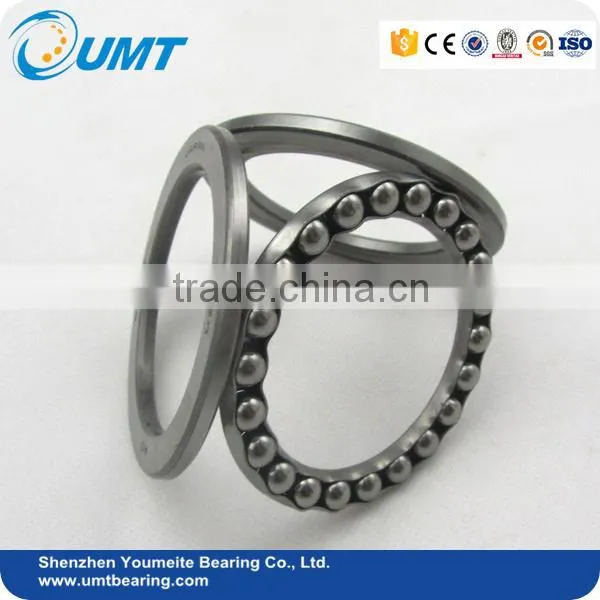

High Quality Thrust Ball Bearing 51138 51144 With Single Row Ball Bearing photo-1

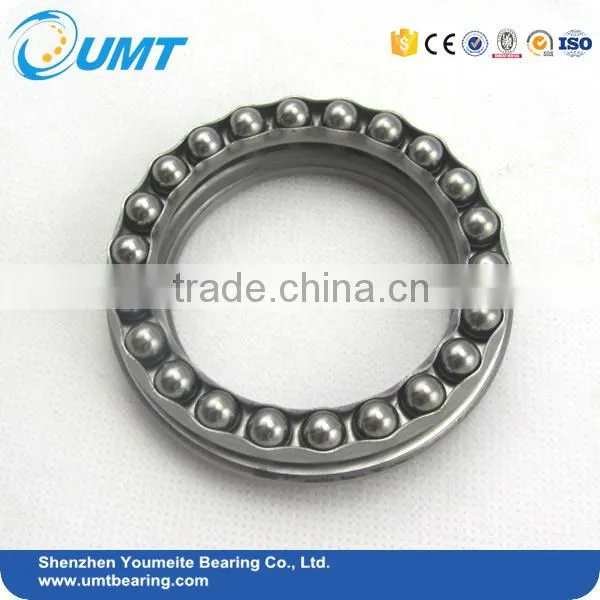

High Quality Thrust Ball Bearing 51138 51144 With Single Row Ball Bearing photo-2

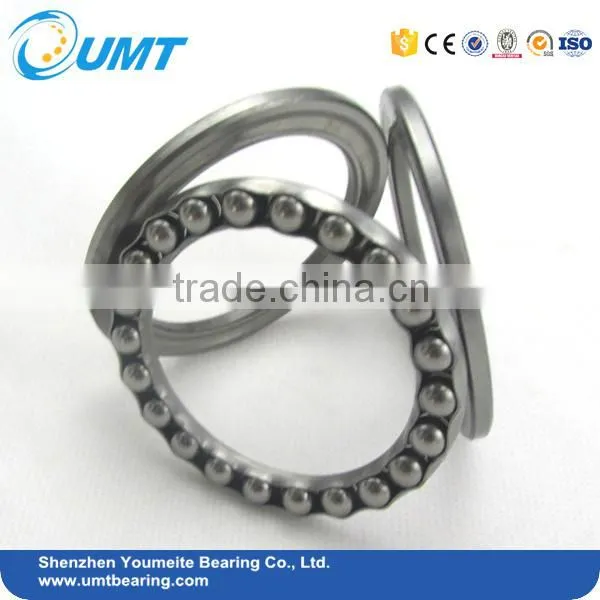

High Quality Thrust Ball Bearing 51138 51144 With Single Row Ball Bearing photo-3

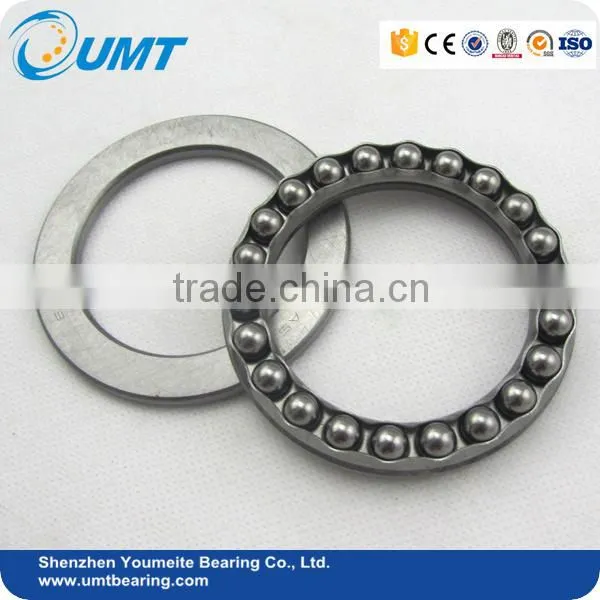

High Quality Thrust Ball Bearing 51138 51144 With Single Row Ball Bearing photo-4
US$ 1 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
UMT
Bore Size:
10, 100
Outside Diameter:
24, 125
Contact Supplier Request Quote Chat Now
Shenzhen Youmeite Bearings Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name UMT
Bore Size 10, 100
Outside Diameter 24, 125
Model Number 51138
Precision Rating P0-P6
Seals Type open
Number of Row Single Row
Place of Origin China



Product Description

THRUST BALL BEARING DESCRIPTION


Thrust ball bearing is a kind of separation type bearings, shaft circle, seat ring may and maintain shelf, steel ball component separated. Shaft with circle is Axis collar, seat combined with circle is combined bearing hole between the collar, and axis; a gap.

Thrust ball bearings can only carry axial load, i.e.one-way thrust ball bearings can only carry a direction is axial load, double
To thrust ball bearings can withstand the two directions of the axial load; Thrust ball bearings can limit the radial displacement, the x axis
Speed is low, i.e.one-way thrust ball bearings can restrict axis and the shell of a direction axial displacement, two-way bearing can limit
Making the axial displacement of two directions.





 THRUST BALL BEARING DETAILS



Brand

UMT

Name

Thrust Ball Bearing

Model

51100 51101 51102 51103 51104 51105 51106 51107 51108 51109 51110 51111 51112 51113 51114 51115 51116 etc.

Material

GCr15

Certificate

ISO9001:2001

Precision

P0, P6, P5

Bore Size:

10mm-100mm

Outside diameter

25mm-220mm

Clearance

C0,C1,C2,C3,C4,C5 etc.

Cage Type

Brass cage or Stainless cage

Seals Type

ZZ,RS, 2RS, R2, Z, 2Z, 2RZ etc

Price terms

EXW,FOB,CFR,CIF,DDU
Payment terms T/T,L/C,Western Union, Paypal, Money gram

Application

Thrust ball bearing suitable for precision instrument, low noise electromotor, automobile and motorcycle, etc. It is the the most widely used bearing type.

Package

pallet, wooden case,industrial package or as customers' requirement

Delivery time

within 2-7days after the receipt of payment or deposit







NON-STANDARS THRUST BALL BEARING MODEL SIZE:

Bearing No. d×D×B(mm) Weight(kg)
51100 10×24×9 0.02
51101 12×26×9 0.02
51102 15×28×9 0.02
51103 17×30×9 0.03
51104 20×35×10 0.04
51105 25×42×11 0.06
51106 30×47×11 0.07
51107 35×52×12 0.08
51108 40×60×13 0.12
51109 45×65×14 0.15
51110 50×70×14 0.16
51111 55×78×16 0.23
51112 60×85×17 0.3
51113 65×90×18 0.34
51114 70×95×18 0.36
51115 75×100×19 0.4
51116 80×105×19 0.42
51117 85×110×19 0.44
51118 90×120×22 0.67
51120 100×135×25 0.97
51122 110×145×25 1.05
51124 120×155×25 1.11
51126 130×170×30 1.73
51128 140×180×31 1.9
51130 150×190×31 2
51132 160×200×31 2.1
51134 170×215×34 2.77
51200 10×26×11 0.03
51201 12×28×11 0.03
51202 15×32×12 0.05
51203 17×35×12 0.05
51204 20×40×14 0.08
51205 25×47×15 0.11
51206 30×52×16 0.13
51207 35×62×18 0.22
51208 40×68×19 0.28
51209 45×73×20 0.32
51210 50×78×22 0.38
51211 55×90×25 0.61
51212 60×95×26 0.68
51213 65×100×27 0.78
51214 70×105×27 0.79
51215 75×110×27 0.87
51216 80×115×28 0.91
51217 85×125×31 1.25
51218 90×135×35 1.7
51220 100×150×38 2.29
51222 110×160×38 2.46
51224 120×170×39 2.71
51226 130×190×45 4.22
51228 140×200×46 4.77
51230 150×215×50 5.87
51232 160×225×51 6.32
51305 25×52×18 0.17
51306 30×60×21 0.26
51307 35×68×24 0.38
51308 40×78×26 0.53
51309 45×85×28 0.66
51310 50×95×31 0.94
51311 55×105×35 1.3
51312 60×110×35 1.35
51313 65×115×36 1.5
51314 70×125×40 2
51315 75×135×44 2.6
51316 80×140×44 2.7
51317 85×150×49 3.55
51318 90×155×50 3.8
51320 100×170×55 4.95
51322 110×190×63 7.85
51324 120×210×70 11
51326 130×225×75 13
51328 140×240×80 15.5
51330 150×250×80 16.5
51405 25×60×24 0.34
51406 30×70×28 0.52
51407 35×80×32 0.76
51408 40×90×36 1.1
51409 45×100×39 1.4
51410 50×110×43 2
51411 55×120×48 2.55
51412 60×130×51 3.1
51413 65×140×56 4
51414 70×150×60 5
51415 75×160×65 6.75
51416 80×170×68 7.95
51417 85×180×72 9.45
51418 90×190×77 11
51420 100×210×85 15
52202 10×32×22 0.08
52204 15×40×26 0.15
52205 20×47×28 0.22
52206 25×52×29 0.25
52207 30×62×34 0.41
52208 30×68×36 0.55
52209 35×73×37 0.6
52210 40×78×39 0.71
52211 45×90×45 1.1
52212 50×95×46 1.2
52213 55×100×47 1.35
52214 55×105×47 1.52
52215 60×110×47 1.59
52216 65×115×48 1.7



Company Information



Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearingcorporation responsible for oversea marketing.

Our plant shandong UMT has been working in the filed of bearing design and

manufacturing for more than 10years now is taking a leading position in mainland china.

Our plant has more than 500 employees , including 30 bearing professional techincians;

more than 600 new bearing items can be completed each year.

we can produce all kinds of bearing as customer's requirement.

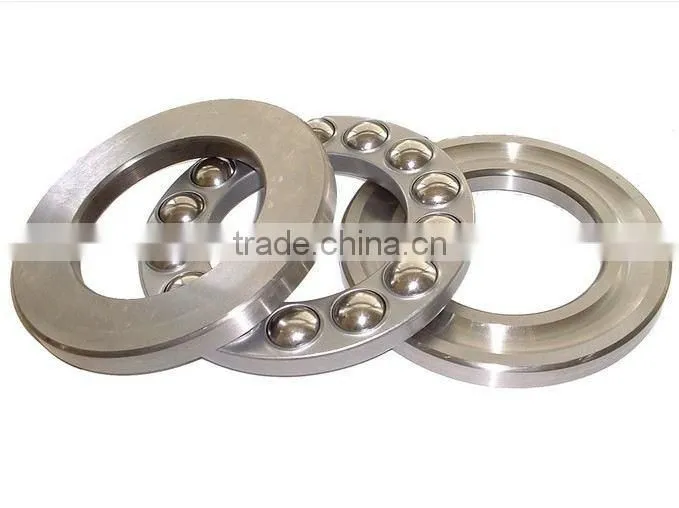

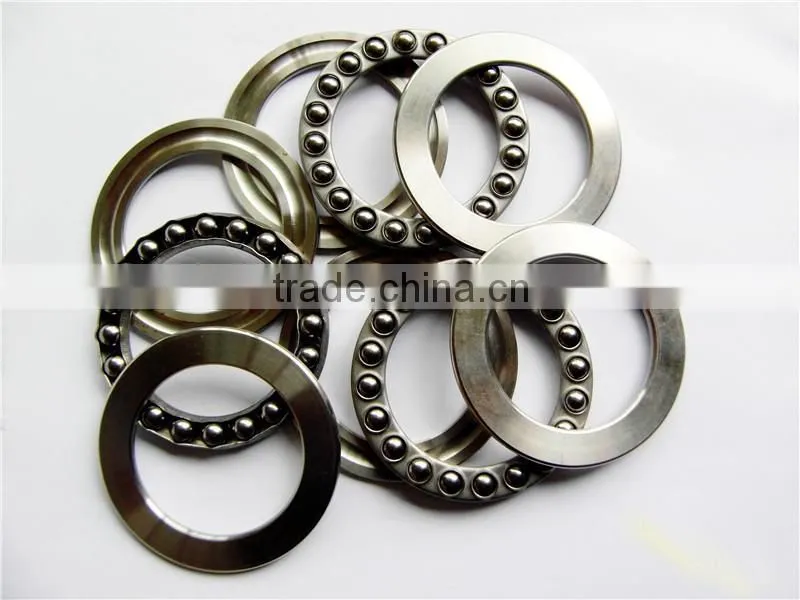

THRUST BALL BEARING PICTURE



High quality Thrust ball bearing 51138 51144 with single row ball bearingHigh quality Thrust ball bearing 51138 51144 with single row ball bearing

If this product is not what you want,that's nothing.
Click on the image below to see more products.You must have your favorite

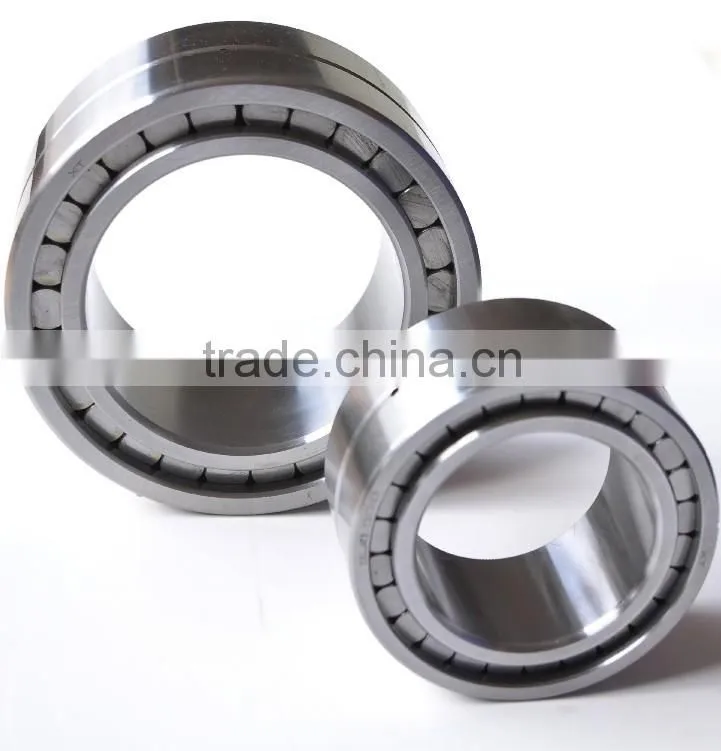

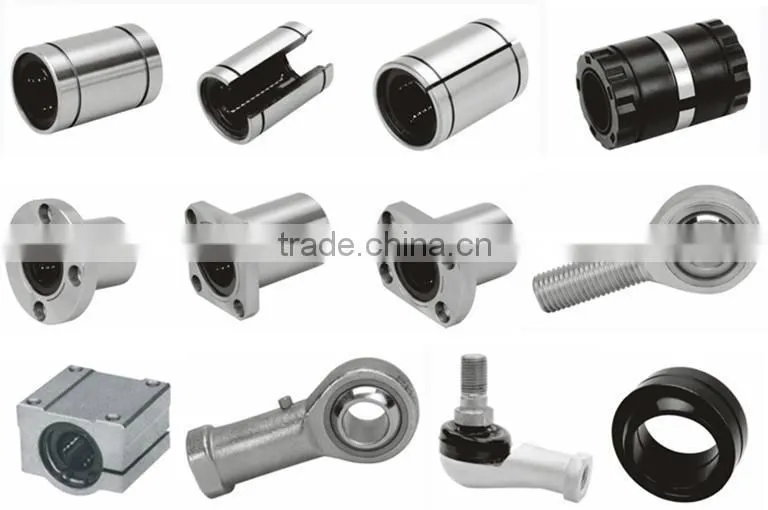

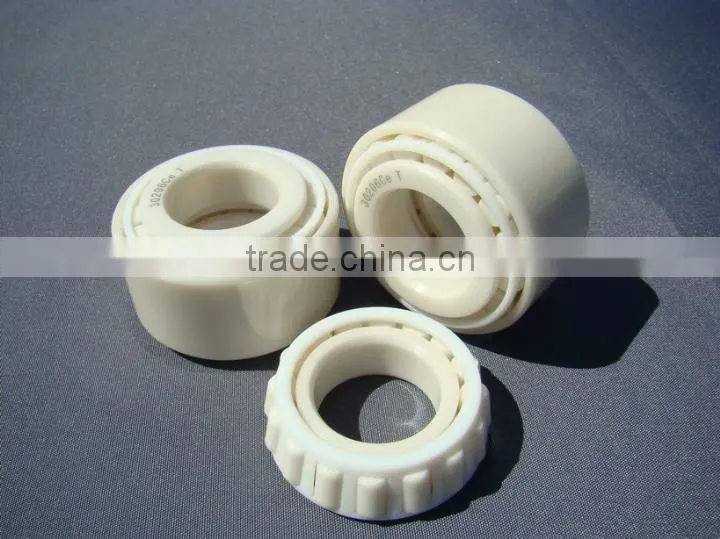

High quality Thrust ball bearing 51138 51144 with single row ball bearing

High quality Thrust ball bearing 51138 51144 with single row ball bearingHigh quality Thrust ball bearing 51138 51144 with single row ball bearingHigh quality Thrust ball bearing 51138 51144 with single row ball bearingHigh quality Thrust ball bearing 51138 51144 with single row ball bearing







MAKING A BEARING PROCESS



High quality Thrust ball bearing 51138 51144 with single row ball bearing

High quality Thrust ball bearing 51138 51144 with single row ball bearing



Packaging & Shipping





High quality Thrust ball bearing 51138 51144 with single row ball bearing



DIFFERENT TYPE OF BRAND









Our Services



High quality Thrust ball bearing 51138 51144 with single row ball bearing

High quality Thrust ball bearing 51138 51144 with single row ball bearing









OUR COMPANY CERTIFICATES

 High quality Thrust ball bearing 51138 51144 with single row ball bearing



FAQ



Q : Why choose us ?

a.With background of about 10 years

b.Strict Inspection ,and the best quality price with reasonable price bearings provided .

c.OEM service provided.

d. Delivery products from our factory warehouse , delivery time is short .

e. After sale service at any time .



Q: What kind of bearing you producted ?

main products are deep groove ball bearing , spherical roller bearings , tapered roller bearing ,thrust ball bearing ,others could be special made for you .



Q:What brand you could provided ?

A: our brand is HQBF , we also offer OEM service .



Q:Your product certifications ?

A: ISO 9001:2008 , ISO 9001:2000



Q: Delivery Time ?

A: 7-15 days ,also base on your order quantity



Q: Payment Terms ?

A: Usually we accept T/T ,and also accept L/C ,western union ,and order online



Q: Loading Port ?

A: Shenzhen China , as your appointed .
