Thrust ball bearing 51103 all type of bearing can supply

FOB Price

USD $0.5 - $50 / Piece

1 Piece(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	UMT,OEM,Brand bearing	Bore Size:	0, 17	Outside Diameter:	0, 30
Model Number:	51103	Precision Rating:	ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4	Seals Type:	Open
Number of Row:	Single Row	Place of Origin:	Guangdong, China

Product Description

Thrust ball bearing 51103 all type of bearing can supply

Product Description

ADVANTAGE:

* Machining facility for special sizes of bearings

* Free sample testing available

* Low noise and no friction

* High accuracy ,High speed

* large in stock,quick delivery

* Excellent and high quality control

* Small order accepted

* Customers' drawing or samples accepted

Thrust ball bearin:

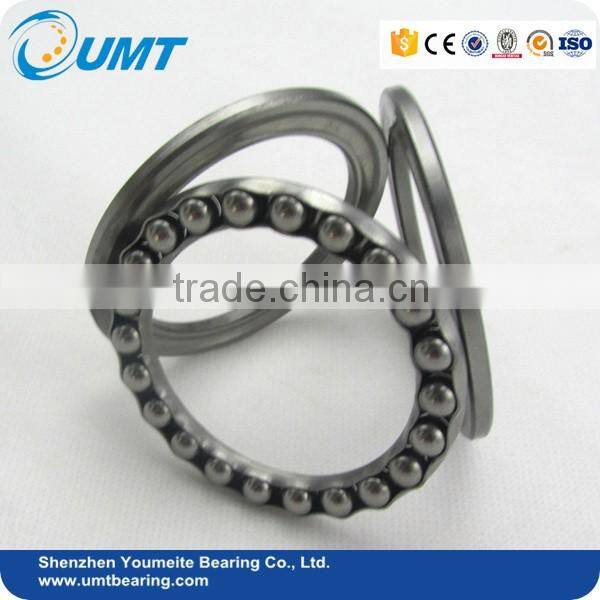

Thrust ball bearings from the seat, shaft ring and ball cage assembly of three parts.
And the shaft with the axis of said ring, and the shell with said seat.

Type of thrust ball bearing	1. Single way thrust ball bearing 2. Double way thrust ball bearing 3. Flat thrust ball bearing
Application	Crane hook, vertical pumps, vertical centrifugal, lifting jack, low speed reducer
Component	Seat, shaft ring and ball cage
Single way thrust ball bearing	Seat, shaft ring and ball cage, separate
	Cage: pressed steel, Injection of glass fiber reinforced nylon 6. 1.One-piece machine cutting brass cage 2.One-piece machine cutting copper steel cage 3.Modular machine cutting brass cage
Flat thrust ball bearing	Low speed, long life
	Application:1.the elevator parts/plastic machinery 2.office equipment/medical apparatus and instruments 3.Stepper motor/deceleration speed change device 4.Pressure rotor/fitness and sports equipment

Thrust ball bearing 51103 all type of bearing can supply:

Thrust ball bearing 51103 all type of bearing can supply
Model Number	51103
Structure	Thrust
Type	Ball
Brand Name	UMT,OEM,Brand bearing
Inside Diameter	17mm
Outside Diameter	30mm
Width	9mm
Net weight	0.045kg
Seals Type	OPEN
Number of Row	Single Row
Material	Chrome steel, Stainless steel, Carbon steel
Cage	Brass, Steel, Nylon
Vibration Level	V1, V2, V3
Clearance	C2, C0, C3, C4, C5 etc.
Precision Rating	P0, P6, P5, P4, P2
Hardness	59-63HRC
Service	OEM&ODM both available
Sample available	Yes
Manufacturer	Yes
Quality guaranteed	Yes
Certificate	ISO9001:2008, ISO/TS16949, REACH, ROHS, MSDS, CQC
Application/Function	Automotive, Truck, Tractors, Construction machinery, Electric Tools, Sports Apparatus, Office equipment, Medical devices
Other Service	Design service, Buyer label service
Packaging Details	Industrial Packing, Individual Boxed Packing, or OEM
Delivery Detail	2-7 days after receiving the payments or deposit

Thrust ball bearing:

N0.	OLD NO.	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
N0.	OLD NO.	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
51100	8100	10	24	9	10	14	6500	10000	0.02
51101	8101	12	26	9	10.3	15.4	6500	10000	0.022
51102	8102	15	28	9	10.5	16.8	6100	9400	0.024
51103	8103	17	30	9	10.8	18.2	6100	9400	0.028
51104	8104	20	35	10	14.2	24.7	5100	7900	0.04
51105	8105	25	42	11	19.5	37.2	4400	6800	0.059
51106	8106	30	47	11	20.4	42.2	4300	6600	0.068
51107	8107	35	52	12	20.4	44.7	3900	6000	0.09
51108	8108	40	60	13	26.9	62.8	3400	5300	0.12
51109	8109	45	65	14	27.8	69.1	3200	5000	0.15
51110	8110	50	70	14	28.8	75.4	3100	4800	0.16
511111	-	55	78	16	—	—	—	—	0.24
51112	8112	60	85	17	41.4	113	2600	4000	0.29
51113	8113	65	90	17	41.7	117	2400	3700	0.34
51114	8114	70	95	18	43	127	2300	3600	0.36
51115	8115	75	100	19	42.3	127	2200	3400	0.42
51116	8116	80	105	19	44.6	141	2100	3300	0.43
51117	8117	85	110	19	45.9	150	2100	3200	0.46
51118	8118	90	120	22	59.7	190	1900	2900	0.68
51120	8120	100	135	25	85	268	1600	2500	0.99
51122	8122	110	145	25	87.1	288	1600	2400	1.08
51124	8124	120	155	25	89	308	1500	2300	1.16

Thrust ball bearing:

N0.	OLD NO.	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
N0.	OLD NO.	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
51126	8126	130	170	30	104	352	1300	2000	1.87
51128	8128	140	180	31	107	377	1200	1900	2.2
51136	8136	180	225	34	135	528	1000	1600	3.39
51138	8138	190	240	37	170	657	970	1500	3.95
51140H	-	200	250	37	—	—	—	—	4.2
51144H	-	220	270	37	—	—	—	—	4.56
51148	8148	240	300	45	241	1020	750	1150	7.38
51152H	-	260	320	45	—	—	—	—	8.1
51156H	-	280	350	53	—	—	—	—	12.2
51160H	-	300	380	62	—	—	—	—	17.5
51164	8164	320	400	63	379	1760	540	810	19
51168	8168	340	420	64	387	1860	500	770	20.5
51172	8172	360	440	66	394	1960	500	720	21.5
51200	8200	10	26	11	12.7	17.1	5700	8800	0.03
51201	8201	12	28	11	13.2	19	5400	8300	0.034
51202	8202	15	32	12	16.6	24.8	4900	7500	0.046
51203	8203	17	35	12	17.2	27.3	4900	7500	0.053
51204	8204	20	40	14	22.3	37.7	3900	6000	0.082
51205	8205	25	47	15	27.8	50.4	3600	5500	0.12
51206	8206	30	52	16	29.3	58.2	3400	5200	0.15
51207	8207	35	62	18	39.2	78.2	2900	4500	0.22
51208	8208	40	68	19	46.9	98.3	2700	4200	0.27

Thrust ball bearing:

N0.	OLD NO.	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
N0.	OLD NO.	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
51209	8209	45	73	20	47.7	105	2600	4000	0.32
51210	8210	50	78	22	48.5	111	2300	3600	0.39
51211	8211	55	90	25	69.4	159	2100	3200	0.61
51212	8212	60	95	26	73.6	179	1900	3000	0.69
51213	8213	65	100	27	74.8	189	1900	2900	0.77
51214	8214	70	105	27	73.6	189	1800	2800	0.81
51215	8215	75	110	27	77.4	209	1800	2700	0.86
51216	8216	80	115	28	78.5	218	1700	2600	0.95
51217	8217	85	125	31	92.3	251	1500	2300	1.29
51218	8218	90	135	35	117	326	1400	2100	1.77
51219	-	95	140	40	—	—	—	—	2.2
51220	8220	100	150	38	147	410	1200	1900	2.36
51222	8222	110	160	38	148	431	1200	1800	2.57
51224	8224	120	170	39	154	472	1100	1700	2.86
51226	8226	130	190	45	203	622	970	1500	4.09
51228	8228	140	200	46	215	669	940	1450	4.46
51230	8230	150	215	50	244	768	840	1300	5.64
51232	8232	160	225	51	247	803	810	1250	6.53
51234	8234	170	240	55	269	874	750	1150	8.12
51236	806	180	250	56	294	986	710	1100	8.68
51238	8238	190	270	62	298	1010	650	1000	11.7
51240	8240	200	280	62	314	1110	620	950	12.2

Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearing corporation responsible for oversea marketing. Our plant shandong UMT has been working in the filed of bearing design and manufacturing for more than 10years now is taking a leading position in mainland china. Our plant has more than 500 employees , including 30 bearing professional techincians; more than 600 new bearing items can be completed each year. we can produce all kinds of bearing as customer's requirement.

Company:	Shenzhen Youmeite Bearings Co., Ltd
Name:	CANDY AO
Web:
Tel:	0086-755-23300976
Fax:	0086-755-28142811
Mobile:	0086-18719051618
Skype:	candy_umt
Email:	sales005(at)

Thrust ball bearing 51103 all type of bearing can supply:

Packaging & Shipping

Our Services

ep gr

FAQ

1. Q: Manufacturer or Trading company:

A:We (Shenzhen Youmeite Bearing Co., Ltd) has our own factory to produce goods for you.

2. Q: Material/ quality?

A: Chrom steel, carbon steel, ceramic bearings, ISO9001:2008 certificate to ensure qualtity.

3. Q: about samples:

A: Samples is free offered except large bearings, shipping cost shoud be paid by buyer, the shipping cost will be refund after order comfirmed.

4. Q: Brand and services?

A: Neutral brand, OEM service, OEM any brand as customer's requirements. For the branded bearings, please note we are Authorised Distributors for South China, if you have any doubts, please contact us freely.

5. Q: Capacity for supply goods?

A: about 2-15 days can delivery your goods after received your deposit or payment.

6. Q: Package and shipping?

A: 1: 1pc/plastic bag + color box + carton + plywood pallets.

2: barreled package+outer carton+pallets 3: single box+outer carton+pallets 4:

tube package+middle box+outer carton+pallets 5: According to your requirement.

7. Q: Payment?

A: 1:T/T:30% as deposit and 70% balance after get copy of B/L.

2:L/C (cannot for branded bearings.)

3:Western Union

4:Paypal

5:Discuss together between buyer and supplier.
