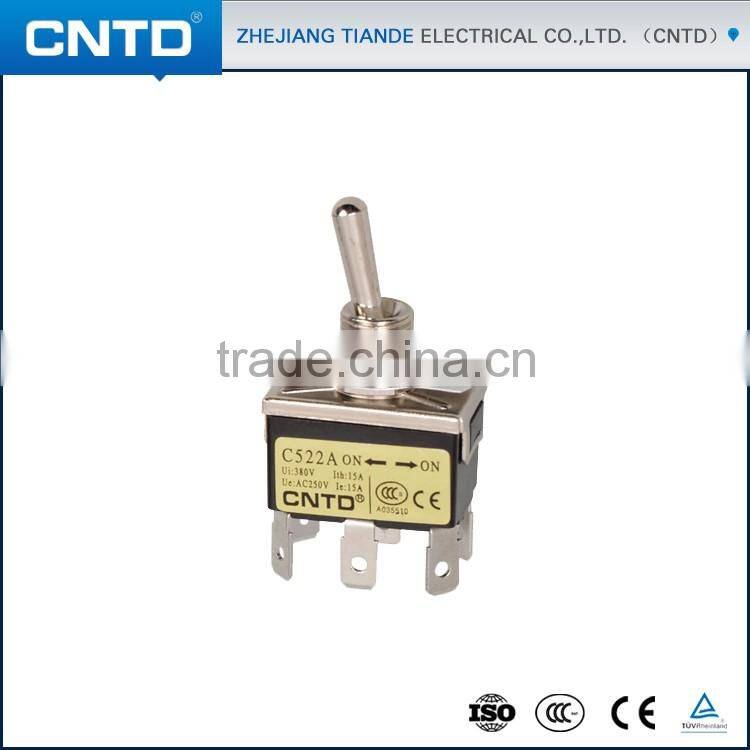

CNTD Mini Toggle Switch 15A 250V ON-ON Waterproof Toggle Switch C522A
- 50000 Piece / Pieces per Month
- Ningbo/Shanghai Port China
- T/T Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CNTD | Model Number: | C522A |
Protection Level: | IP65 | Operating Temperature: | -5~+80C (with no icing) | Max. Current: | 15A |
Max. Voltage: | 250V |
Product Description
CNTD Mini Toggle Switch 15A 250V ON-ON Waterproof Toggle Switch C522A
Features
Available current is 10A and 15A
Movement way has fixed type and auto-return type (both single-throw and double-throw can return).
The terminal block has screw terminal and tab terminal
Rainproof , water-proof and oil-proof cap, it is suitable for full series product
Mounting hole: Φ12mm

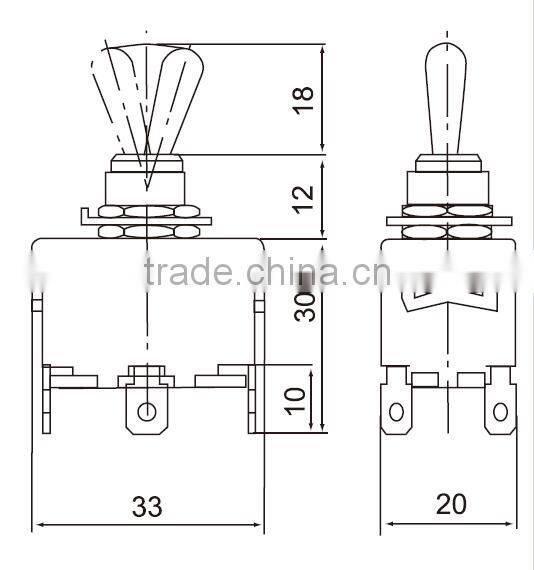

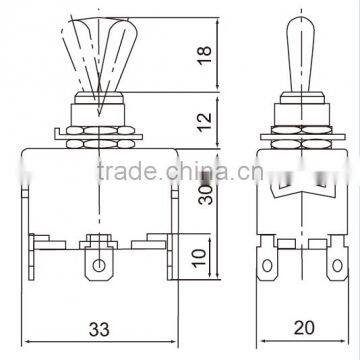

Apperance and Dimension

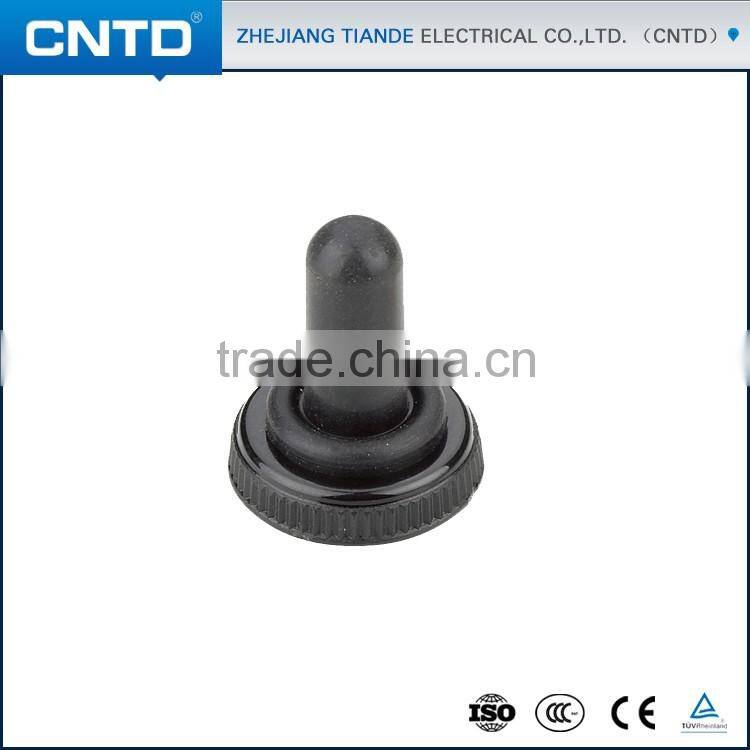

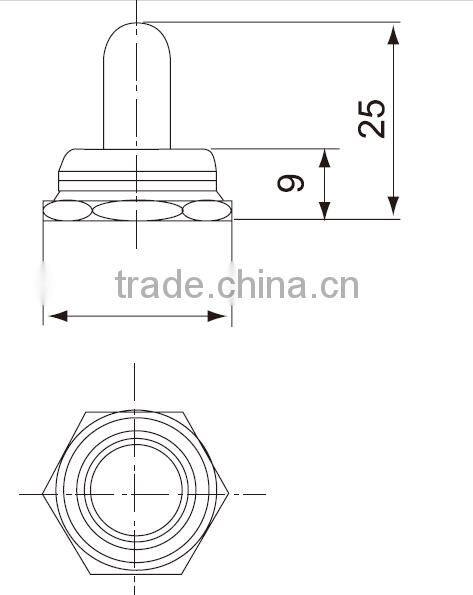

Rainproof cap(TOW)
Rating
Load | Type | AC Rating | DC Rating |
Resistance Load | CO C5 | 10A 250V 15A 125V | 0.4A 250V 0.8A 125V |
15A 250V 20A 125V | 0.5A 250V 0.9A 125V | ||
Inductive Load | CO C5 | 10A 250V 15A 250V | 0.2A 250V 0.4A 125V |
15A 250V 20A 125V | 0.3A 250V 0.5A 125V 15A | ||
Lamp Load | CO C5 | 300W 100V 500W 200V | 30V |
400W 125V 800W 250V | - | ||
Motor Load | CO C5 CO C5 | 200W 125V 300W 250V | 7A 30V |
Characteristic
Contact resistance | 15MΩ max.(initial) |
Insulation resistance | 100MΩ min. (under 500VDC) |
Dielectric strength | 2000VAC, 50/60HZ for 1 minute |
Vibration | 10 to 55HZ, 1.5mm double amplitude |
Ambient temperature | -25℃ to + 80℃ |
Humidity | 85% RH max. |
Life | Mechanical: 500,000 operations min. |
Electrical: 100,000 operations min. |
Destination | Signal | Description |
Type | CO | 10A 250VAC |
COR | 10A 250VAC Spring return | |
C5 | 15A 250VAC | |
C5R | 15A 250VAC Spring return | |
Contact | 11 | Single pole single throw ON-OFF |
12 | Single pole double throw ON-ON | |
13 | Single pole double throw(central OFF) ON-OFF-ON | |
131 | Single pole double throw(central OFF single return) ON-OFF-ON | |
21 | Double pole single throw ON-OFF | |
22 | Double pole double throw ON-ON | |
23 | Double pole double throw(central OFF) ON-OFF-ON | |
231 | Double pole double throw(central OFF single return) ON-OFF-ON | |
Terminal | A B C | Tab terminal Screw terminal Solder terminal |
Tiande Company has passed ISO 9001:2000 quality system authentication,CCC,CE certificates and the German TUV certification. All of our products are strictly according to IEC standard and guaranteed by People's lnsurance Corporation of China (PICC).
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,Tiande insists on developing business with science & technology and researching and developing new products continuously.
1.Thousands of products in stock and ready to ship
2.The most competitive pricing
3.Express,air shipment and sea shipment as per customers' request
4.Putting the customer's needs first,always
5.On call,24 hours a day,7 days a week
Zhejiang Tiande Electrical Co., Ltd. is one of the leading manufacturer in China which specialized in various of limit switches,proximity sensors,optoelectronic switch,micro switches,pushbutton switches,terminal blocks, warning lights etc.Our products applied to automatic controllers, electronic meters,medical facilities, communication equipments, auto&motorbike electrical appliances,household appliances etc.
With more than 15 years' experience in switch field,Tiande company has mature craft,advanced technology and strong technical power,which enable us to have comprehensive ability on researching,developing, designing and prduction,and present obvious advanced ability and profession.
1. Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.
7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.
