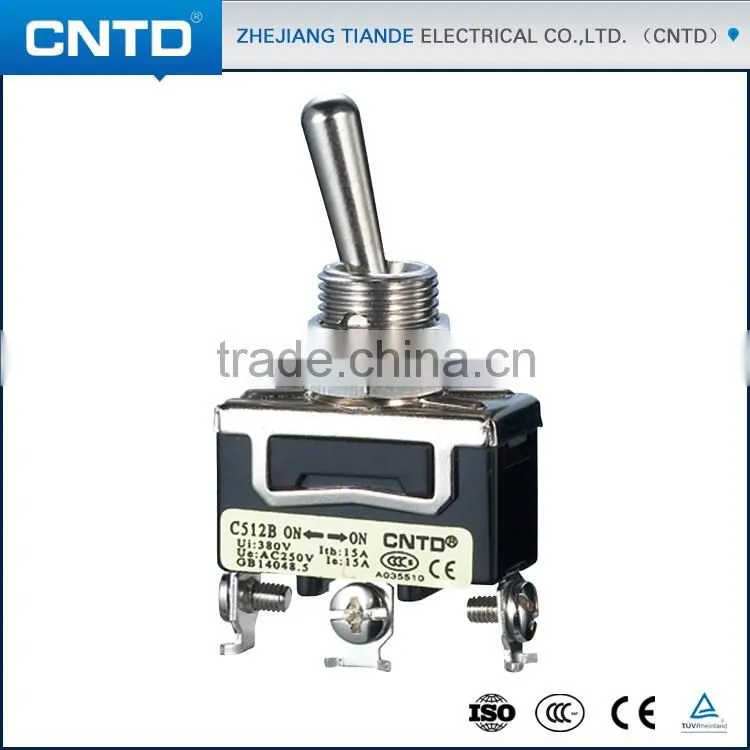

CNTD CE Approved 6ways SPDT ON-ON Waterproof Mini Toggle Switch 3A 250VAC C512B
Features
- Current: 10A and 15A
- Movement way: Fixed type and spring return type
- Terminal block: screw terminal, solder terminal and tab terminal
- Rainproof, waterproof and oilproof cap
- Mounting hole: 12mm
Product Characteristics
| Model No. | C512B |
| Name | Toggle switch |
| Type | 15A 250VAC Fixed type |
| Contact | Single pole double throw ON-ON |
| Terminal | Tab terminal, screw teminal and solder terminal |
| Life | Mechanical:5000,000times/min; Electrical:1000,000times/min |
Insulation resistance |
100mΩ min.(at 500VDC) |
| Dielectric strength |
2000VAC,50/60HZ for 1 minute |
| Vibration | 10-55HZ,1.5mm double amplitude |
| Weight | About 22 to 58g |
| Degree of protection | IP40 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | TUV, CCC,CE,ISO9001 |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability |
We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |

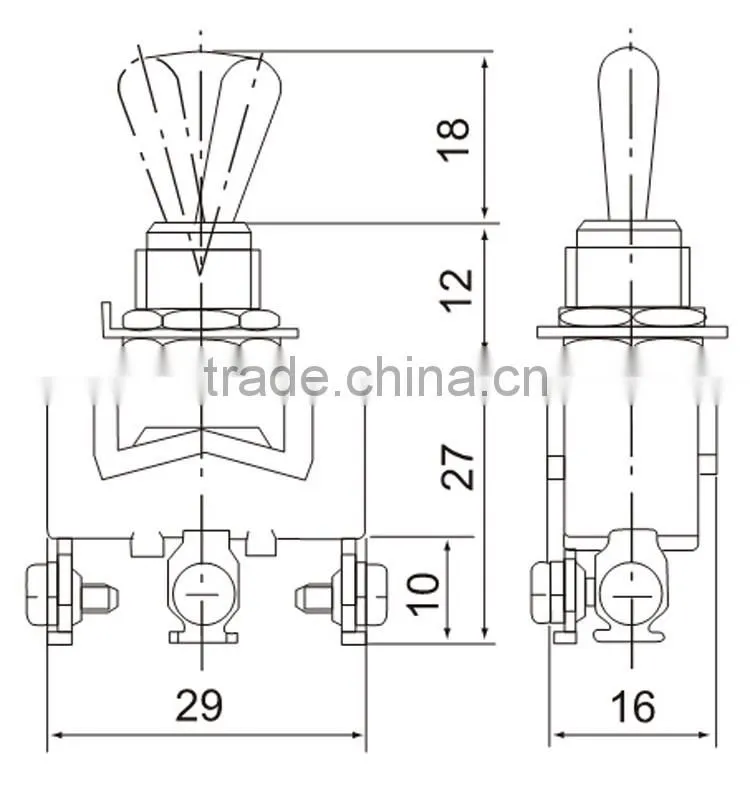

Dimension and Appearance
