CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)

CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A) thumbnail-1
CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A) thumbnail-2
CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A) thumbnail-3
CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A) thumbnail-4
CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A) photo-1
CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A) photo-2

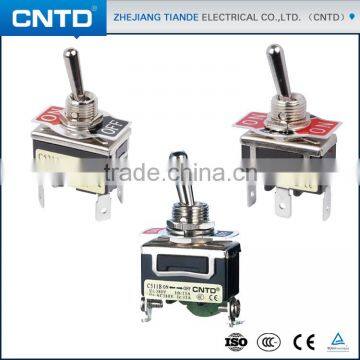

CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A) photo-3

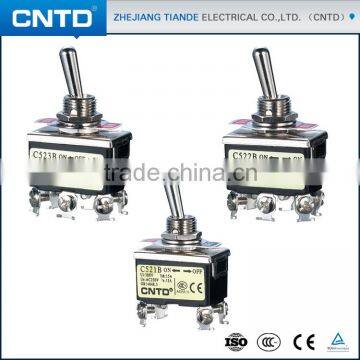

CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A) photo-4
US$ 0.3 - 0.83 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CNTD
Model Number:
C523A
Contact Supplier Request Quote Chat Now
Zhejiang Tiande Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CNTD
Model Number C523A
Max. Current 15A
Max. Voltage 250VAC
Mechanical Life 5000,000 times/min

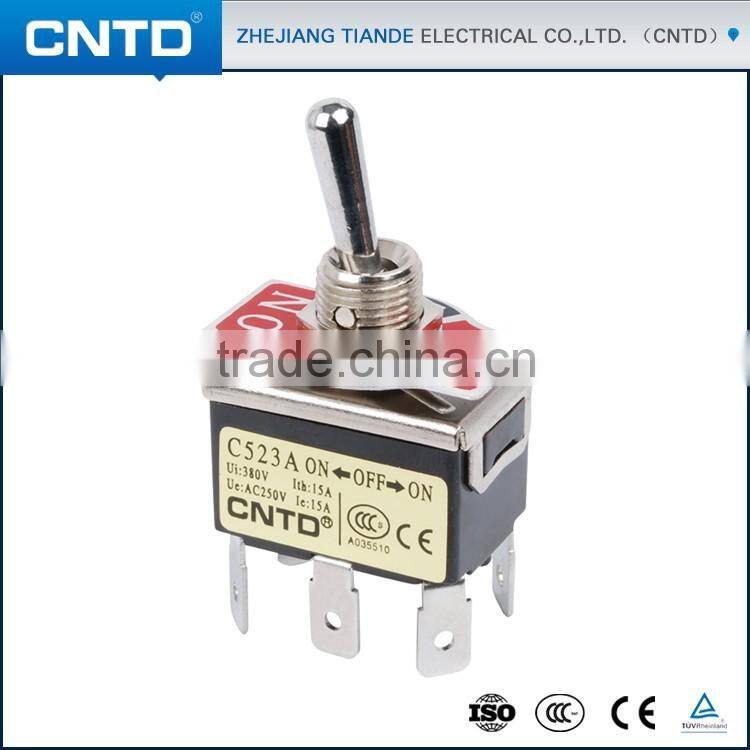

CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)



  CNTD C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)



 Features

  • Current: 10A and 15A
  • Movement way: Fixed type and spring return type
  • Terminal block: screw terminal, solder terminal and tab terminal
  • Rainproof, waterproof and oilproof cap
  • Mounting hole: 12mm



Product Description



Product Characteristics



Model No.  C523A
Name Toggle switch
Type 15A 250VAC Fixed type
Contact Double pole double throw ON-OFF-ON
Terminal Tab terminal, screw teminal and solder terminal
Life Mechanical:5000,000times/min; Electrical:1000,000times/min

Insulation resistance

 100mΩ min.(at 500VDC)
Dielectric strength
 2000VAC,50/60HZ for 1 minute
Vibration 10-55HZ,1.5mm double amplitude
Weight

About 22 to 58g
Degree of protection IP40
Payment term 30% deposit in advance,70% before shipment,100% T/T in advance
Certificate TUV, CCC,CE,ISO9001
Logo       Customized logo with Decal / Frosted / Print are available as request

Design ability

 We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

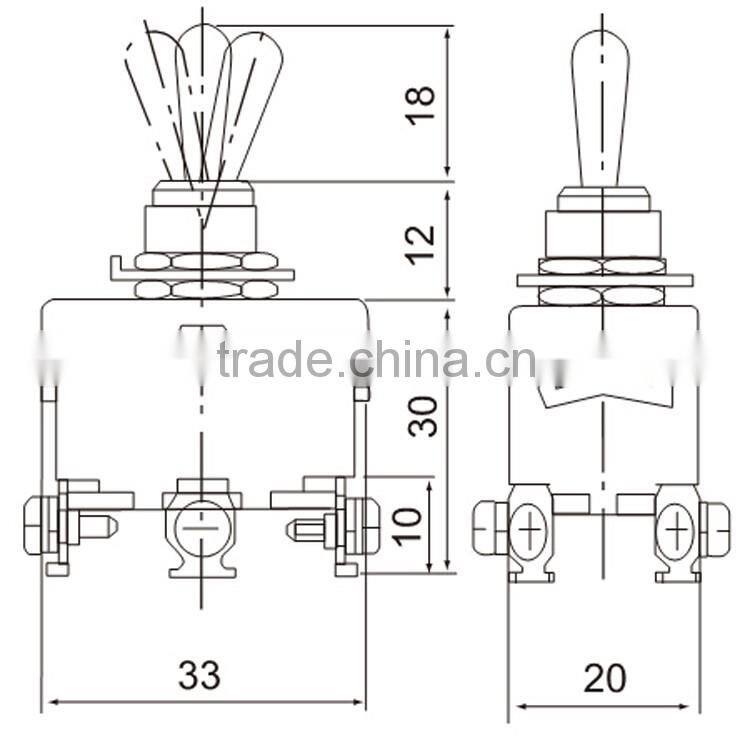

Dimension

 CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)

CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)

You are here:Home>> Toggle switch >> C5 Series





Related Products

CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)





Our Services

  Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.



CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)





Packaging & Shipping
  • Payment terms: 30% deposit in advance, 70% before shipment, 100% T/T in advance
  • Lead time:7-10 working days after payment received
  • Shipping Ways: Express, Air shipment and Sea shipment as per customers' request

CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)



Production Flow

CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)

Company Information

CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)

Certifications

CNTD IP40 Protection C523A Fixed Contact ON-OFF-ON Micro Mini Toggle Switch DPDT Type (C523A)



FAQ

1. Q:  Could i put my own logo on it?

A: Sure,customers' logo can be printed or put on the items.
2. Q:  How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.

4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided for free.

7. Q: How long to make a sample?
A: Fast delivery If we have stock.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.



 Over 15 years OEM experience, we can provide professional solutions for customers.
