TAPER ROLLER BEARING DETAILS
Tapered roller bearing can be separated from the inner ring with roller cage components together and the outer ring can be installed separately. As amended by the roller and raceway contact at the contact line can reduce the stress concentration. The tapered roller bearing can withstand large radial and axial load. Tapered roller bearings can only pass one-way axial load, axial load in the opposite direction to pass on another with symmetrical installation of tapered roller bearing.
Tapered roller bearings are widely used in automotive, mill, mining, metallurgy, plastics machinery and other industries.
1. Taper roller bearings are the largest amount of single row circular cone roller bearings.
2. Single row circular cone roller bearings, which formed a circle and a group of tapered roller
3. Double row circular cone roller bearing outer ring (or in) is a whole.
TAPER ROLLER BEARING 32310 DESCRITION
| Strusture | Taper roller bearing |
| Type | roller bearing |
| Bore size | 50 mm |
| Outside Diameter | 110mm |
| Thickness |
27 mm |
| Weight | 1.2 kg |
| Model number | 32310 |
| Precision | P0-P6 |
| Seals type | Not |
| Clearance | C0,C2,C3,C4,C5 |
| Vabration | Z1,Z2,Z3,Z4 |
| Number row | single row |
| Application | chemical, semi-conductor,valve&pump,food,electonic |
NON-STANDARD BALL BEARING SIZE:
| taper roller bearing 32200 series | taper roller bearing 31300 series | ||||||
| No. | d | D | T | No. | d | D | T |
| 32203 | 17 | 40 | 17.25 | ||||
| 32204 | 20 | 47 | 19.25 | 31304 | 20 | 52 | 16.25 |
| 32205 | 25 | 52 | 19.25 | 31305 | 25 | 62 | 18.25 |
| 32206 | 30 | 62 | 21.25 | 31306 | 30 | 72 | 20.75 |
| 32207 | 35 | 72 | 24.25 | 31307 | 35 | 80 | 22.75 |
| 32208 | 40 | 80 | 24.75 | 31308 | 40 | 90 | 25.25 |
| 32209 | 45 | 85 | 24.75 | 31309 | 45 | 100 | 27.25 |
| 32210 | 50 | 90 | 24.75 | 31310 | 50 | 110 | 29.25 |
| 32211 | 55 | 100 | 26.75 | 31311 | 55 | 120 | 31.5 |
| 32212 | 60 | 110 | 29.75 | 31312 | 60 | 130 | 33.5 |
| 32213 | 65 | 120 | 32.75 | 31313 | 65 | 140 | 36 |
| 32214 | 70 | 125 | 33.25 | 31314 | 70 | 150 | 38 |
| 32215 | 75 | 130 | 33.25 | 31315 | 75 | 160 | 40 |
| 32216 | 80 | 140 | 35.25 | 31316 | 80 | 170 | 42.5 |
| 32217 | 85 | 150 | 38.5 | 31317 | 85 | 180 | 44.5 |
| 32218 | 90 | 160 | 42.5 | 31318 | 90 | 190 | 46.5 |
| 32219 | 95 | 170 | 45.5 | 31319 | 95 | 200 | 49.5 |
| 32220 | 100 | 180 | 49 | 31320 | 100 | 215 | 56.5 |
| taper roller bearing 30200 series | taper roller bearing 3200 series | ||||||
| No. | d | D | T | No. | d | D | T |
| 30203 | 17 | 40 | 13.5 | 32004 | 20 | 42 | 15 |
| 30204 | 20 | 47 | 15.5 | 32005 | 25 | 47 | 15 |
| 30205 | 25 | 52 | 16.5 | 32006 | 30 | 55 | 17 |
| 30206 | 30 | 62 | 17.5 | 32007 | 35 | 62 | 18 |
| 30207 | 35 | 72 | 18.5 | 32008 | 40 | 68 | 19 |
| 30208 | 40 | 80 | 20 | 32009 | 45 | 75 | 20 |
| 30209 | 45 | 85 | 21 | 32010 | 50 | 80 | 20 |
| 30210 | 50 | 90 | 22 | 32011 | 55 | 90 | 23 |
| 30211 | 55 | 100 | 23 | 32012 | 60 | 95 | 23 |
| 30212 | 60 | 110 | 24 | 32013 | 65 | 100 | 23 |
| 30213 | 65 | 120 | 25 | 32014 | 70 | 110 | 25 |
| 30214 | 70 | 125 | 26.5 | 32015 | 75 | 115 | 25 |
| 30215 | 75 | 130 | 27.4 | 32016 | 80 | 125 | 29 |
| 30216 | 80 | 140 | 28.5 | 32017 | 85 | 130 | 29 |
| 30217 | 85 | 150 | 31 | 32018 | 90 | 140 | 32 |
| 30218 | 90 | 160 | 33 | 32019 | 95 | 145 | 32 |
| 30219 | 95 | 170 | 35 | 32020 | 100 | 150 | 32 |
| 30220 | 100 | 180 | 37.5 | 32021 | 90 | 140 | 32 |
Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearingcorporation responsible for oversea marketing.
Our plant shandong UMT has been working in the filed of bearing design and
manufacturing for more than 10years now is taking a leading position in mainland china.
Our plant has more than 500 employees , including 30 bearing professional techincians;
more than 600 new bearing items can be completed each year.
we can produce all kinds of bearing as customer's requirement.

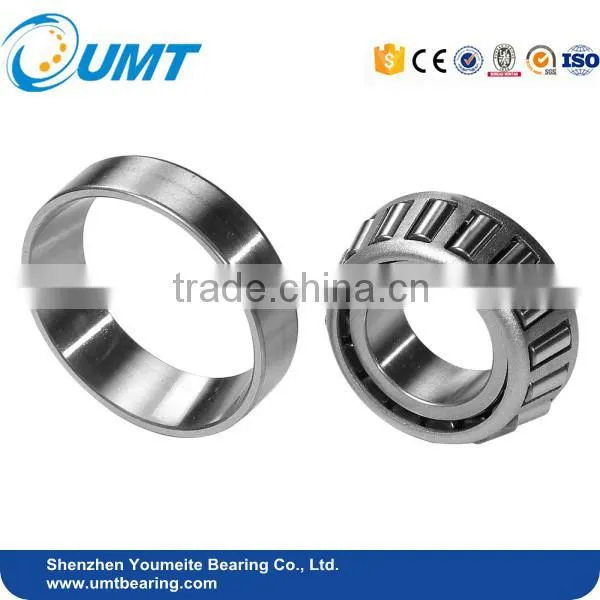

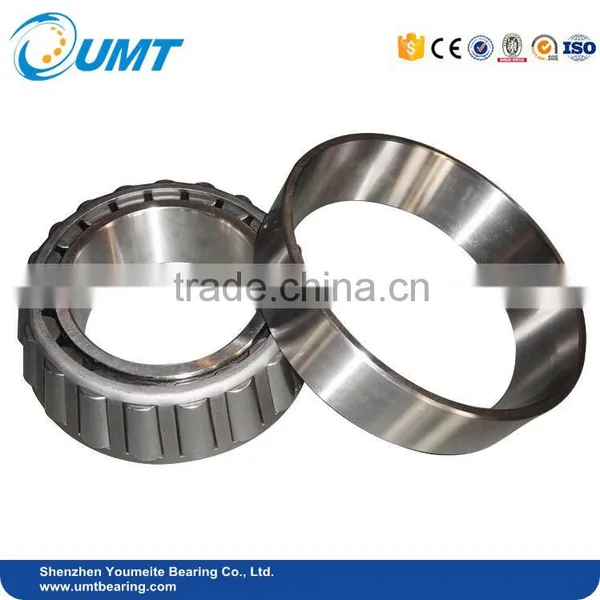

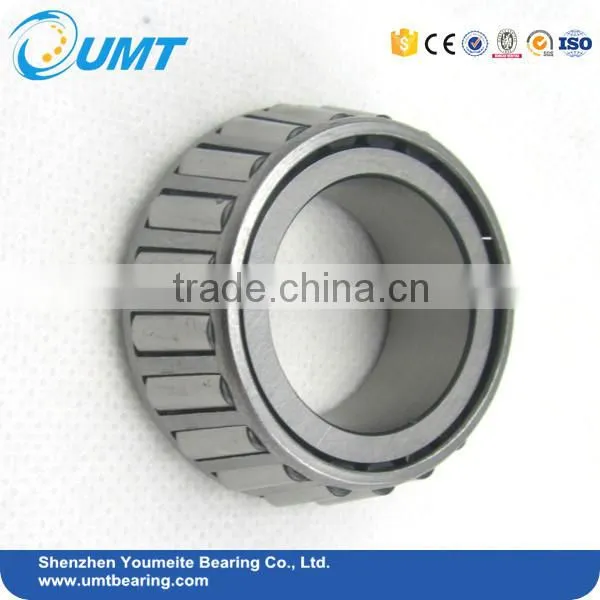

TAPER ROLLER BEARING PICTURE
MAKING A BEARING PROCESS
OUR CERTIFICATE
Q : Why choose us ?
a.With background of about 10 years
b.Strict Inspection ,and the best quality price with reasonable price bearings provided .
c.OEM service provided.
d. Delivery products from our factory warehouse , delivery time is short .
e. After sale service at any time .
Q: What kind of bearing you producted ?
main products are deep groove ball bearing , spherical roller bearings , tapered roller bearing ,thrust ball bearing ,others could be special made for you .
Q:What brand you could provided ?
A: our brand is HQBF , we also offer OEM service .
Q:Your product certifications ?
A: ISO 9001:2008 , ISO 9001:2000
Q: Delivery Time ?
A: 7-15 days ,also base on your order quantity
Q: Payment Terms ?
A: Usually we accept T/T ,and also accept L/C ,western union ,and order online
Q: Loading Port ?
A: Shenzhen China , as your appointed .
