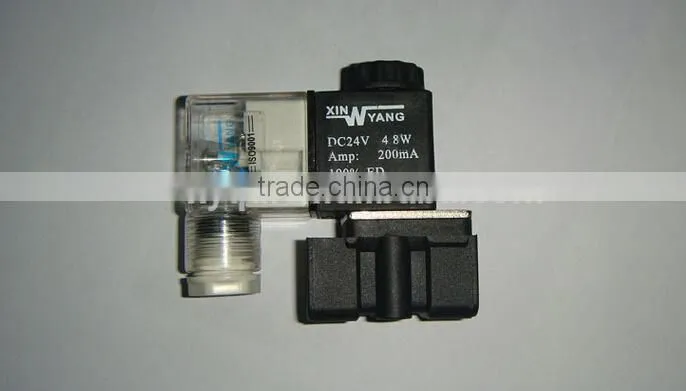

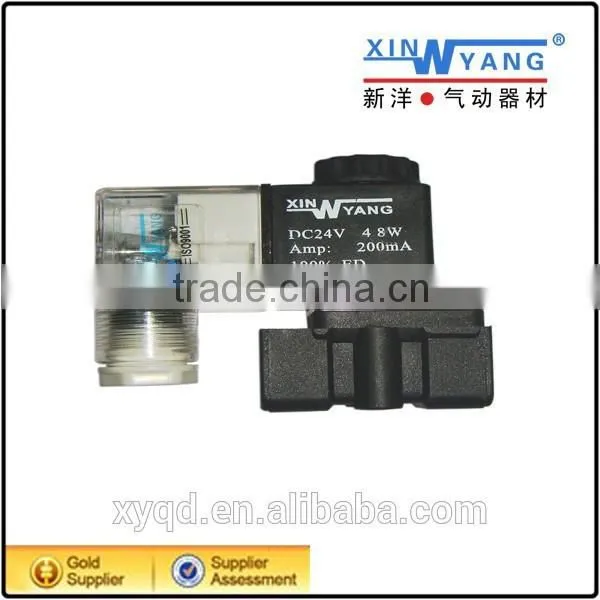

2P Series Plasic Mini Solenoid Valve 1/8" & 1/4"
It is small in size, large flow, beautiful appearance, superior performance, change tropism is good and has a long life. It can be integrated installation, adapted to the field of mechanical and electrical integration. There are a variety of specifications available for selection.
The normal use of 10 million times above life.
low power consumption, quick response.
Can work long time no damage
*Ordering code of solenoid valve*
| 2P | - | 025 | - | 06 | W | - | V | - | AC110V |
| 2/2 Way | Orifice Size | Port Size | Connet with wire | Sealing Material | Standard Voltage | ||||
| 025:2.5mm | 06:1/8" | Blank:Standard connector | Blank:NBR | DC12V | |||||
| 08:1/4" | W:Lead wire type | V:VITON | DC24V | ||||||
| AC24V | |||||||||
| AC110V 50HZ/60HZ | |||||||||
| AC220V 50HZ/60HZ | |||||||||
| AC380V 50HZ/60HZ | |||||||||
*Specification of solenoid valve*
| Moderl | 2P025-06 | 2P025-08 | 2P025-06A | 2P025-08A |
| Motion type | direction motion | |||
| Function | Normally colse | |||
| Orifice Size | 2.5mm | 2.5mm | ||
| Cv value | 0.23 | 0.23 | ||
| Port size | 1/8'' | 1/4'' | 1/8'' | 1/4'' |
| Working pressure | 0-0.7 Mpa | |||
| Max Pressure Resistance | 1.05 Mpa | |||
| Working temperature | -5-80 degree | |||
| Power consumption | AC 7VA/50Hz 9VA/50Hz DC6W | AC 5VA/50Hz DC 5.5W | ||
| Body material | engineering plastic | |||
| Sealing material | NBR, EPDM, VITON | |||

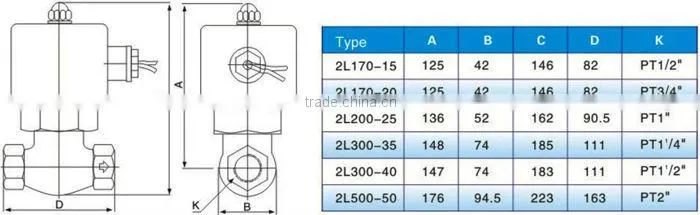

*Out size of solenoid valve*

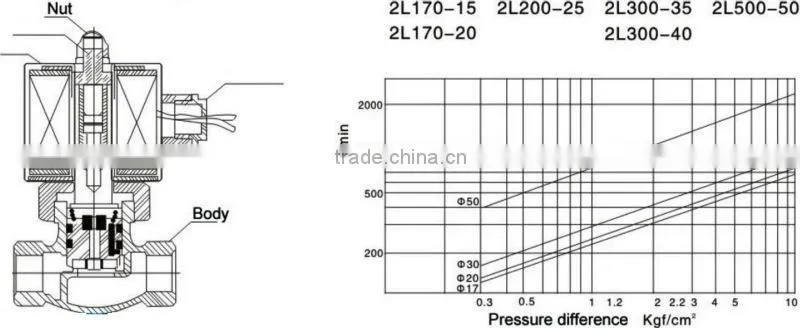

*Inner structure and main parts of solenoid valve*
Why to choose us?
1)We have own factory which has more than 150 employees.We not only have advanced processing equipment,but also equipped with a consummate testing facilities and strong technical force.
2)We have sufficient stock for your purchase.
3)Our products packed with solid carton and wooden case.
* Contacts *
Any question please contact us by mail, skype, trademanager or other ways.
Wuhan Xin Li Te Automation Engeneering Co.,Ltd.
