Home > Industrial Equipment & Components > Bearing > Spherical Roller Bearing > F 23136CA/W33 ,241/560 Double Row Spherical Roller Bearing

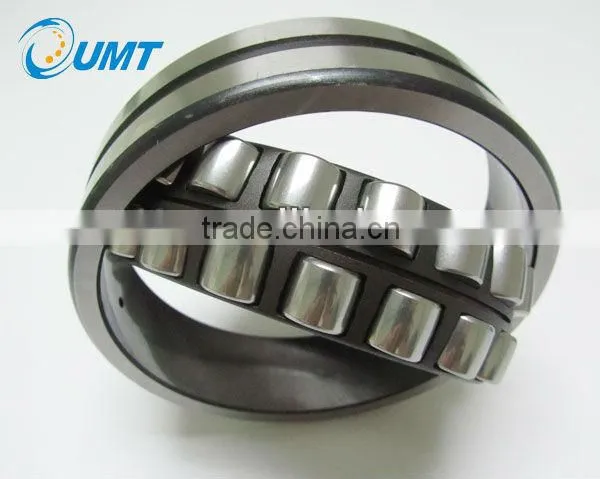

F 23136CA/W33 ,241/560 Double Row Spherical Roller Bearing

F 23136CA/W33 ,241/560 Double Row Spherical Roller Bearing thumbnail-1
F 23136CA/W33 ,241/560 Double Row Spherical Roller Bearing photo-1
US$ 1 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
UMT
Bore Size:
180,
Outside Diameter:
300,
Contact Supplier Request Quote Chat Now
Shenzhen Youmeite Bearings Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name UMT
Bore Size 180,
Outside Diameter 300,
Model Number 23136
Precision Rating ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4
Seals Type open
Number of Row Double Row
Place of Origin Sweden

Spherical Roller Bearing

Bearing of this type has two rows of spherical rollers between the spherical raceway in the outer ring and two inner rings raceways inclined at an angle to the bearing axis. According to the difference of the bearing internal structure, there are five types of cages: CA,MA,CC,E and CTN1.Due to the arc center of the raceways in the outer ring and the bearing center are in the same direction, as a result, shaft flexing and misalignment of the bearing seats are compensated.



23136CA/W33 ,241/560 double row Spherical Roller Bearing



F 23136CA/W33 ,241/560 double row Spherical Roller Bearing



Our Features:

                                                                 *  Machining facility for special sizes of bearing,

                                                                 *  Free sample testing available,

                                                                 *  Low noise and no friction for bearing,

                                                                 *  High accuracy, High speed,

                                                                 *  large in stock, quick delivery,

                                                                 *  Excellent and high quality control with our bearing,

                                                                 *  Small order accepted,

                                                                 *  Customers' drawing or samples accepted.


 Product description:

           23136CA/W33 ,241/560 double row Spherical Roller Bearing
Model Number 23136
Structure Spherical, roller bearing
Type roller
Brand Name UMT
Inside Diameter 180mm
Outside Diameter 300mm
Width 96mm
Net weight 27.1kg
Seals Type open
Number of Row Double Row
Place of Origin Sweden
Material Chrome steel, Stainless steel
Cage Brass, Steel, Nylon
Vibration Level V1, V2, V3
Clearance C0, C1, C2, C3, C4, C5 etc.
Precision Rating P0, P6, P5, P4, P2
Hardness 59-63HRC
Service OEM or original brand
Sample available Yes
Manufacturer Yes
Quality guaranteed Yes
Certificate ISO9001:2008, ISO/TS16949
Application/Function heavy machinery (e.g. construction and mining machines), rolling mills, gear boxes, shaker screens, etc.
Other Service Design service, Buyer label service
Packaging Details Industrial Packing, Individual Boxed Packing, or OEM
Delivery Detail 2-7 days after receiving the payments or deposit







The following products are available:

Deep groove ball bearing,

Self-aligning ball bearing,

Thrust ball bearing,

Angular contact ball bearing,

Thrust roller bearing,

Taper roller bearing,

Needle roller bearing,

Spherical roller bearing,

Cylindrical roller bearing,

Linear bearing,

Pillow block bearing,

Hub bearing,

Joint bearing,

Rod end bearing,

Slewing bearing.



Model list for example about UMT other bearing:

F 23136CA/W33 ,241/560 double row Spherical Roller Bearing

thrust ball bearing

F 23136CA/W33 ,241/560 double row Spherical Roller Bearing

angular contact ball bearing

F 23136CA/W33 ,241/560 double row Spherical Roller Bearing

deep groove ball bearing

F 23136CA/W33 ,241/560 double row Spherical Roller Bearing

hub bearing

F 23136CA/W33 ,241/560 double row Spherical Roller Bearing

pillow block bearing

F 23136CA/W33 ,241/560 double row Spherical Roller Bearing

Rod end bearing



UMT packing:

F 23136CA/W33 ,241/560 double row Spherical Roller Bearing



F 23136CA/W33 ,241/560 double row Spherical Roller Bearing

 UMT Workshop pictures:





F 23136CA/W33 ,241/560 double row Spherical Roller Bearing



spherical roller bearing| self-aligning roller bearing|  spherical roller bearing| self-aligning roller bearing|  spherical roller bearing| self-aligning roller bearing|  spherical roller bearing| self-aligning roller bearing|  spherical roller bearing| self-aligning roller bearing|  spherical roller bearing| self-aligning roller bearing|  spherical roller bearing| self-aligning roller bearing|  spherical roller bearing| self-aligning roller bearing|
