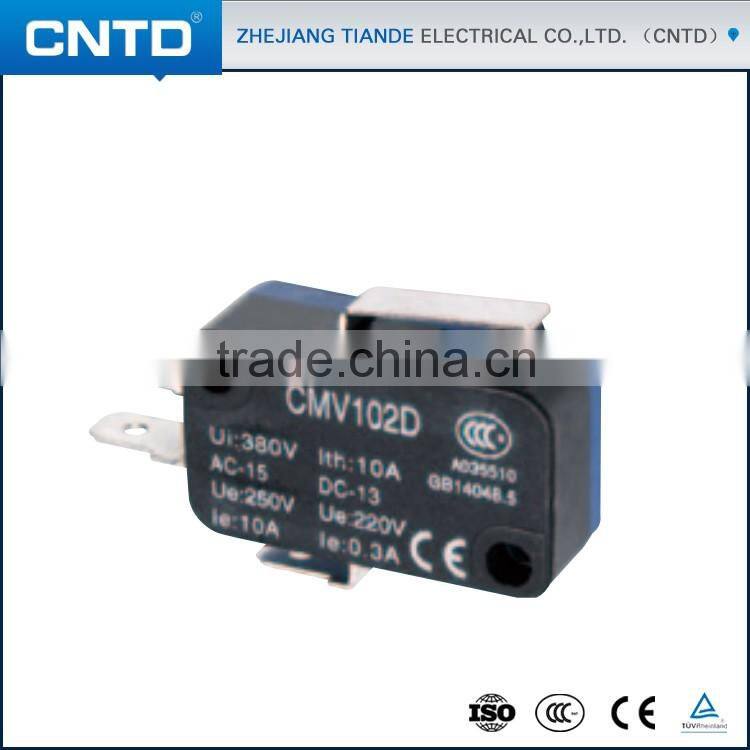

CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D

CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D photo-1
CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D photo-2
CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D photo-3
CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D photo-4
CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D photo-5
CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D photo-6
US$ 0.1 - 0.31 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CNTD
Model Number:
CMV-102D
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name CNTD
Model Number CMV-102D
Protection Level IP40
Operating Temperature -5~+65C (with no icing)
Max. Current 10A
Max. Voltage 250V

CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D

CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D



Product Details

Features

     Various actuators and terminal types are available for choice

     Fast action,long life,reliable and stabilize

     Various rating are available for choice

     CE,CCC, TUV approval

     Compact design

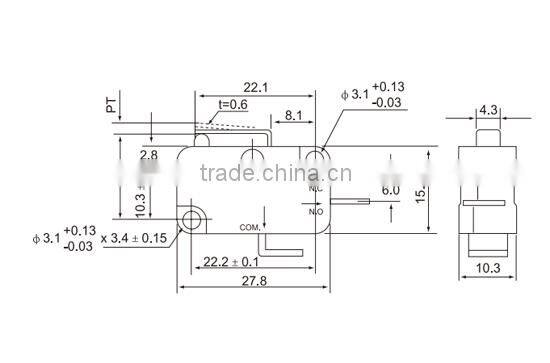

Appearance and Dimension

                             CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D                            CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D

You are here:Home>> Micro Switch >> CMV Miniature Micro Switch



Product Description

Product characteristics



Model No. CMV-102D
NameMicro switch
Operation speed0.01mm-1m/sec
Operating frequencyMechanical: 240times/minute, Electrical: 20 times/minute
Contact resistance15mΩ max.(initial value)
Insulation resistance100mΩ min.(at 500VDC)

Dielectric strength

1000VAC,50/60HZ for 1 minute between terminals of the same polarity

1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts

1500VAC,50/60 HZ for 1 minute between each terminal and ground
Vibration10-55HZ,1.5mm double amplitude

Shock

Mechanical durable:1000m/Sec2;Malfunction:300m/Sec2(about 30G'S)

Life

Mechanical: 10,000,000 operations above;Electrical: 500,000 operations above

Weight

About 22 to 58g

Degree of protectionIP40
Payment term30% deposit in advance,70% before shipment,100% T/T in advance
CertificateTUV, CCC,CE,ISO9001
Logo      Customized logo with Decal / Frosted / Print are available as request

Design ability

We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)



Related Products



CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D



Certifications

      Tiande Company has passed ISO 9001:2000 quality system authentication,CCC,CE certificates and the German TUV certification. All of our products are strictly according to IEC standard and guaranteed by People's lnsurance Corporation of China (PICC).

CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D

Our Services

    Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.

CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D

Production Flow

      Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,Tiande insists on developing business with science & technology and researching and developing new products continuously.

CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102DCNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D

Packaging&Shipping

1.Thousands of products in stock and ready to ship

2.The most competitive pricing

3.Express,air shipment and sea shipment as per customers' request

4.Putting the customer's needs first,always

5.On call,24 hours a day,7 days a week

CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D

Company Information

      Zhejiang Tiande Electrical Co., Ltd. is one of the leading manufacturer in China which specialized in various of limit switches,proximity sensors,optoelectronic switch,micro switches,pushbutton switches,terminal blocks, warning lights etc.Our products applied to automatic controllers, electronic meters,medical facilities, communication equipments, auto&motorbike electrical appliances,household appliances etc.

    With more than 15 years' experience in switch field,Tiande company has mature craft,advanced technology and strong technical power,which enable us to have comprehensive ability on researching,developing, designing and prduction,and present obvious advanced ability and profession.

CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D

CNTD Factory Supply 10Amp 250Volt Short Level Arm 3 Pins Micro Limit Switch CMV-102D

FAQ

1. Q:  Could I put my own logo on it?

A: Sure,customers' logo can be printed or put on the items.
2. Q:  How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.

4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.

7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.
