Home > Products > Micro Switch > CNTD New China Products For Sale 1NO 1NC Waterproof Micro Switch CM-1706
CNTD New China Products For Sale 1NO 1NC Waterproof Micro Switch CM-1706
- 50000 Piece / Pieces per Month
- Ningbo/Shanghai Port China
- T/T Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CNTD | Model Number: | CM-1706 |
Protection Level: | IP40 | Operating Temperature: | -5~+80C (with no icing) | Max. Current: | 15A, 15A |
Max. Voltage: | 250V, 250VAC |
Product Description

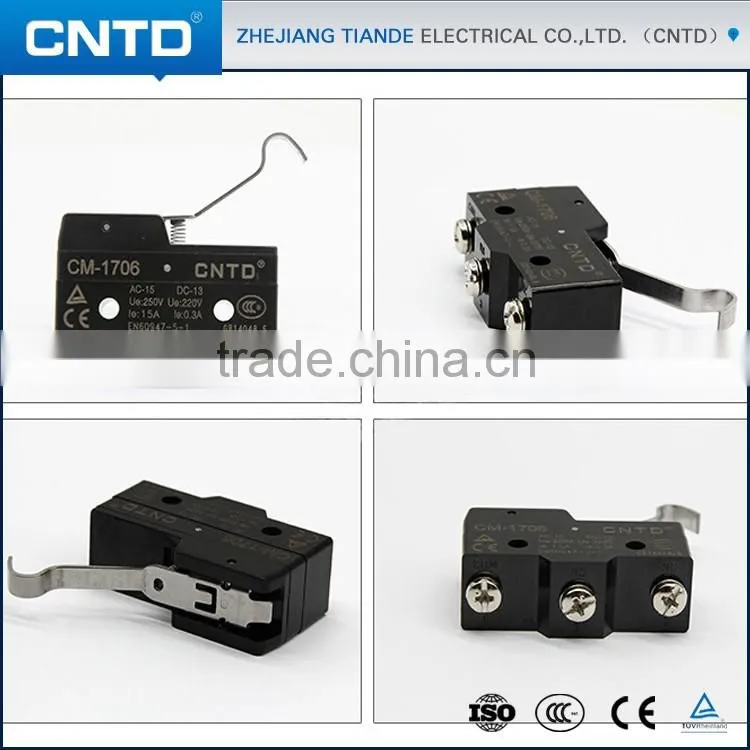

CNTD New China Products For Sale 1NO 1NC Waterproof Micro Switch CM-1706
Features
Various of actuators, action position is adjustable (such as CM1701)
High switch on and off capacity(15A)
High accuracy
Wide range of operation speed
Each type of CM series has solder terminal, screw terminal and tab terminal are selective
Add A for solder terminal, add C for tab terminal, blank for screw terminal

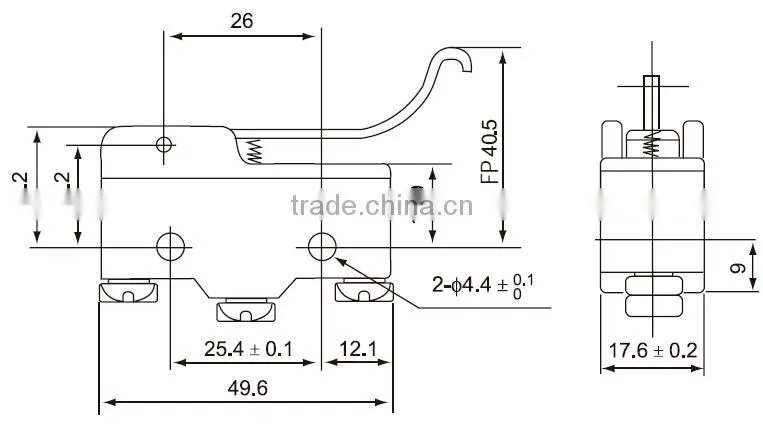

Appearance and Dimension
Contact Form
You are here:Home>> Micro Switch >> ABS Plastic Micro Switch CM Series
Ratings
Rated Voltage (V) | Noninductive Load (A) | Inductive Load (A) | Inrush Current | |||||||
Resistance Load | Lamp Load | Inductive Load | Motor Load | |||||||
NC | NO | NC | NO | NC | NO | NC | NO | NC | NO | |
125VAC 250VAC 500VAC | 15 15 3 | 3 2.5 1.5 | 1.5 1.25 0.75 | 15 15 2.5 | 5 3 1.5 | 2.5 1.5 0.75 | 30 max. | 15 max. | ||
8VDC 14VDC 30VDC 125VDC 250VDC | 15 15 6(2) 0.4 0.2 | 3 3 3 0.4 0.2 | 1.5 1.5 1.5 0.4 0.2 | 15 10 5 0.05 0.03 | 5 5 5 0.05 0.03 | 2.5 2.5 2.5 0.05 0.03 |
Characteristics
Operation speed | 0.01mm-1m/sec |
Operating frequency | Mechanical: 240 operations/min. |
Electrical: 20 operations/min. | |
Contact resistance | 15mΩ max. (initial value) |
Insulation resistance | 100mΩ min. (at 500VDC) |
Dielectric strength | 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
1500VAC, 50/60 HZ for 1 minute between current carrying and non-current-carrying metal parts | |
1500VAC, 50/60 HZ for 1 minute between each terminal and ground | |
Vibration frequency | 10-55HZ,1.5mm double amplitude |
Shock | Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) |
Ambient temperature | General purpose type: -25℃ to +80℃, Sealed type: -15℃ to +80℃ |
Humidity | General purpose type: 85% RH max., Sealed type: 95% RH max. |
Life | Mechanical: 20,000,000 operations min. Electrical: 500,000 operations min. |
Weight | About 22g to 58g |
Degree of protection | IP40 |
Operating characteristics
Models | CM1300 | CM1301 | CM1303 | CM1305 | CM1306 | CM1307 | CM1308 | CM1309 | CM1701 | CM1702 | CM1703 | CM1704 | CM1705 | CM1743 |
OF Max. | 350g | 300g | 300g | 350g | 350g | 350g | 350g | 350g | 70g | 160g | 100g | 160g | 10g | 160g |
RF Min. | 114g | 50g | 50g | 114g | 114g | 114g | 114g | 114g | 14g | 28g | 22g | 42g | 3g | 42g |
PT Max. | 0.4mm | 4mm | 4mm | 0.4mm | 0.4mm | 0.4mm | 0.4mm | 0.4mm | 10mm | 5mm | 7.1mm | 2.7mm | 20mm | 2.7mm |
OT Min. | 0.13mm | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 5.5mm | 3.58mm | 3.58mm | 5.6mm | 2mm | 4mm | 2.4mm | 5.6mm | 2.4mm |
MD Max. | 0.05mm | 1.3mm | 1.3mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 1.27mm | 1mm | 1.02mm | 0.5mm | 3mm | 0.5mm |
FP Max. |
| 20.6mm | 31.8mm |
|
|
|
|
| 28.2mm | 24.8mm | 36.5mm | 32.5mm |
| 43.6mm |
OP(mm) | 15.9 ±0.4 mm | 17.4 ±0.8 mm | 28.6 ±0.8 mm | 28.2 ±0.5 mm | 21.5 ±0.5 mm | 21.50. ±8 mm | 33.4±1.2 mm | 33.4±1.2 mm | 19 ±0.8 mm | 19 ±0.4 mm | 30.2 ±0.8 mm | 30.2 ±0.4 mm | 19±0.4 mm | 43.1 ±0.8 mm |
